AKTAKOM AWG-4110 signal generator

AKTAKOM AWG-4110 signal generator

28.03.2022

AKTAKOM AWG-4110 is a signal generator with 10 MHz maximum generation frequency which is designed using direct digital synthesis (DDS) technology.

This signal generator model is designed using direct digital synthesis (DDS) technology which ensures high frequency accuracy, low distortion, fast switching from one frequency to another and a number of other high metrological parameters.

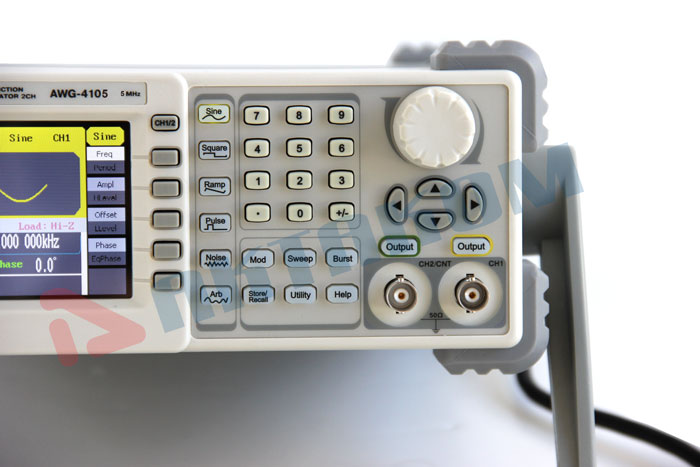

The front panel of the generator keeps the buttons to quickly recall five standard waveforms: sine, rectangular, triangular, pulse and noise. In addition further 48 types of special waveforms can be generated through the menu.


AKTAKOM AWG-4110 generator has 2 almost identical channels. However there are still some differences between them: in CH1 the maximum amplitude of the generated signal can reach 20 V with an open circuit (10V, 50Ω impedance), and in CH2 the maximum amplitude can be 6 V.

The use of DDS technology allows user to achieve maximum resolution when setting the frequency in both channels (1 μHz), harmonic coefficient of the sine signal is -55 dBc and the phase noise during the tune-off of 10 kHz doesn’t exceed - 108 dBc/Hz.

AKTAKOM AWG-4110 generator has wide modulation capabilities: AM, FM, PM, ASK, FSK, PWM.

This generatore has a built-in 6-digit frequency meter with automatic and manual range selection (up to 200 MHz) with the ability to measure: frequency, positive/negative pulse duration and duty factor.

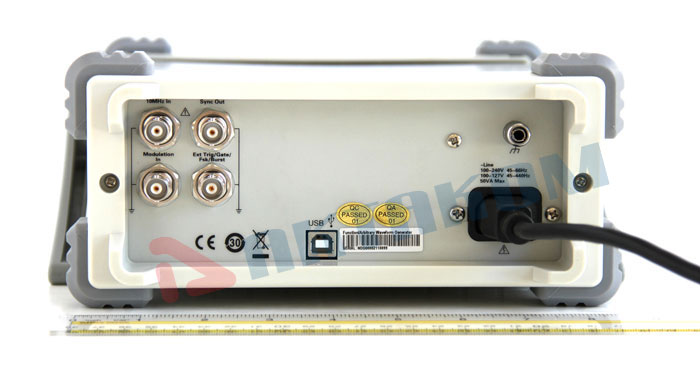

AWG-4110 generator may synchronize with other devices due to the presence of synchronization inputs.


Another feature is 3.5” TFT-LCD which supports the waveform display that makes the generators controlling more simple.

Check the page of AKTAKOM AWG-4110 generator for more details.
