AKTAKOM AWG Manager Application Software
This software in its standard representation doesn’t have any data medium. It can be downloaded from www.tmatlantic.com after your device registration by entering its serial number. You may download the software files after the invoice payment (you will receive the code for download).It’s recommended to make a timely backup copy of the received files. The loss of the software or the download code will cause extra payment. This software can be recorded to a CD. CD recording and its delivery will also cost some extra payment.
AKTAKOM AWG Manager Application Software allows to create a waveform and send data from a PC to a waveform generator.

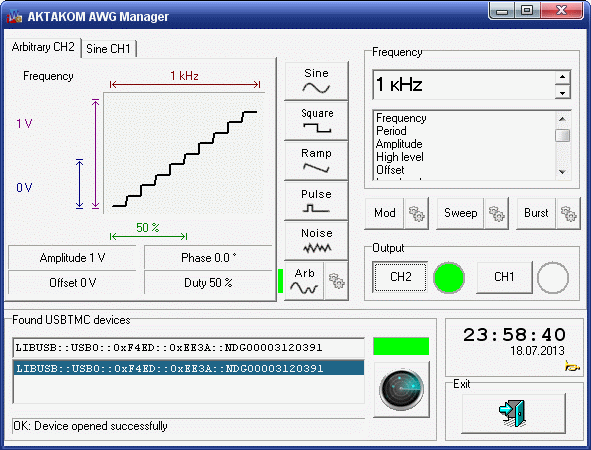

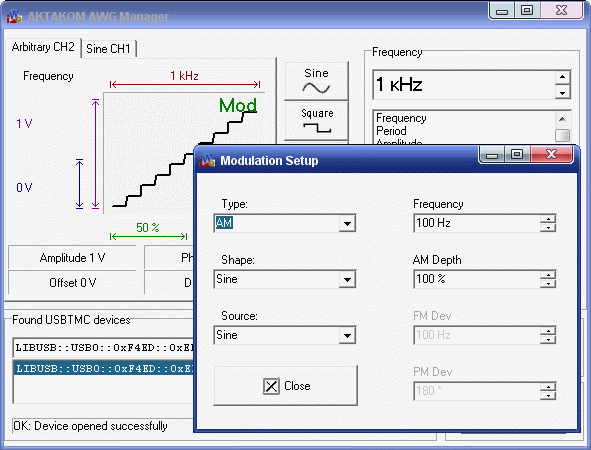

The "CH2/CH1" blocks display the current signal settings by channels similar to the display on the front panel of the device. The buttons on the right allow you to select the signal shape for the selected channel "CH2/CH1". Next is the block for setting the numerical parameters of the signal (frequency, amplitude, etc.). The Mod, Sweep, Burst buttons turn the corresponding modes on and off. Next to these buttons, as well as next to the Arb button (turning on an arbitrary signal shape), there are buttons for calling up additional setup windows: Setting up an arbitrary signal (Arb) Setting up modulation (Mod) Setting up sweeping (Sweep) Setting up bursts (Burst) The "Output" block allows you to turn on and off the channel outputs. The "Found devices" block allows you to connect to the device (when the program is launched, the connection occurs automatically). If necessary, you can select the desired device from several connected to the computer. To the right is the clock block with an alarm clock. The "Exit" button terminates the program. There is a special form editor for setting up an arbitrary signal.
ALL RIGHTS RESERVED. AKTAKOM software is protected under International and Federal Copyright Laws and Treaties. Any unauthorized copy, reprint or use of this material is prohibited. No part of this software may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information storage and retrieval system without express written permission from the author / publisher. Windows, Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Back to the section |
For Windows®
