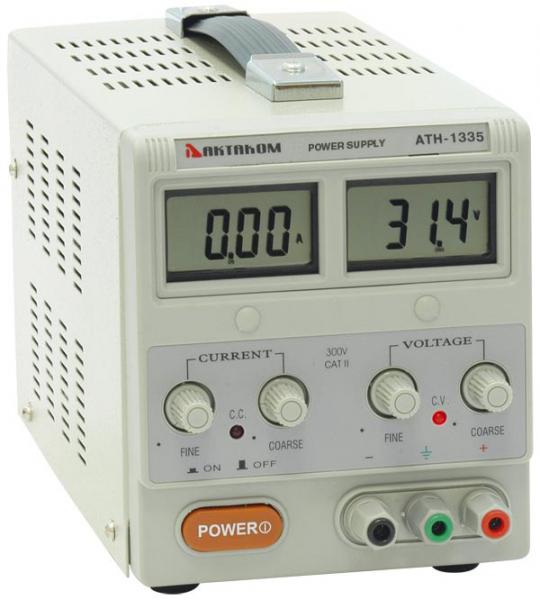

ATH-1335 Power Supply

Power supply with digital indication ideal for test benches, laboratories, schools and repair facilities. Utilizes SMD technology; Single/Dual Output Light and Compact; Output Polarity: Positive and Negative; LED Display shows Voltage and Current value; Low Ripple Voltage Less Than lmVP-P; Overload Protection Circuit; Applicable for School, Production Line, Laboratory and Maintenance. Dimensions: 5.3(w) x 6.3(H) x 11(D) in / 135(w) x l60(H) x 280(D) mm. Weight: 15.4 lb / 7kg.

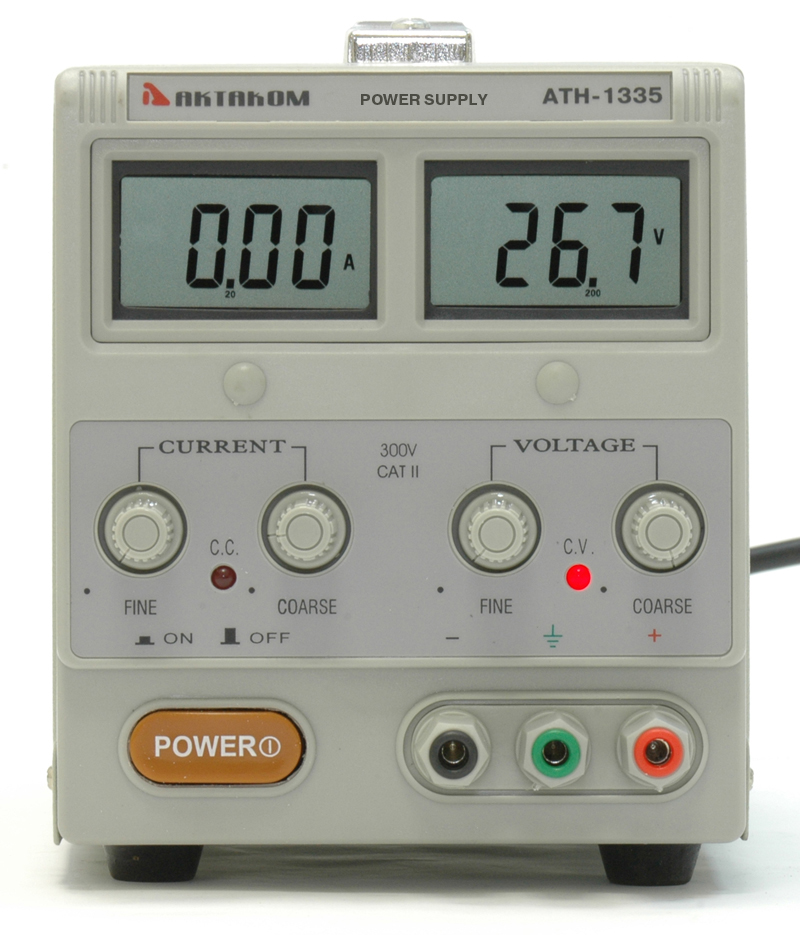

AKTAKOM APS-1335 Power supply with digital indication provides accurate stable DC power. It is ideal for test benches, laboratories, schools and repair facilities. The multi-turn voltage control knob helps user accurately dial in a precise voltage. It is easy to read digital outputs (voltage and current) through a LED displays.

Features:

  • SMD adhesive sheet element technology for internal PCB construction;
  • Two LEDS Display output current and voltage;
  • A cooling fan;
  • Multiloop high precision voltage regulation;
  • Progressive current regulation;
  • Dual terminal system Safety test style or expandable screw terminals;
  • Overload protection circuit;
  • Low ripple voltage: <1mVP-P;
  • Output polarity: positive or negative;
  • Rugged reinforced metal frame construction.

Specifications:

  • Utilizes SMD technology;
  • Single/Dual Output Light and Compact;
  • Output Polarity: Positive and Negative;
  • LED Display shows Voltage and Current value;
  • Low Ripple Voltage Less Than lmVP-P;
  • Overload Protection Circuit;
  • Applicable for School, Production Line, Laboratory and Maintenance
  • Voltage: 0-30VDC
  • Current: 0-5A
  • Display: 100mV / 10mA
  • Input Voltage: 110VAC/220VAC +/- 10%
  • Voltage Regulation: CV≤1x10-4 +3mV; CC≤2×l0-3 + 6mA
  • Load Regulation: CV≤2x10-4 +3mV; CC≤2×l0-4 + 6mA
  • Ripple & Noise: CV<1mVrms; CC<10mArms
  • Protection: current Limiting
  • Voltage Indication Accuracy: 1% +1d
  • Current Indication Accuracy: 2% + 2d
  • Ambient Temperature: 32°F ~ 104°F / 0°C ~ + 40°C
  • Humidity: <90%

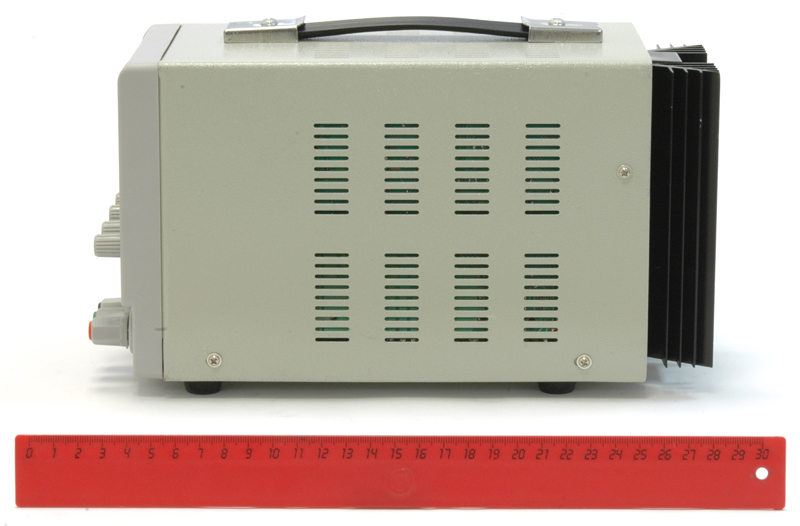

  • Dimensions: 5.3(w) x 6.3(H) x 11(D) in / 135(w) x 160(H) x 280(D) mm
  • Weight: 15.4 lb / 7kg

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
