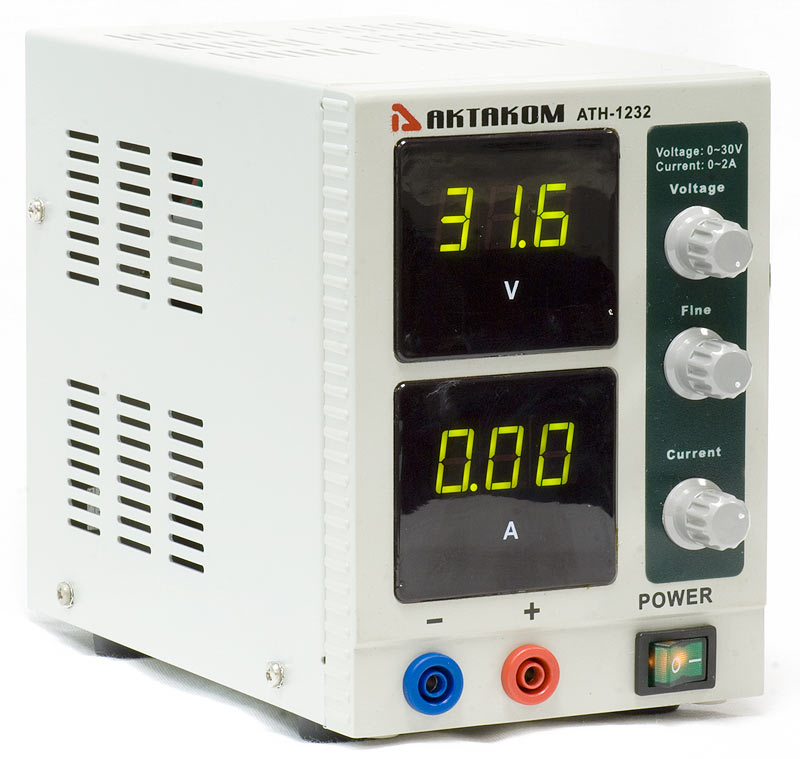

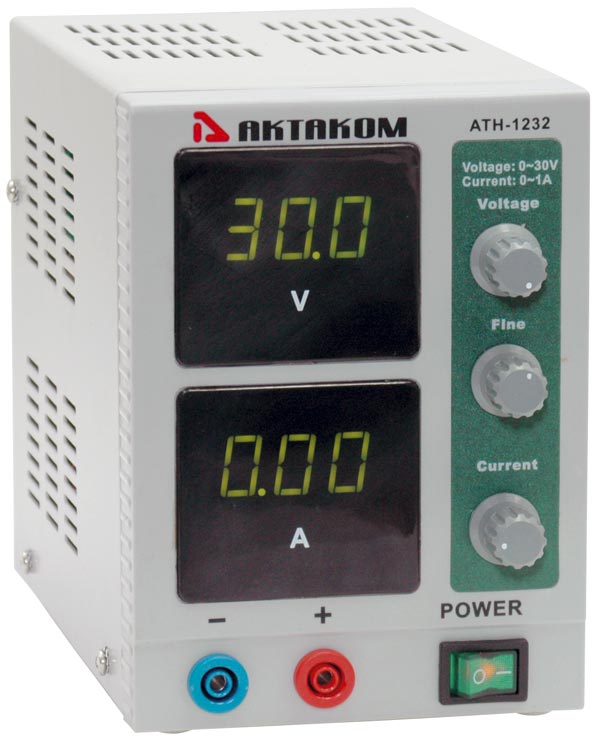

ATH-1232 DC Power Supply 30V / 2A 1 Channel

High-precision DC regulated power supply, with its continuously adjustable voltage output. 3 digit LED display. Short circuit protection. Voltage and current stabilization mode. 1 channel. Output voltage: 0…30V. Output current: 0…2A. Dimensions: 4.3 x 6.1 x 9.5 in / 108 x 154 x 240 mm. Weight: 10 lb / 4.5 kg.

Manuals:
User's Manual (167.29 Kb)

AKTAKOM ATH-1232 is a high-precision DC regulated power supply, with its continuously adjustable voltage output. Constant voltage and constant current are switchable automatically, and the current-limit protection point can be set arbitrarily. In the constant current state, output current is continuously adjustable. The unit features in compact structure, plastic panel, good performance, novel appearanceand etc, it is an ideal power supply unit for science investigation, college, factory, electronic appliance maintenance and etc.

Features:

  • 3 digit LED display
  • Short circuit protection
  • Voltage and current stabilization mode

Specifications:

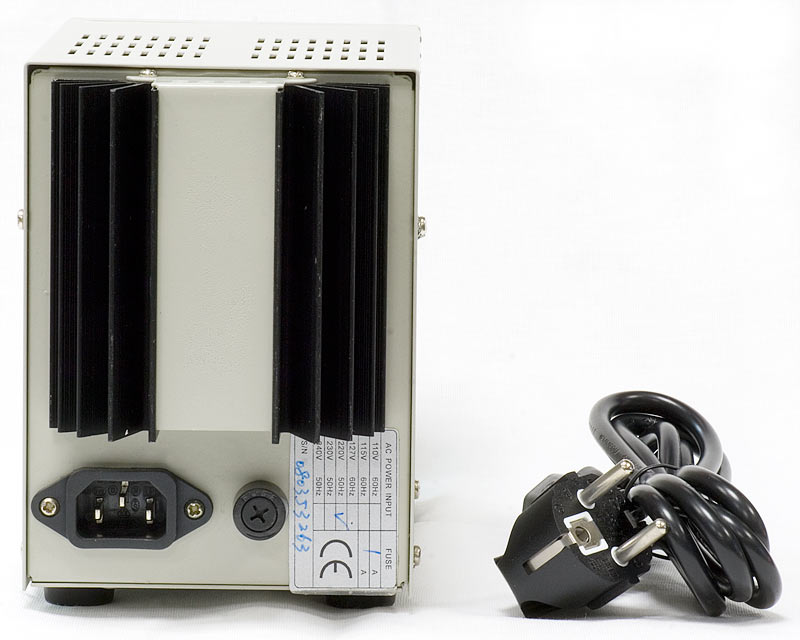

  • Input voltage:
    - 110VAC~127VAC±10%/60Hz
    - 220VAC~240VAC±10%/50Hz (Switchable)
  • 1 channel
  • Output voltage: 0…30V
  • Output current: 0…2A
  • Line regulation:
    - CV ≤ 0.01% + 3mV
    - CC ≤ 0.2% + 3mA
  • Load regulation:
    - CV ≤ 0.01% + 2 mV
    - CC ≤ 0.2% + 3 mA
  • Ripple and noise:
    - CV ≤ 0.5 mV rms
    - CC ≤ 3mA rms
  • Protection: current-limit
  • Display accuracy
    - Volt indication: ±(0.2%Rdg+2 digits), ±2.5% Full Scale
    - Ampere indication: ±(1.0%Rdg+2 digits), ±2.5% Full Scale
  • Dimensions: 4.3 x 6.1 x 9.5 in / 108 x 154 x 240 mm

Accessories:

  • User Manual
  • Power Cord

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
