ATH-2231 DC Power Supply 30V / 10A 2 Channels

AKTAKOM ATH-2231 is a high performance and precision multi channels DC regulated power supply with 2 channel outputs. ATH-2231 power supply has constant voltage mode, constant current mode, auto current cut off protection function, overload protection and auto tracking mode .In auto tracking mode, it can auto connect CH1 and CH2 output either in parallel or in series internally to provide double current or voltage output.

With the extract stability and enhanced responsibility, this power supply is suitable for bench, laboratory, university, high school, and enterprise use or where high performance and precision regulated DC power supply is needed.

Features:

• 2 adjustable channels output
• 0-30V linear voltage and current output display
• 4 LED displays for voltage and current output display
• Low noise and ripple; less than 1mV (5Hz-1mHz)
• Voltage and current pre-set feature
• Current output protection
• CV/CC mode automatic changer
• Auto tracking output
• Auto parallel or series connection
• Doubling voltage with series connection
• Doubling current with parallel connection
• 16 hours continuous operation with full loading

Specifications:

• Channels: 2
• Output voltage: 0…30V x 2 (independent channels)
• Output current: 0…10A x 2 (independent channels)
• Input Voltage: 110VAC/220VAC ± 10% at 50/60Hz
• Operating temperature: 32°F to 104°F / 0°C - 40°C
• Operating humidity: ≤80%RH
• Digital Display: 3 Digital Display (±0.5%+2d)
• Chassis and Terminal: ≤20MΩ, at DC500V
• Chassis and Power Cord: ≤30MΩ, at DC500V
• Dimensions: 18 x 9.8 x 5.3 in / 460 x 250 x 135 mm
• Weight: 38 lb / 17.24 kg

CV mode

• Voltage range: 0 to maximum rated current
• Line Effect: ≤5×10^-4 +3mV
• Loading Effect:
  ≤5×10^-4 +3mV (output current ≤ 10A)
  ≤1×10^-3+3mV (output current > 10A)
• Noise and Ripple: 1.5mV (rms)
• Recovery Time: ≤100µs (50% of loading effect with min. loading of 0.5A)
• Current Range: 0 to maximum rated current

CC mode

• Line Effect: ≤4×10^-3 +3mA
• Loading Effect: ≤4×10^-3 +3mA
• Noise and Ripple: ≤3mAms

Accessories:

• User Manual



• Power Cord

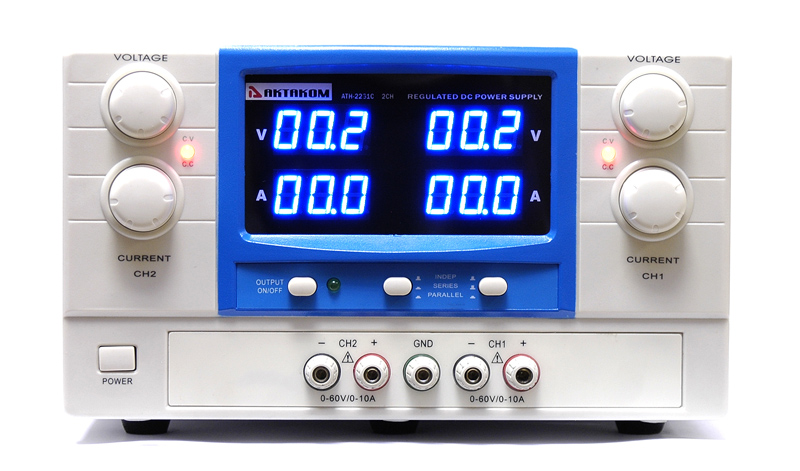

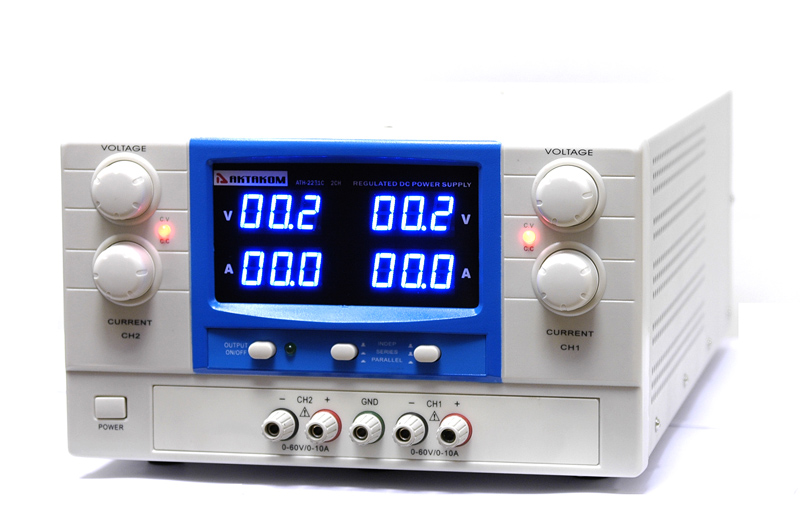

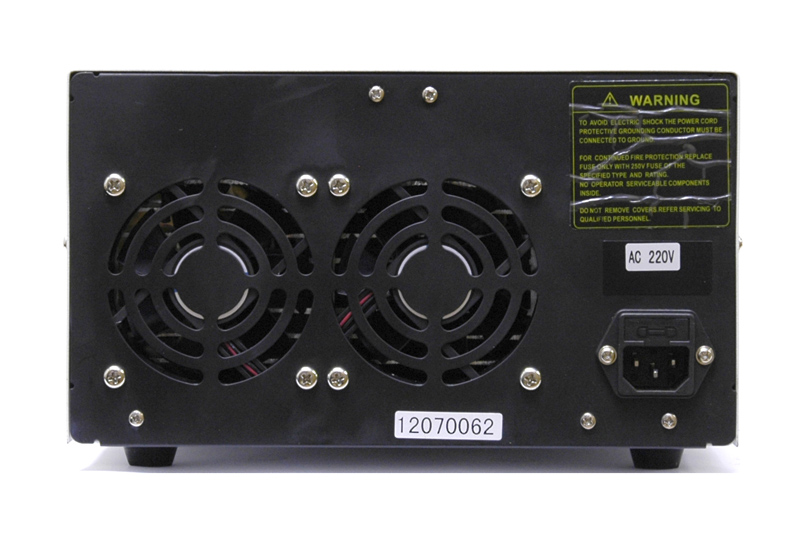

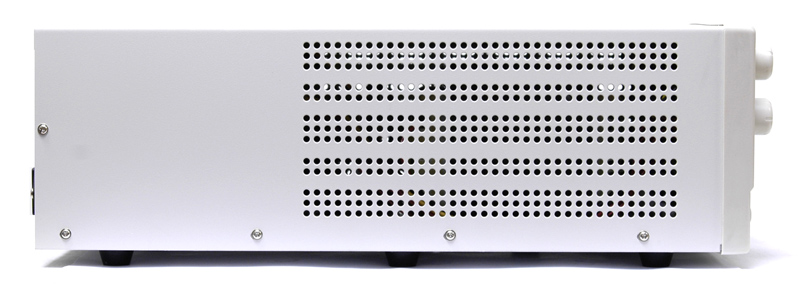

ATH-2231 DC Power Supply 30V / 10A 2 Channels - front view Enlarge		ATH-2231 DC Power Supply 30V / 10A 2 Channels - rear view Enlarge		ATH-2231 DC Power Supply 30V / 10A 2 Channels - side view Enlarge

Setting the output voltage of both channels when operating Aktakom ATH-22xx power supplies

1. Connect Aktakom ATH-22xx power supply to the power source
2. Press Power switch to turn on the power supply
3. To set channel 1 use CH1 Voltage knob to adjust CH1 output voltage
4. Connect the circuit to the Terminals
5. Press Auto current cut off protection key to activate output. The output indicator will light on
6. When CH1 CV/CC indicator is red, use CH1 current knob to adjust a suitable current
7. To set CH2 voltage repeat the above steps using CH2 voltage knob, short main terminals for CH2 and CH2 CV/CC indicator instead.

Caution

• Make sure the Input voltage selector is set to a correct position otherwise it will damage the power supply.
• Do not short the main terminals over 1 minute it can also cause the power supply damage.

Setting the output current of both channels when operating Aktakom ATH-22xx power supplies

1. Connect Aktakom ATH-22xx power supply to the power source
2. Press Power switch to turn on the power supply
3. To set channel 1 use CH1 Voltage knob to adjust CH1 output voltage around 2-5V
4. For CH1 turn CH1 Current knob anticlockwise and reach the minimum current value.
5. Short + and – main terminals for CH1 with a conductor which is cross section area not less than 0.5mm²
6. Ensure the output indicator is on. Otherwise press Auto current cut off protection key. Then CH1 CV/CC indicator will turn to red.
7. Adjust CH1 Current knob to set a desired output current
8. Repress Auto current cut off protection key to cut off the output.
9. Then CH1 CV/CC indicator will turn to green color.
10. Remove the conductor
11. Set to desired voltage
12. Connect the circuit to the main terminals
13. To setting CH2 current repeat the above steps using CH2 Current knob, short main terminals for CH2 and CH2 CV/CC indicator instead

Caution

• Ensure the current is set to zero before shorting the main terminals. Otherwise it will damage the power supply.
• Do not short the main terminals over 1 minute it can also cause the power supply damage.

Setting the independent mode when operating Aktakom ATH-22xx power supply

1. Release both Tracking mode selection keys
2. In independent mode CH1 and CH2 are two independent power supply channels, voltage or current can be adjusted separately.
3. Adjust CH1 or CH2 Voltage/Current knobs to set the desired value.
4. Connect the circuit to CH1 or CH2 terminals.

Frequently Asked Questions

How can series tracking mode be set when operating Aktakom ATH-22xx power supply?

How can I set parallel tracking mode when operating Aktakom ATH-22xx?

May I use AKTAKOM power supplies to charge accumulators?

How can series tracking mode be set when operating Aktakom ATH-22xx power supply?

Press Tracking mode selection key (marked as 1 in the below picture) and release Tracking mode selection key (marked as 2) to enable series tracking mode. In series tracking mode CH2 output voltage and current value follows CH1 setting. The output voltage is double to CH1 display value. Turn CH2 Current knob clockwise to maximum current output and then use CH1 Current knob to adjust the desired current output value. Use CH1 Voltage knob to adjust the desired voltage output value. Connect the circuit to CH1 “+” terminal and CH2 “-” terminal to get double voltage output For the bi-polar DC power supply with common ground connect CH2 “+” terminal to “GND” grounding terminal. CH1 “+” terminal is the positive output and CH2 “-” terminal is the negative output Below is the illustration of series tracking mode Here is the illustration of Bi-polar tracking mode Up

How can I set parallel tracking mode when operating Aktakom ATH-22xx?

Press both Tracking mode selection keys to enable parallel tracking mode. In parallel tracking mode CH2 output voltage and current value follows CH1 setting. The output current is double to the CH1 display value. Use CH1 Voltage knob to adjust the desired voltage output value CH1 Current knob to adjust the desired current output value. Connect the circuit to the CH1 terminals to get double current output Below is the illustration of parallel tracking mode Up

May I use AKTAKOM power supplies to charge accumulators?

AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device. Up
