AHA-1926 Plastic housing

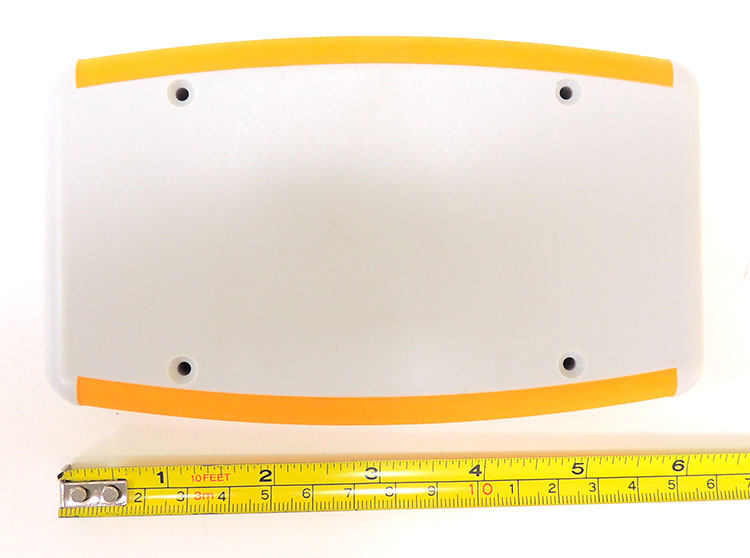

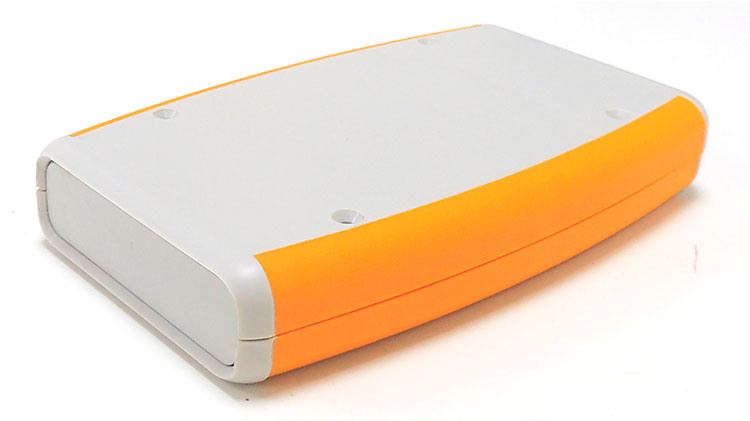

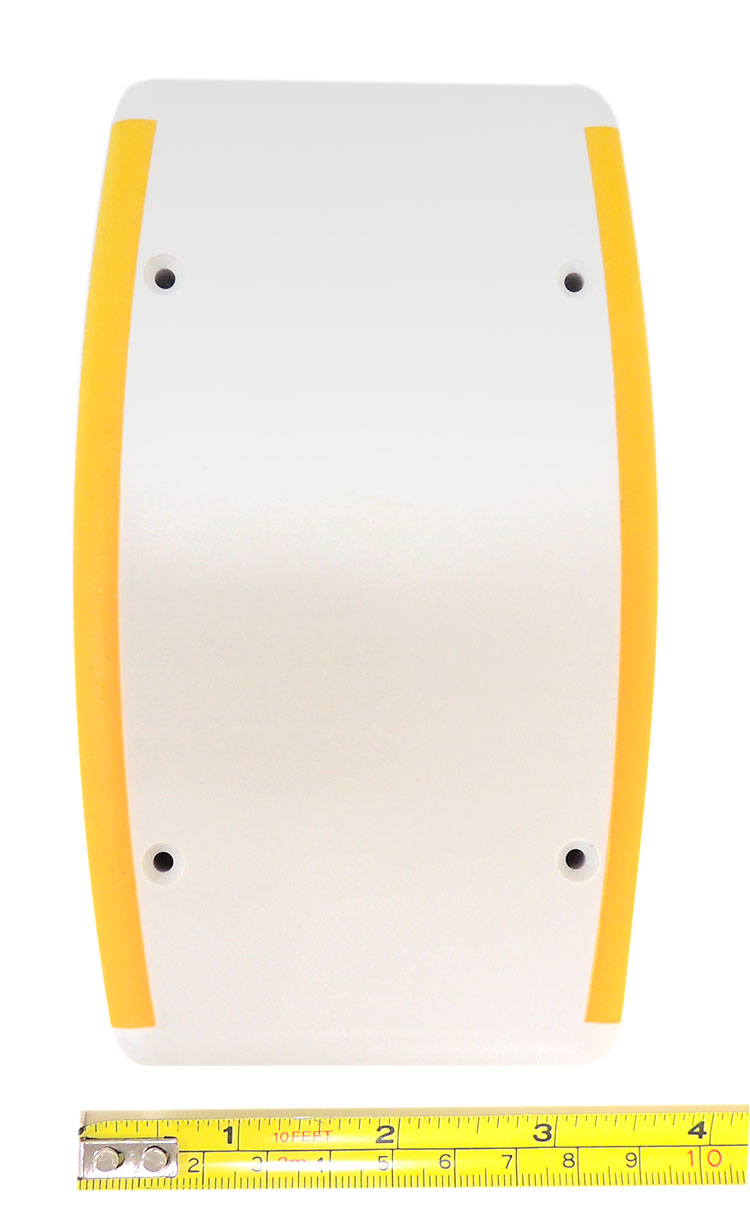

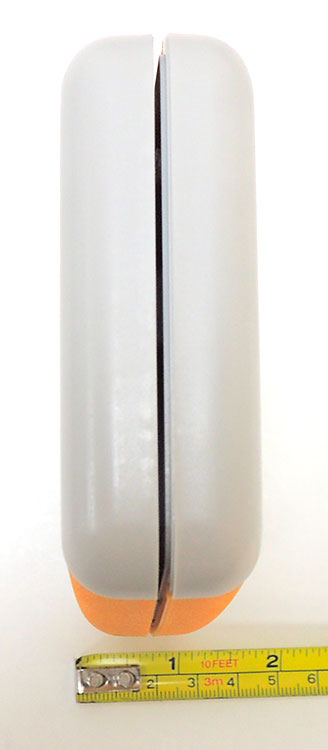

Plastic housing with rubberized sides, one removable (insert) side panel. No battery compartment. Dimensions: 5.8 x 3.5 x 1.02 in / 147 x 90 x 26 mm.

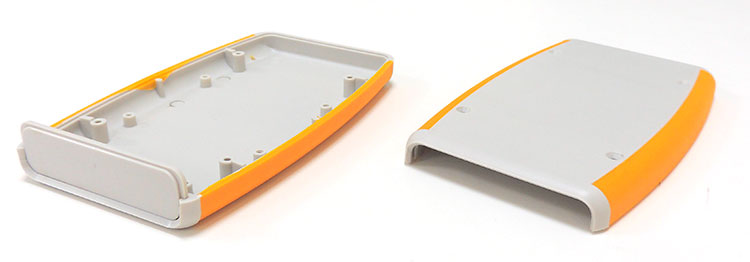

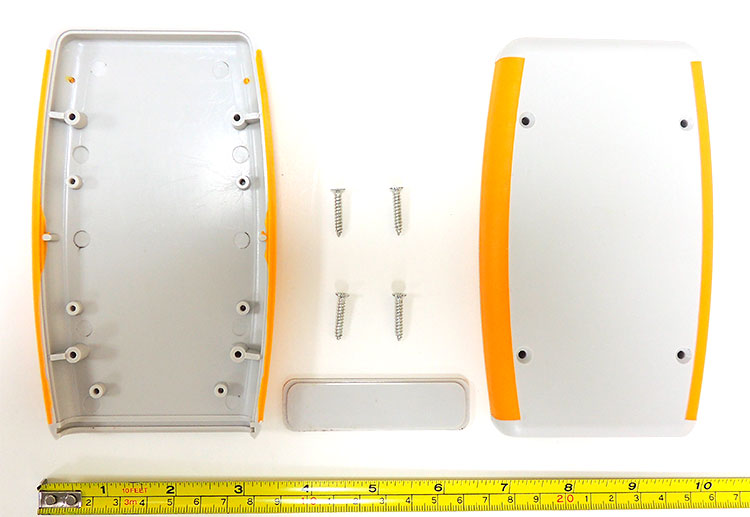

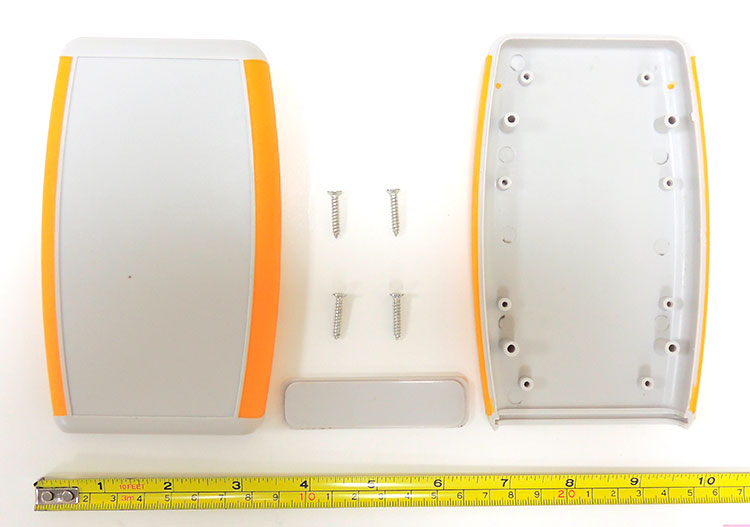

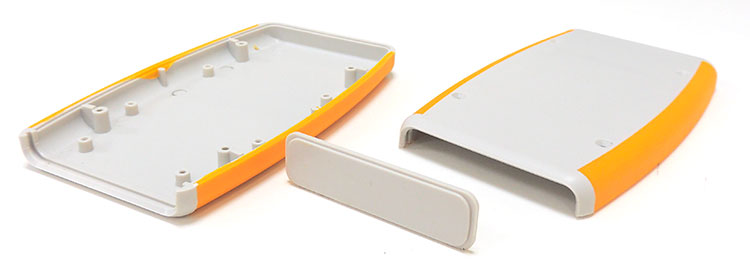

AHA-1926 is a plastic housing with rubberized sides. The color of the rubberized parts is yellow. Dimensions: 5.8 x 3.5 x 1.02 in / 147 x 90 x 26 mm. There is no battery compartment available. The housing has one removable (insert) side panel.

The material this model is made of is ABS plastic with the characteristics as follows:

  • non-toxic
  • waterproof
  • excellent low temperature impact resistance (temperature range is -40°F… 160°F / -40°C… 70°C)
  • dimensional stability
  • electrical properties
  • wear resistance
  • chemical resistance

This type of material is used in automotive, various parts and components of electrical instruments and machinery cover etc.

The plastic housing has a section for printed circuit board and can be easily used in instrument engineering, for different modules, test units and for hobby as well.
