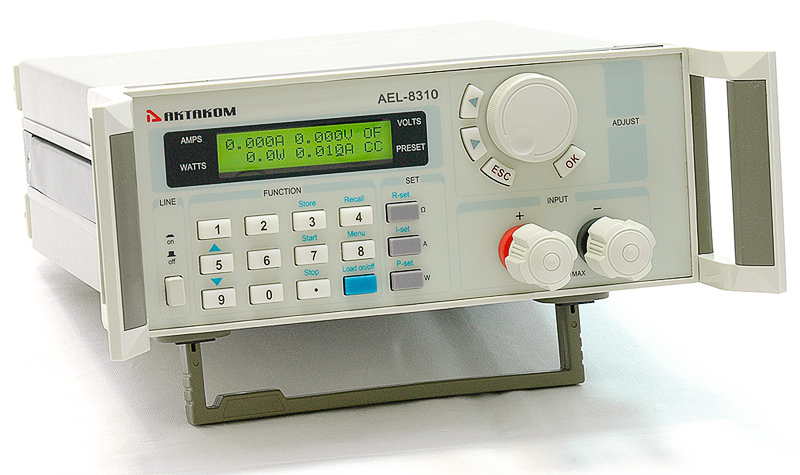

AEL-8310 Programmable Electronic Load

Programmable Electronic Load. Input voltage: 0…360V DC. Input current: 0…30A DC. Input power: 0…150W. RS-232 interface. Protection: Over voltage / over current / over power / over temperature / polarity-reversion. Program Memory: 10 steps program, EEPROM. Dimensions: 11.2x3.7x8.5in / 285x95x215mm. Weight: 4.5kg / 9.9lb

Manuals:

AEL-8310_Users_Manual_.pdf (611.01 Kb)

AKTAKOM AEL-8310 is a single input programmable DC electronic load. It provides a convenient way to test batteries and DC power supplies. It offers constant current mode, constant resistance mode and constant power mode. The backlight LCD, numerical keypad and rotary knob make it much easier to use. Up to 10 steps program can be stored. Controlled by PC is also available. It is an essential instrument for design, test and manufacture of many suitable products.

Features

LCD display with backlight
High resolution measurement
CC/CP/CR mode
Number keypad and rotary knob
Multifunction menu
Over voltage / over current / over power / over temperature / polarity reversion protection
10 steps program
Can be controlled by PC
Can be connected in parallel

Specifications

Number of inputs	1
Input voltage	0…360V DC
Input current	0…30A DC
Input power	0…150W
Voltage accuracy	0.000…3.999V: 0.2%+3mV 4.00…35.99V: 0.2%+30mV 36.0…360.0V: 0.2%+300mV
Current accuracy	0.000…2.999A: 0.2%+3mA 3.00…30.00A: 0.2%+30mA
Minimum resolution	Voltage 1mV, Current 1mA
Lowest Conductive Resistance	<0.08Ω
Ripple	<10mVpp
Interface	RS232
Protection	Over voltage / over current / over power / over temperature / polarity-reversion
Program Memory	10 steps program, EEPROM
AC Input	110V/220V AC +/-15%, 47…63Hz
Operating environment	0…50°C, 80% RH

Accessories

Power Cord
User Manual

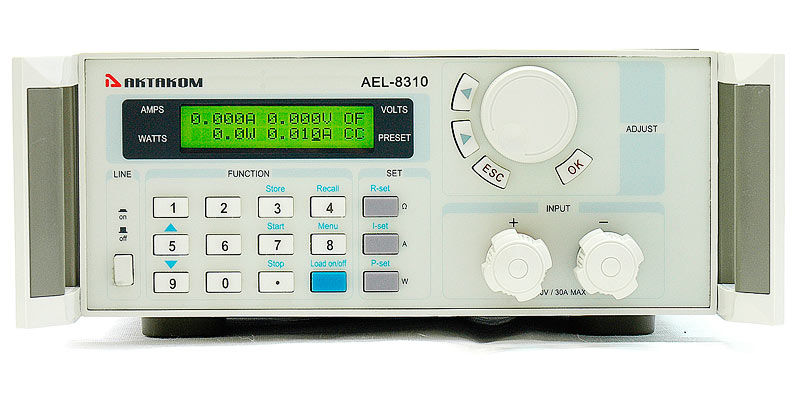

AEL-8310 Programmable Electronic Load - front view

Enlarge

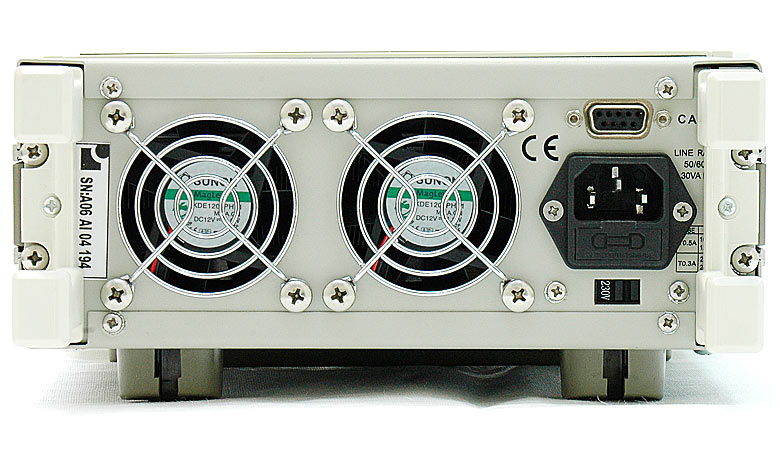

AEL-8310 Programmable Electronic Load - rear view

Enlarge

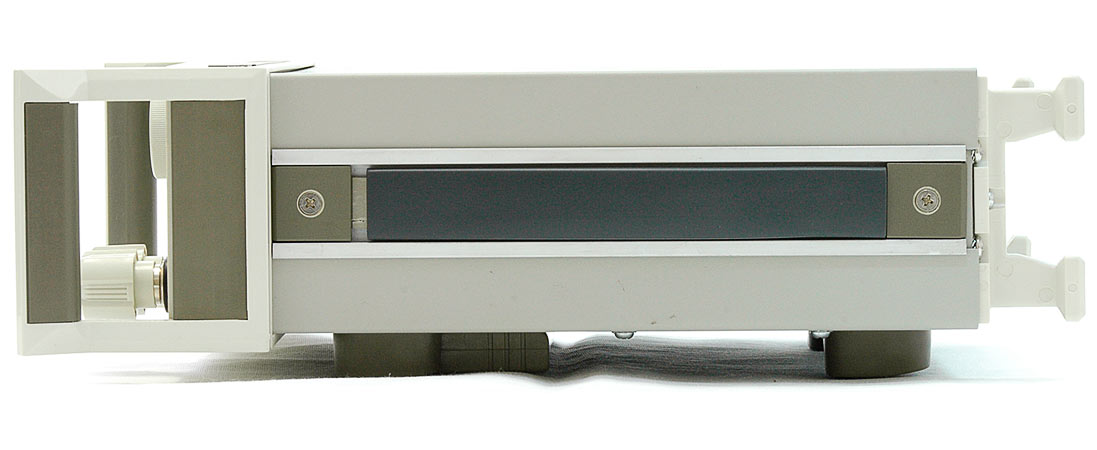

AEL-8310 Programmable Electronic Load - side view

Enlarge
