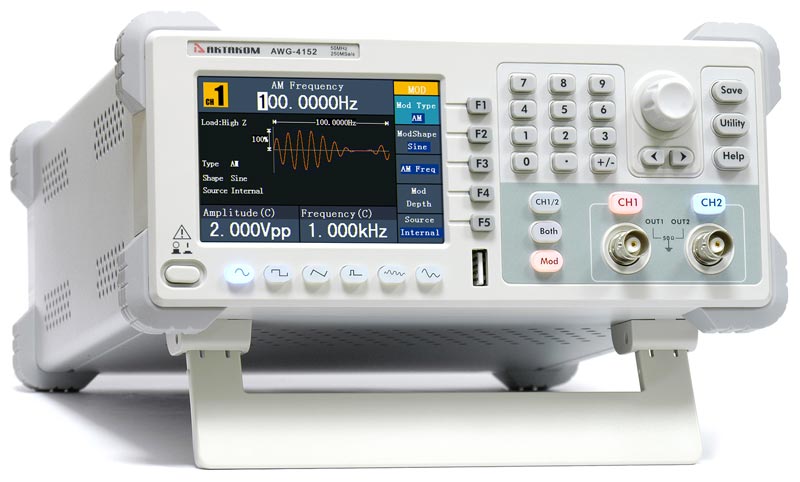

AWG-4152 Waveform Generator

Dual-channel arbitrary waveform generator. Advanced DDS technology, 50MHz frequency output. 250MS/s sample rate, and 1μHz frequency resolution. Vertical Resolution: 14 bits, 2 pts to 1M pts arb waveform length. Comprehensive waveform output: 5 basic waveforms, and 48 built-in arbitrary waveforms. Comprehensive modulation functions: AM, FM, PM, FSK, PWM, Sweep, and Burst. High-accuracy frequency counter integrated, supported range 100mHz - 200MHz. Supported SCPI. 4 inch high resolution (480 × 320 pixels) TFT LCD display. Dimension (WxHxD): 9.3 x 4.3 x 11.6 in / 235 x 110 x 295 mm. Weight (without package): 105.8 oz / 3 kg.

Specifications

  • Channel: dual
  • Frequency Output: 50MHz
  • Sample Rate: 250MS/s
  • Vertical Resolution: 14 bits
  • Frequency resolution: 1μHz
  • Standard Waveforms: Sine, Square, Pulse, Ramp, and Noise
  • Arbitrary Waveform Exponential Rise, Exponential Fall, Sin(x)/x, Step Wave, and others, total 48 built-in waveforms, and user-defined arbitrary waveform

Frequency

  • Sine: 1μHz - 50MHz
  • Square: 1μHz - 25MHz
  • Pulse: 1μHz - 10MHz
  • Ramp: 1μHz - 1MHz
  • Noise: 25MHz (-3dB) (typical)
  • Arbitrary Waveform: 1μHz - 10MHz

Amplitude

  • Amplitude 1mVpp - 10Vpp (50Ω), 1mVpp - 20Vpp (high impedance)
  • Resolution 1mVpp or 4 digits
  • DC Offset Range (AD+DC) 5V (50Ω), 10V (high impedance)
  • DC Offset Range Resolution 1mV
  • Load Impedance 50Ω (typical).

Arbitrary Waveform

  • Wave Length: 2 pts to 1M pts
  • Sample Rate: 250MS/s
  • Vertical Resolution: 14 bits
  • Non-volatile Memory: 26 waveforms

Modulation

  • Modulation Waveform: AM, FM, PM, PWM, FSK, Linear / Logarithm Sweep and Burst
  • Modulation Frequency: 2mHz to 20.00KHz (FSK 2mHz - 100KHz)

Counter

  • Function: Frequency Period, +Width, -Width +Duty, and -Duty
  • Frequency Range: 100mHz ~ 200MHz
  • Frequency Resolution: 6 digits

Power Amplifier Specification (Optional)

  • Bandwidth DC - 100 kHz
  • Gain X 10
  • Max Output Power 10 W
  • Max Output Voltage 22 Vpp

Input / Output

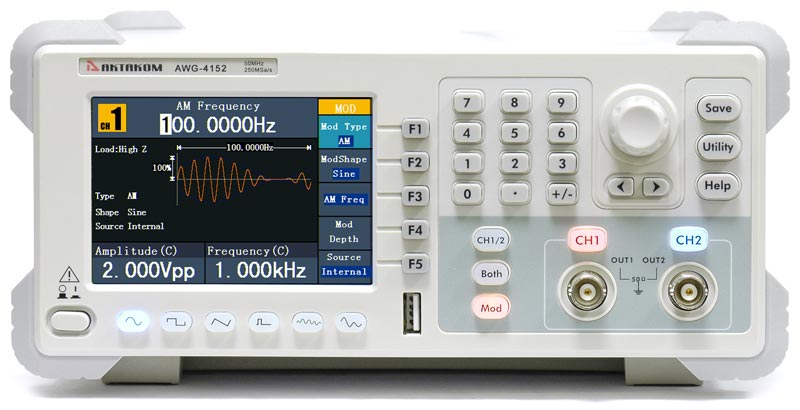

  • Display 4 inch (480 × 320 pixels) TFT LCD

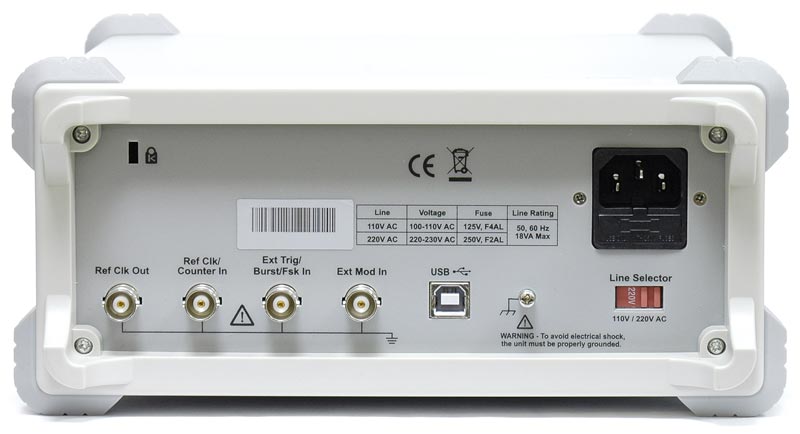

  • Type: counter, external modulation, input / output, external trigger, external reference clock

Communication Interface

  • USB host,
  • USB device,
  • RS-232 (option)

Dimension (WxHxD): 9.3 x 4.3 x 11.6 in / 235 x 110 x 295 mm
Weight (without package): 105.8 oz / 3 kg

Accessories

  • User Manual
  • CD
  • Power cord
  • USB cable
  • Q9 BNC cable
