ASE-4201 Soldering Station

Simple and convenient tool for mounting and dismantling electronic SMD components in various packages (SOIC, CHIP, QFP, PLCC, etc.). Power consumption 750 W. Temperature range 100...500 C / 212932 F Fast heating. Ergonomic hot air gun handle Flow rate 30 l/min (max.). Temperature stability 5 C / 41 C.

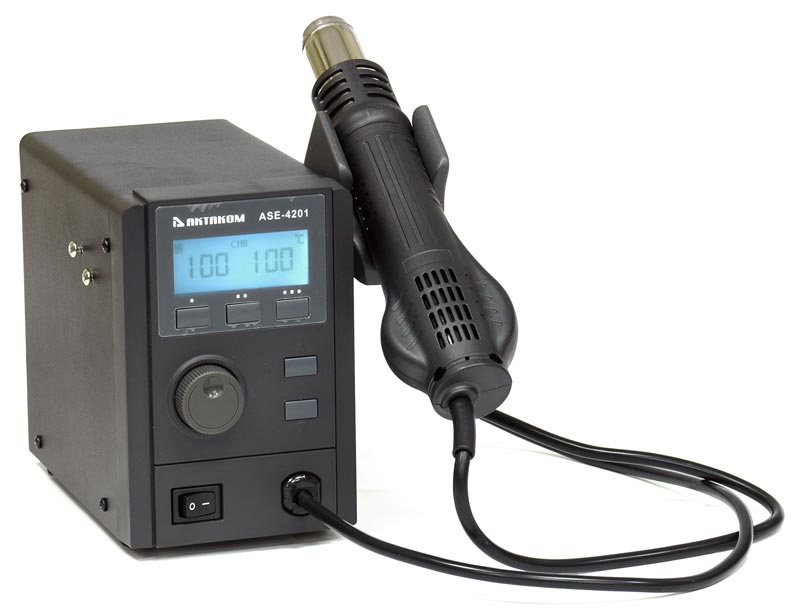

AKTAKOM ASE-4201 soldering station is a simple and convenient tool for mounting and dismantling electronic SMD components in various packages (SOIC, CHIP, QFP, PLCC, etc.).

Specifications:

  • Power consumption 750 W
  • Temperature range 100...500 C / 212932 F
  • Brushless fan with continuous adjustment from 1 to 100%
  • Flow rate 30 l/min (max.)
  • Temperature stability 5 C / 41 C
  • Memory for 3 preset temperatures
  • Liquid crystal display with dynamic display of air volume and temperature
  • Sleep mode to extend heater life
  • Compact dimensions
  • Fast heating
  • Ergonomic hot air gun handle
  • Power supply voltage: 220240 V, 50 Hz
  • Overall dimensions 98170151 mm
  • Weight about 1.5 kg

Standard accessories:

  • Soldering station
  • Hot air gun
  • Power cord

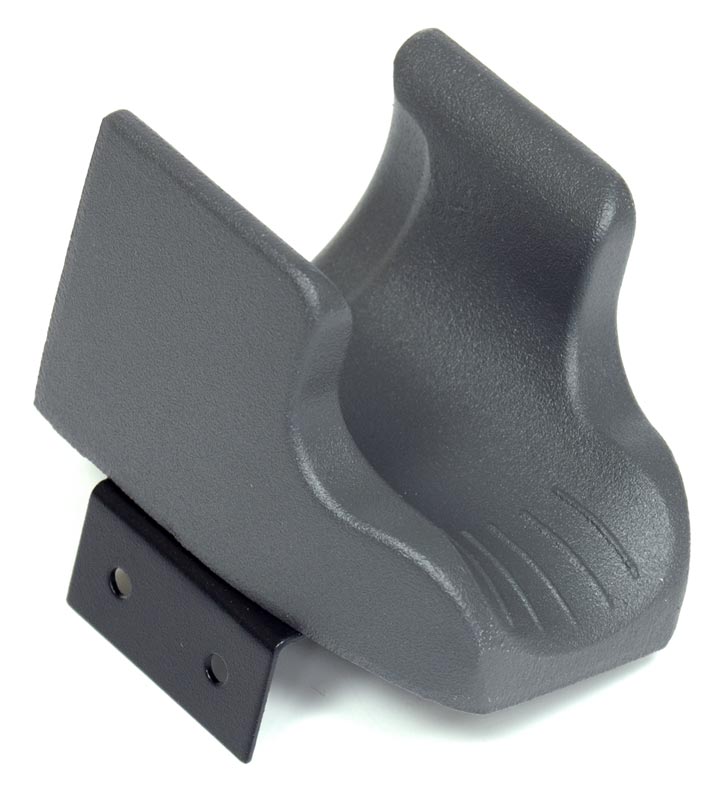

  • Hot air gun holder (with mounting on the body)

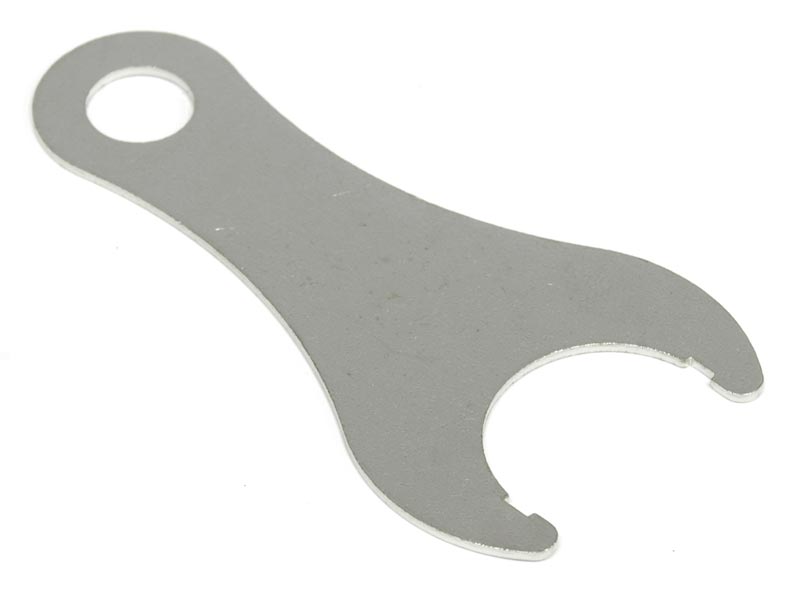

  • Key

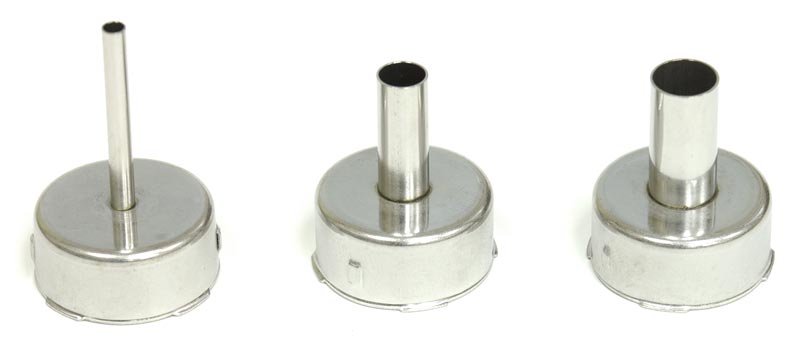

  • Hot air gun nozzles - 3 pcs.
  • User manual

Safety instructions

Take care of yourself!

  1. Please read user manual carefully before using the instrument.
  2. Do not use the device if there is visible damage.
  3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
  4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
  5. Use only those accessories that are intended for use with this device.
  6. While working, do not touch the metal parts near the tip of the soldering iron.
  7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

Frequently Asked Questions

  • The rework station is not functioning, turns on, but not blowing air?

  • The rework station is not functioning, turns on, but not blowing air?
    The most common reason the rework station not functioning - the handle is placed on its holder. After the handle is placed on the holder the soldering station goes into standby mode and is ready for the working mode. Please follow user's manual for more details.
