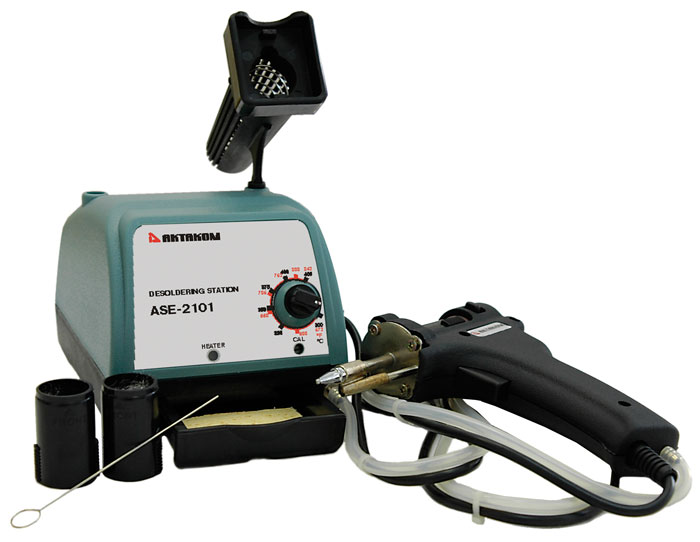

ASE-2101 Desoldering Station

Precise temperature control, the temperature control scheme provides high stability of the set temperature, light desoldering iron, temperature range 570 — 840 °F

Manuals:
User's Manual (1.03 Mb)

Advantages

  • Precise temperature control
  • The temperature control scheme provides high stability of the set temperature
  • Light desoldering iron
  • The ergonomic design of the desoldering iron handle provides convenient work; the handle covering is made of silicone rubber
  • Temperature block system
  • Sliding tray for sponge which provides easy cleaning and moisture
  • High-quality and durable ceramic heating element, produced in Japan, provides quick heating

Specifications

STATION
AC Input: 110 — 120 V, 60 Hz
Temperature Range: 570 — 840 °F
Dimensions: 6,7 × 4,7 × ­4,1 in
Weight: 2,2 lb

DESOLDERING IRON
Power Consumption: 45W at 660 °F
Heating element: Ceramic heater
Ceramic heater insulation rated over 100 MΩ at 750 °F

Accessories

  • Desoldering station with a power cable

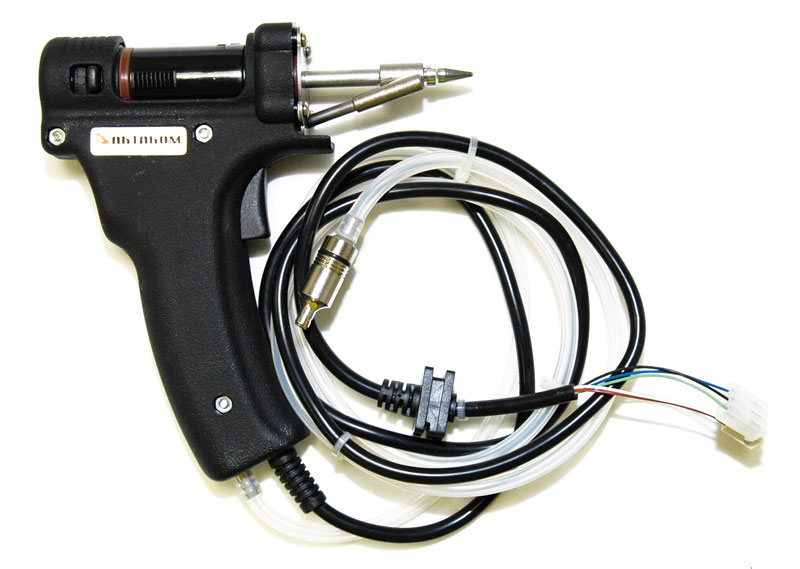

  • Desoldering iron with tip

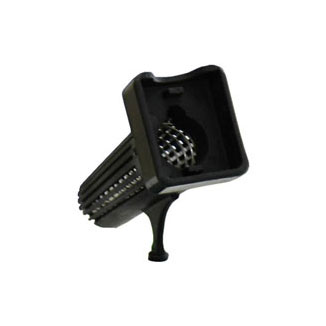

  • Desoldering iron holder

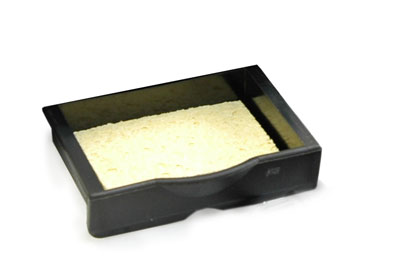

  • Sliding tray for sponge
  • User manual

Optional accessories

  • Desoldering tips, delivered to the special order
    80T-10 — D=0,039 in
    80T-12 — D=0,047 in
    80T-15 — D=0,059 in

Safety instructions

Take care of yourself!

  1. Please read user manual carefully before using the instrument.
  2. Do not use the device if there is visible damage.
  3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
  4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
  5. Use only those accessories that are intended for use with this device.
  6. While working, do not touch the metal parts near the tip of the soldering iron.
  7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

Working with Desoldering Station ASE-2101

First thing before you start working with the station you need to set the required temperature using the temperature controller knob.

Desoldering station AKTAKOM ASE-2101 is used for removing items, so we recommend the temperature to be set at 10%-15% higher than regular soldering and melting temperatures!

The set temperature is reached after the «Heater» indicator starts blinking. Pay attention! After the station is heated do not touch the soldering tips!

To remove melted solder from the board bring Soldering Tip to required area of the board and press the trigger button. The compressor will turn on.

If you are not satisfied with the rate of removal of melted solder you can check the compressor suction force. To do that you must first turn off the station and allow it to cool of the Soldering Tip! Next remove the collection capsule and breathy turn on the station. Press the trigger button to turn on the compressor. To check its effectiveness plug the suction hole with your finger.

To improve the suction rate of the compressor you can temporarily remove the air filter.

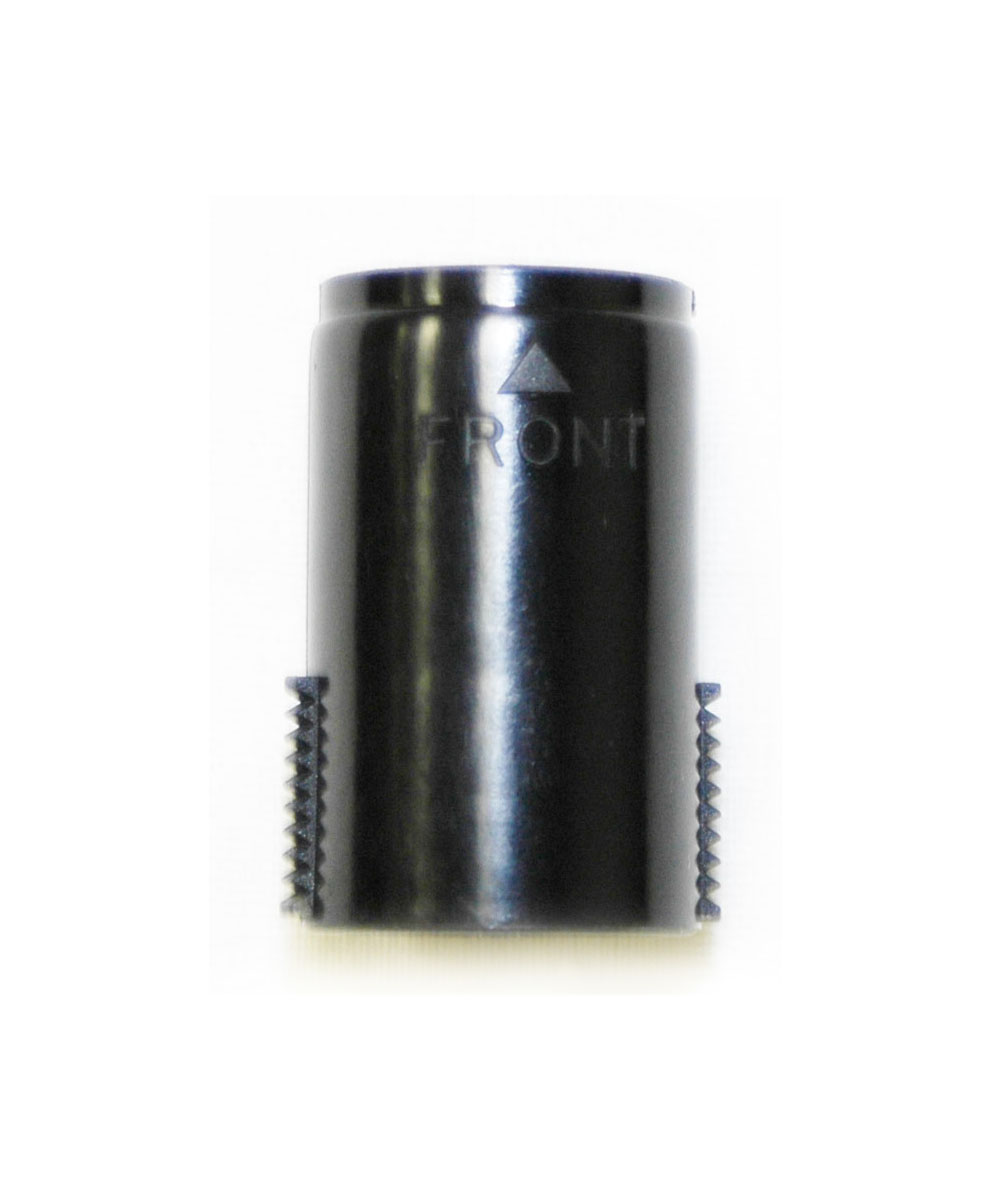

To return the collection capsule to its place make sure the word FRONT faces the tip of the station.

Have a successful and productive work day using the soldering stations AKTAKOM!

Frequently Asked Questions

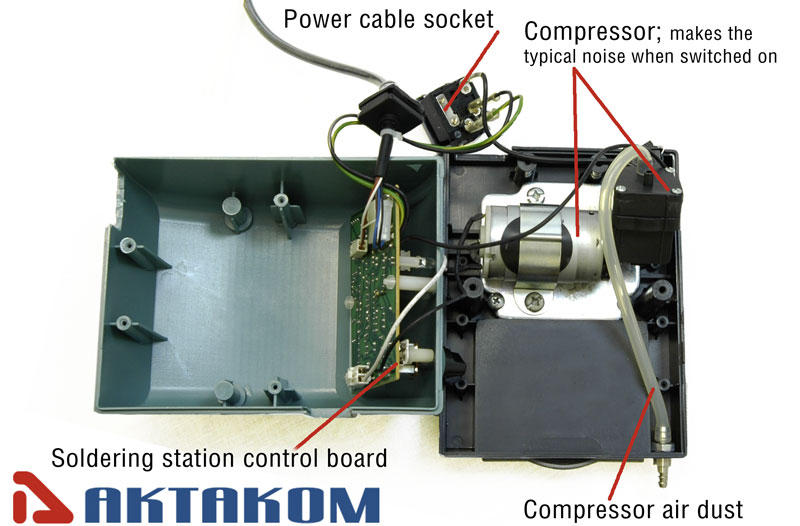

  • How ASE-2101 is designed?
  • What temperature should use for soldering?
  • Desoldering station has a motor running and is extremely loud

  • How ASE-2101 is designed?


    Up

    What temperature should use for soldering?
    600°- 650°F (316°- 343°C) is a good place to start for lead-based solder and 650°- 700°F (343°- 371°C) for lead-free solder.

    Note: if clots form, the temperature is too low.
    Up

    Desoldering station has a motor running and is extremely loud

    Probably you are using a desoldering gun in a wrong way.

    When you pull the trigger the vacuum compressor works to clean desoldering area; giving a natural compressor noise but if you do not pull the trigger the gun will hold the screen temperature as long as the power switch is on (the screen lights). Some station model comes with a the power saving scheme that allow temperature automatically decreases that prolongs service life of the heater and the tips.

    This is not a soldering gun; the trigger is use only to vacuum disordering materials to the filter pipe. The compressor produces a sound level of 87 dBA at work.


    Up
