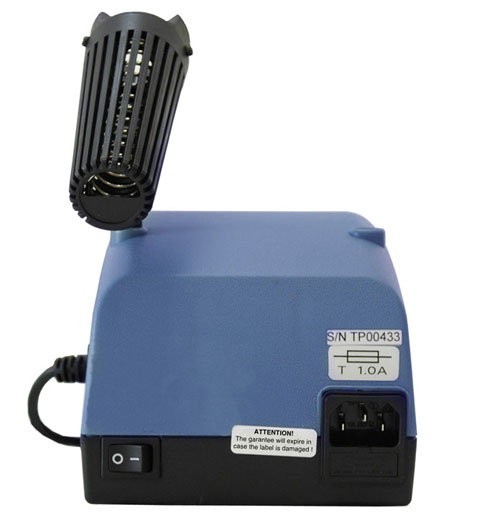

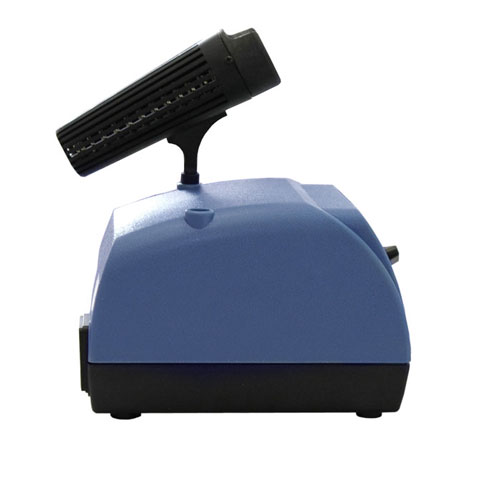

ASE-1101 Soldering Station

Soldering station with antistatic protection and digital indication of soldering iron temperature. It is especially recommended for field transistors and microchips assembly produced in accordance with CMOS technology. Temperature Range 390 930 F

Manuals:
User's Manual (933.89 Kb)

Soldering station with antistatic protection and digital indication of soldering iron temperature. It is especially recommended for field transistors and microchips assembly produced in accordance with CMOS technology.

Advantages

  • The temperature control scheme provides high precision with accuracy not more than 2 F from the set temperature
  • The ergonomic design of the of a soldering iron handle provides convenient work; the handle covering is made of silicone rubber
  • Power supplies device is isolated from alternating current network
  • Simplicity of calibration
  • For the heating element supply the voltage of 24 V is used
  • Tip leakage is less than 0,4 mV and the resistance is 0,5 MΩ
  • Sliding tray for sponge
  • High-quality and durable ceramic heating element, produced in Japan, provides quick heating, insulation resistance is more than
    100 MΩ with the temperature of 750 F.

Specifications

STATION
AC Input:110 120 V, 60 Hz
Temperature Range: 390 930 F
Dimensions: 6,7 × 4,7 × 4,1 in
Weight: 3,7 lb

SOLDERING IRON
Power Consumption: 24 V/60 W
Heating element: Ceramic heater
Leakage is less than 0,4 mV

Accessories

  • Soldering station with a power cable

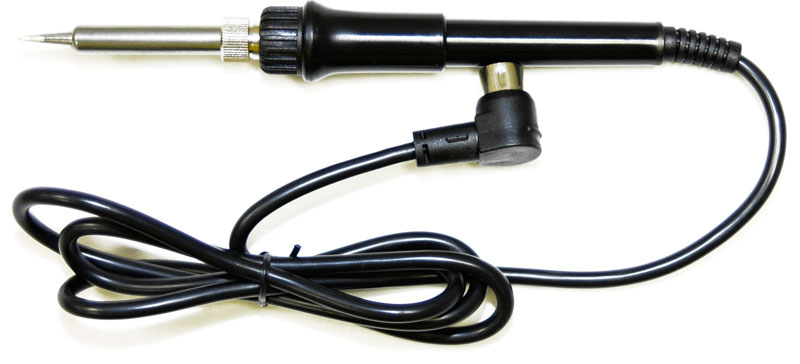

  • Soldering iron with tip

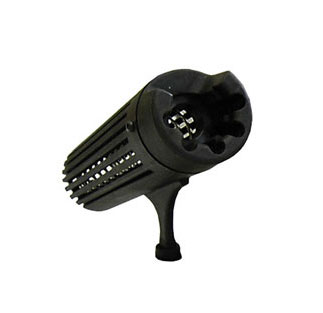

  • Soldering iron holder

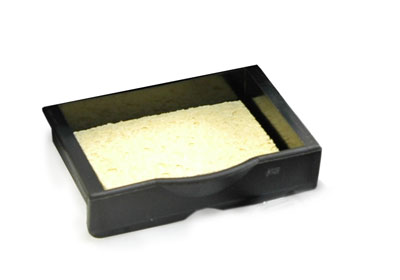

  • Sliding tray for sponge
  • User manual

Safety instructions

Take care of yourself!

  1. Please read user manual carefully before using the instrument.
  2. Do not use the device if there is visible damage.
  3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
  4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
  5. Use only those accessories that are intended for use with this device.
  6. While working, do not touch the metal parts near the tip of the soldering iron.
  7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

Operation instructions

  • Ensure working voltage matches your power supply before plugging into the station
  • Carefully check any possible damage during transportation. Set temperature by moving "SET-READ" switch to "SET" position and rotate temperature control knob until the digital display reads the desired temperature. Then turn "SET-READ" switch to "READ" position. The station will maintain the preset temperature.

Frequently Asked Questions

  • What types of tips I can buy for soldering iron?
  • How ASE-1101 is designed?
  • What temperature should use for soldering?
  • How to care and use of the soldering tip?
  • Why a "de-tinned" tip fails to work?
  • How to clean the tip?

  • What types of tips I can buy for soldering iron?

    90M-T-0,8D Soldering Tip 90M-T-1,2D Soldering Tip 90M-T-1,6D Soldering Tip

    90M-T-2,4D Soldering Tip 90M-T-3,2D Soldering Tip

    90M-T-0,8C Soldering Tip
    / 90M-T-B Soldering Tip 90M-T-1,2D Soldering Tip

    90M-T-I Soldering Tip / 90M-T-LB Soldering Tip

    90M-T-2C Soldering Tip 90M-T-3C Soldering Tip 90M-T-4C Soldering Tip

    90M-T-K Soldering Tip

    90M-T-1,8H Soldering Tip 90M-T-H Soldering Tip


    Up

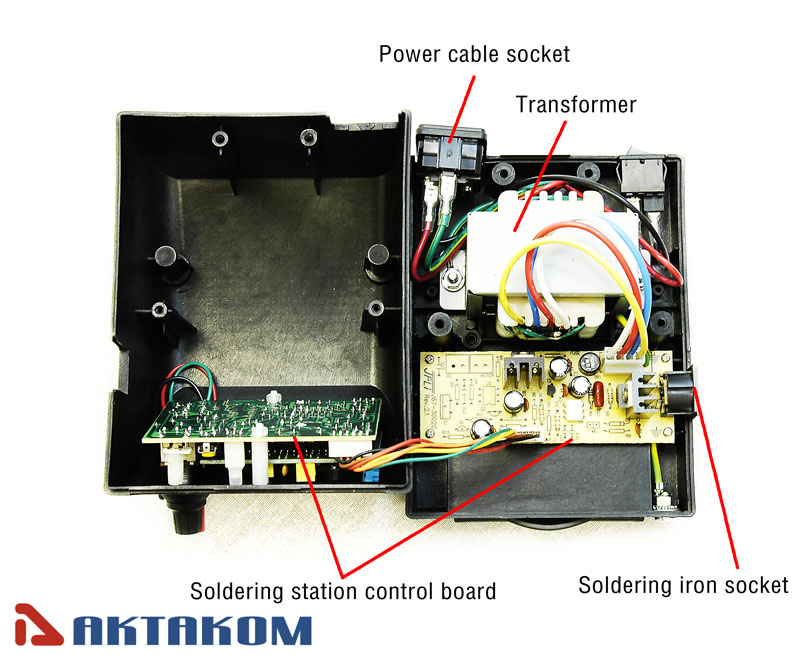

    How ASE-1101 is designed?


    Up

    What temperature should use for soldering?
    600- 650F (316- 343C) is a good place to start for lead-based solder and 650- 700F (343- 371C) for lead-free solder.

    Note: if clots form, the temperature is too low.
    Up

    How to care and use of the soldering tip?

    High soldering temperatures can degrade the tip. Use the lowest possible soldering temperature. The excellent thermal recovery characteristics ensure efficient and effective soldering event at low temperatures. This also protects the sensitive components from thermal damage. Clean the tip regularly with a cleaning sponge, as oxides and carbides from the solder and flux can form impurities on the tip. These impurities can result in defective joints or reduce the tip's heat conductivity. When using the soldering iron continuously, be sure to loosen the tip and remove all oxides least once a week. This helps to prevent reduction of the tip temperature. Never leave the soldering iron sitting at high temperature for long periods of time, as the tip's solder plating will be covered with oxide, which can greatly reduce the tip's heat conductivity. Wipe the tip and coat it with fresh solder after use. This helps to prevent tip oxidation.


    Up

    Why a "de-tinned" tip fails to work?

    A de-tinned tip is one which cannot wet with solder. This exposes the plating to oxidation and degrades the heat transfer efficiency of the tip.

    The de-tinning is caused by:

    1) Failure to keep the tip covered with fresh solder while not in use.

    2) High tip temperatures.

    3) Insufficient melting in soldering operations.

    4) Wiping the tip on dirty or dry sponges and rags (Always use a clean, wet, industrial grade, sulfur-free sponge).

    5) Impurities in the solder, iron plating, or on the surfaces to be soldered.


    Up

    How to clean the tip?

    Caution! Never file the tip to remove oxide.

    1. Set the temperature to 250C.
    2. When the temperature stabilizes, clean the tip with the cleaning sponge and check the condition of the tip.
    3. If there is black oxide on the solder-plated portion of the tip, apply new solder (containing flux) and wipe the tip on the cleaning sponge. Repeat until the oxide is completely removed. Coat with new solder. The solder protects the tip from oxidation and prolongs the life of the tip.
    4. If the tip is deformed or heavily eroded, replace it with a new one.

    Up
