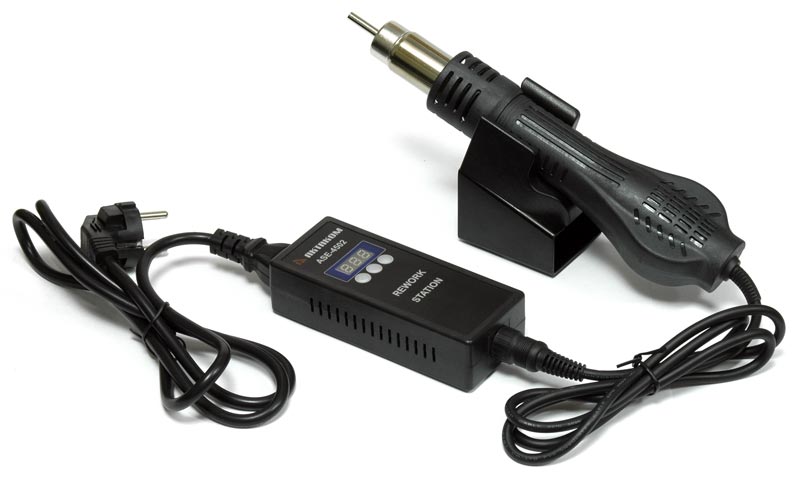

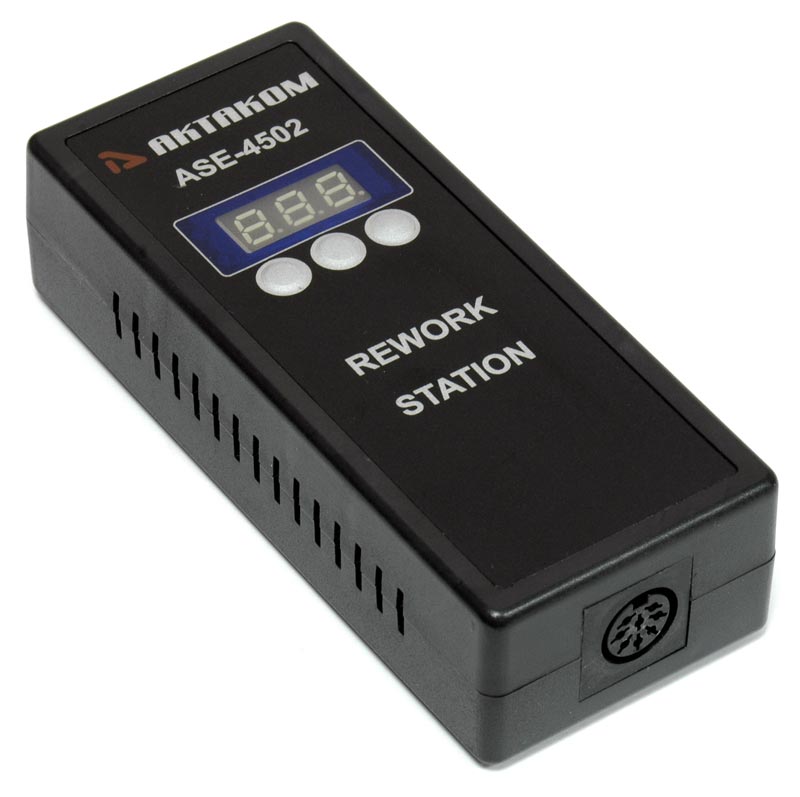

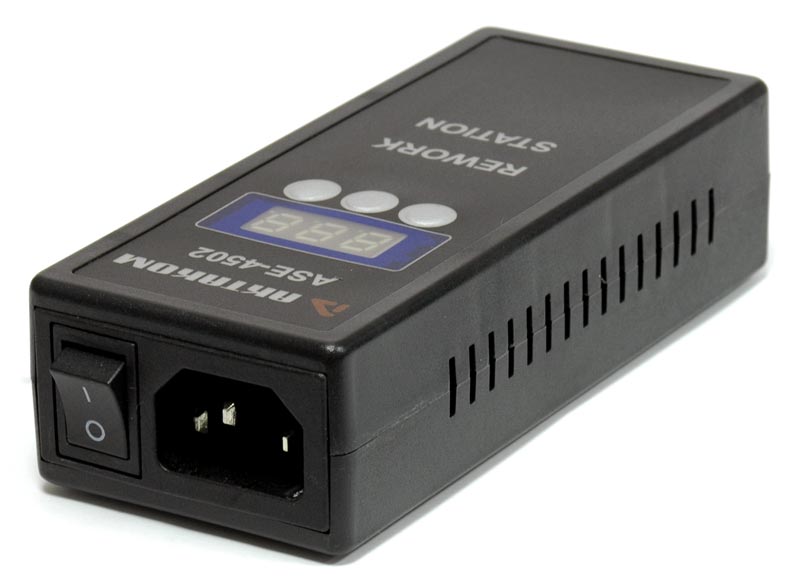

ASE-4502 ESD-Safe Temperature Controlled Rework Station

ESD-safe temperature controlled rework station. Especially recommended for work with temperature sensitive electronic components. Lead-free. Temperature range: 212-842 °F / 100-450°C. 700W. AC220V±10%; 50Hz/60Hz.

Manuals:
User's Manual (659.59 Kb)

The application fields of Aktakom ASE-4502 professional rework station are variable due to its adjustable air volume, large amount and soft blowing, convenient temperature control and other features. But it is especially recommended for work with temperature sensitive electronic components.

ASE-4502 rework station occupies a minimal space and organizes a high performance work area.

This model is ESD-safe. This is an important requirement that should be met since the absence of antistatic protection may cause the damage of valuable electronic components with electrostatic discharge.

Features:

  • Close circuit sensor and microcomputer control the temperature
  • Lead-free
  • High power and rapid warming
  • Accurate and stabilized temperature. Temperature can be easily adjusted
  • ESD-safe. Suitable for work with static-sensitive components

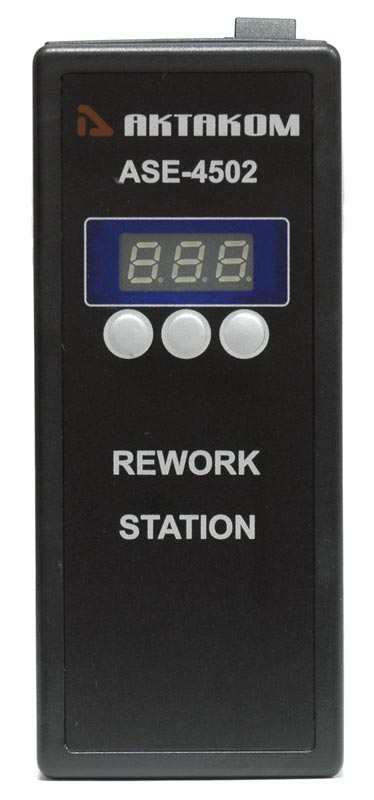

  • LED display
  • Easy operation. When user puts the handle back to the handle carrier the system automatically enters standby mode.
  • Brushless fan, long life, minimal noise
  • The station can cool down itself prolonging the life of the hot air gun

Specifications:

  • Power consumption: 700W
  • Output voltage: AC220V±10%; 50Hz/60Hz
  • Temperature range: 212-842 °F / 100-450°C
  • Airflow volume: 120L / Min (Max)
  • Dimensions: 11x7.5x6.7 in / 280x190x170 mm
  • Weight: 4 lb / 1.8 kg

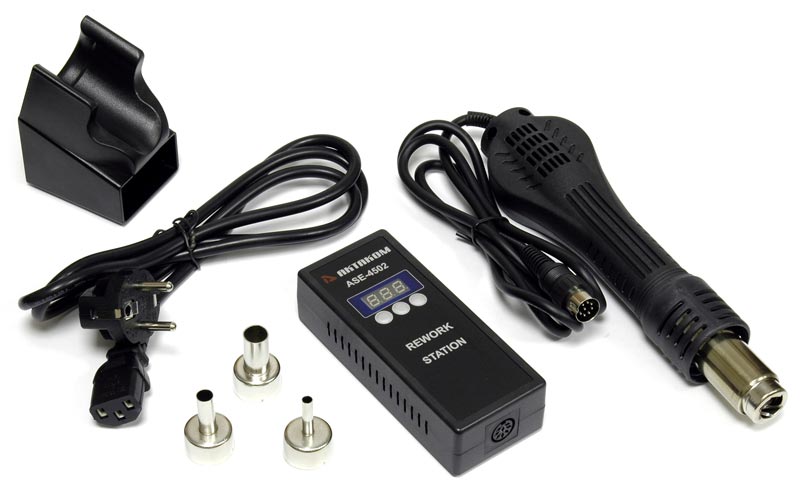

Accessories:

  • Soldering station with a heating gun
  • Nozzle ∅0.2 in (4.5 mm), ∅0.3 in (7 mm), ∅0.4 in (10 mm)
  • Heating gun holder
  • Power cable
  • User manual

Safety instructions

Take care of yourself!

  1. Please read user manual carefully before using the instrument.
  2. Do not use the device if there is visible damage.
  3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
  4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
  5. Use only those accessories that are intended for use with this device.
  6. While working, do not touch the metal parts near the tip of the soldering iron.
  7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

Operation of AKTAKOM ASE-4502 rework station

  1. Powering ON
    Rework station has two types of parameters that can be set: temperature and airflow.
    When AKTAKOM ASE-4502 is powered on the display shows the current temperature value.
  2. Temperature setting
    In Standby mode ASE-4502 will display “--”, press “setup” once and the LCD will show temperature setting values.
    Adjust the value with “UP” or “DOWN” buttons to set your required temperature.
  3. Airflow setting
    Press “setup” three times, the display will show “F”. Adjust the value with “UP” or “DOWN” buttons to set the value of the air pressure.

*Standby mode
Put the hot air gun on the holder, the temperature will start dropping down to 60°C and after that the station will enter the standby mode, the LCD will show “--“. At the same time the fan and the heating elements will turn off automatically. Pick up the hot air gun and the station will enter the normal working condition automatically.

*OFF
To turn the station off keep “ON/OFF” button pressed for 4 seconds, the LCD will turn off. When the fan stops rotating it will mean that you can power off the station.

* When the station alarms
The display shows “S-E”. Check whether the heating element is damaged or the air gun connector is loose.

Display shows “S-E”, the fan is still rotating and the temperature is normal. Please return the hot air gun to the holder and let the temperature drop.

* Warning:

  1. Do not turn off the power. The station should enter the standby mode and after then turn off the power.
  2. Avoid using the rework station for too long under-high temperature condition.

Frequently Asked Questions

  • The rework station is not functioning, turns on, but not blowing air?

  • The rework station is not functioning, turns on, but not blowing air?
    The most common reason the rework station not functioning - the handle is placed on its holder. After the handle is placed on the holder the soldering station goes into standby mode and is ready for the working mode. Please follow user's manual for more details.
