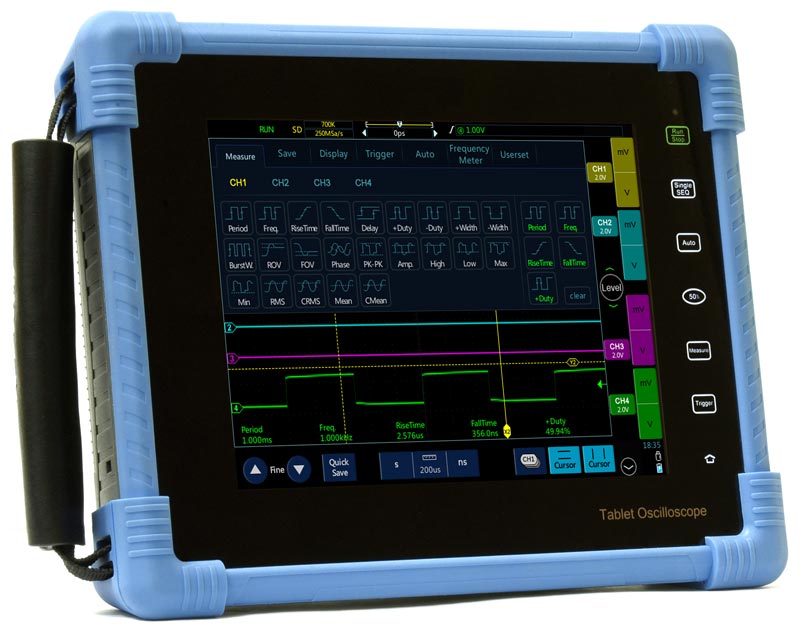

ADS-4572T Tablet Oscilloscope

Aktakom ADS-4000T series tablet oscilloscopes comparing to traditional oscilloscope models will make your work much simpler due to its compact design and excellent performance features.

Using multi-touch display you will easily select a channel, control the cursors, zoom the waveform and save it into the internal memory with your finger touch.

Features:

• Multi-touch 8” TFT display
• Embedded 6 digit frequency meter
• Auto measurements
• Cursor measurements
• Wide range of interfaces for the oscilloscope control and data storage
• Built-in 8G storage capacity (data can be saved to a USB driver)
• Ability to connect a computer mouse
• Ergonomic design
• Rechargeable Li-Ion battery (7.4 V 7500 mA*h)

Specifications:

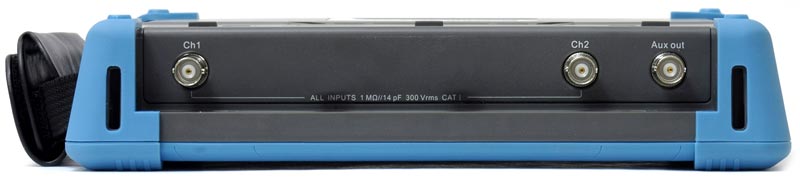

• Channel: 2
• Multi-touch 8” TFT display, high resolution (800*600), 256 intensity levels
• Bandwidth: 70 MHz
• Sample rate: 1 GSa/s
• Memory depth: 14 Mpts
• Max. capture rate: 80000 wfm/s
• ADC: 8 digits
• Vertical deviation coefficient: 1 mV/div – 10 V/div
• Triggering types: Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge, and Video
• Auto measurements: Period, Frequency, Rise time, Fall time, +Duty, -Duty, Delay (CH1 → Math, CH2 → Math, CH1 → CH2, CH2 → CH1), +Pulse width, -Pulse width, Burst width, +Overshoot, -Overshoot, Phase (CH1 → Math, CH2 → Math, CH1 → CH2, CH2 → CH1), Peak-Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, cycle RMS
• Cursor measurements: manual (ΔV, ΔT, 1/ΔT)

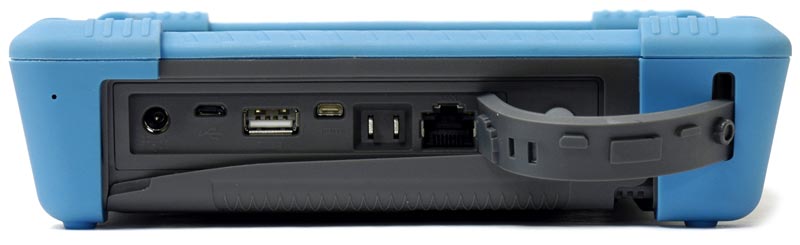

• Interfaces: USB 2.0, microUSB 2.0, LAN, microHDMI, Pass/Fail
• Dimensions: 9.8 x 8.3 x 2.2 in / 250 x 210 x 55 mm
• Weight: 2.3 lb / 1.04 kg
