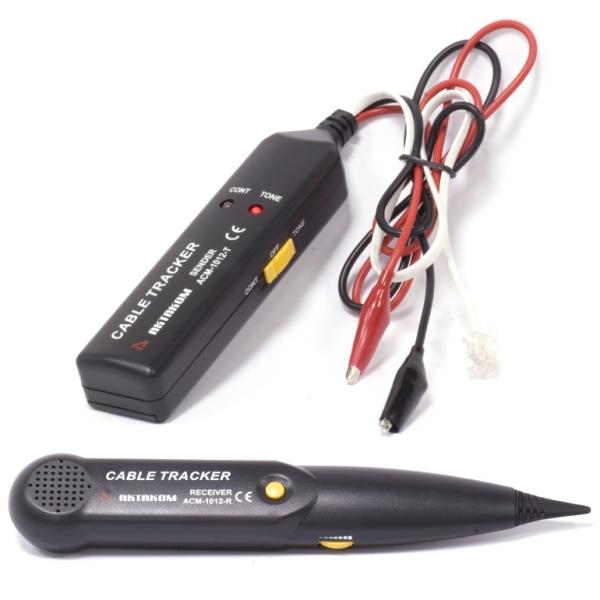

ACT-1012 Cable and line Tracker
ACT-1012 Cable and line Tracker
|
|
Detection and tracing of lines and cables without damaging the insulation. Continuity checking, location of the break/closure, inspection of the telephone line. The frequency of sending tone —1.5kHz. The frequency of receiving a dial tone — 100...150kHz. Supply: 9V.
Manuals:
|
|
AKTAKOM ACT-1012 Cable and line tracker is designed to detect and trace wires and cables in the process of laying, maintaining and repairing of telephone and digital lines.
Functions
- Continuity checking of cables or wires without damaging the insulation
- Cables and wires tracking and break/closure diagnosis and location, inspection of the telephone line.
- Receive the tone signal on cables or wires (telephone line)
- Identify the state in the working telephone line (clear, ring, busy)
Specifications
- Detection and tracing of lines and cables without damaging the insulation.
- Continuity checking, location of the break/closure, inspection of the telephone line.
- Send tone frequency: 1.5kHz
- Receive frequency range: 100...150kHz
- Power supply: 6F22 (9V)
- Receiver size: 238x43x26mm/9.3x1.7x1.1in
- Sender size: 145x35x25mm/5.7x1.4x1in
- Receiver weight: 106g/3.7oz (including battery)
- Sender weight: 114g/4oz (including battery)

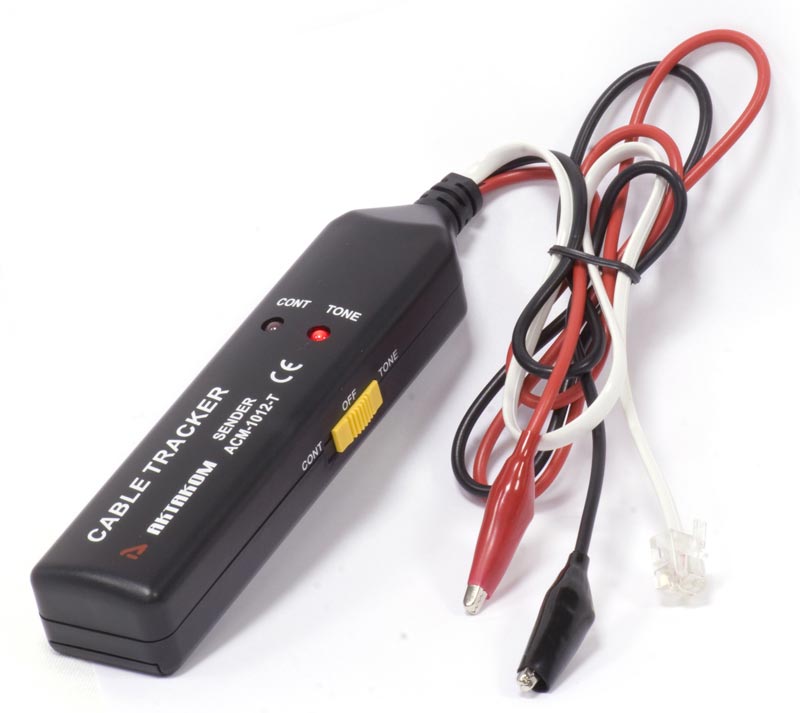

| ACT-1012 Cable and line Tracker - Sender |
|
|

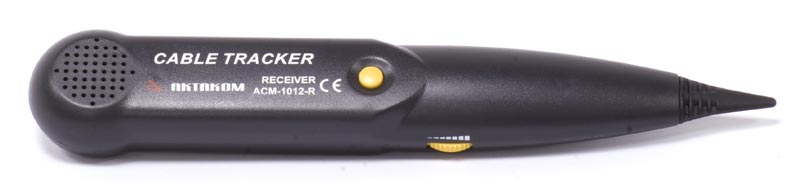

| ACT-1012 Cable and line Tracker - Receiver front view |
|
|

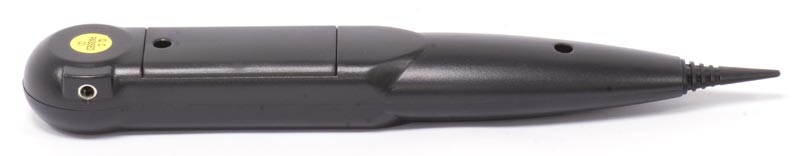

| ACT-1012 Cable and line Tracker - Receiver back side |
|
|
|

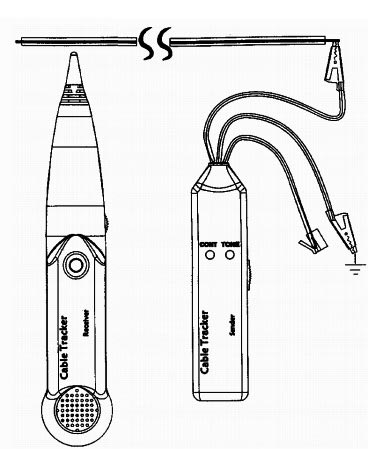

| ACT-1012 Cable and line Tracker - connection for continuity test scheme |
|
|
