ATE-2530 Infrared Thermometer

AKTAKOM ATE-2530 Infrared Thermometer detects infrared energy emitted by objects. Measurement Range: -20C ~ 537C / -4F ~ 999F. Laser Power: Less than 1 mW. Battery: 9Volt, 6F22. Size: 162×56×190mm / 6.4×2.2×7.5in.

Manuals:
AKTAKOM ATE-2530 Infrared Thermometer detects infrared energy emitted by objects. The instrument focuses energy through its lens, changing the temperature of a special material that creates an electrical signal. A microcomputer processes this signal and displays the output on the thermometer. The laser is used only for sighting the instrument and has no other effect on temperature measurement.

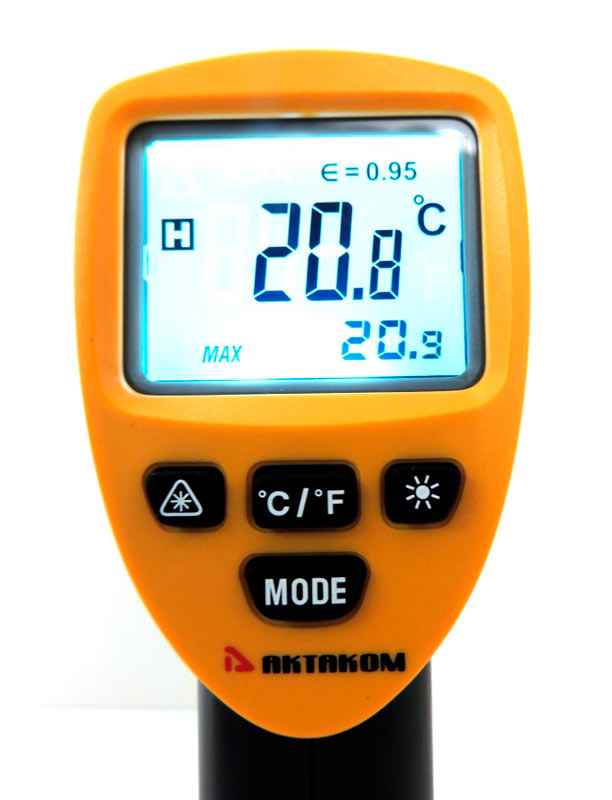

  • Laser-On Indicator
  • Holding indicator
  • The first temperature display
  • Low power indicator
  • Average value indicator
  • MAX/MIN indicator
  • The second temperature display
  • F temperature unit
  • C temperature unit
  • Emissivity display
  • Measurement indicator

Specifications

  • LCD Display: 2-temperature, 4 digits

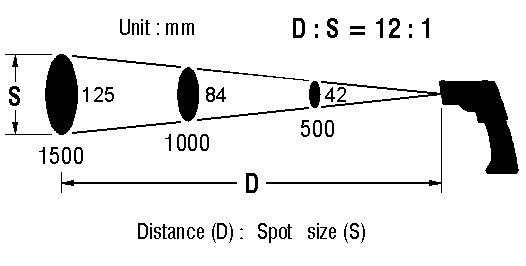

  • Distance to Spot Ratio: 12:1
  • Emissivity: Fixed at 0.95
  • Spectral Response: 8-14μm
  • Measurement Range: -20C ~ 537C / -4F ~ 999F
  • Alarming temperature range (ATE-2533): 30C ~ 535 C / 86F ~ 995F
  • Accuracy: -20C ~ 50C: 2.5C 50C ~ 537C (reading×1%+1C)
  • Response Time: 1.5 seconds
  • Laser Power: Less than 1 mW
  • Auto-off: After 10 seconds
  • Backlight: White
  • Operating Environment: 0~ 40C, 10~90%RH
  • Storage Environment: -10C ~ 60C, <75%RH
  • Battery: 9Volt, 6F22
  • Size: 162×56×190mm / 6.4×2.2×7.5in

Accessories

  • 9V battery
  • Operating manual

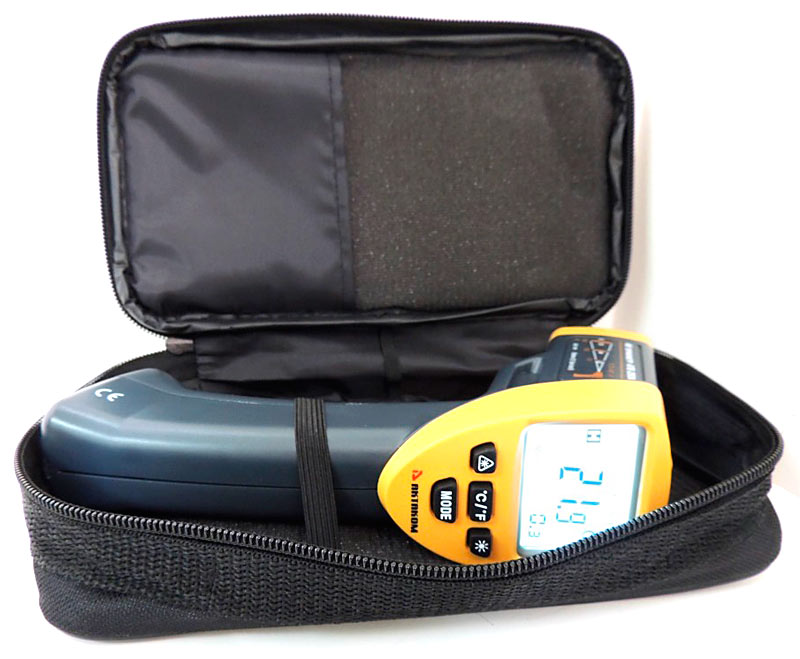

  • Carrying bag
