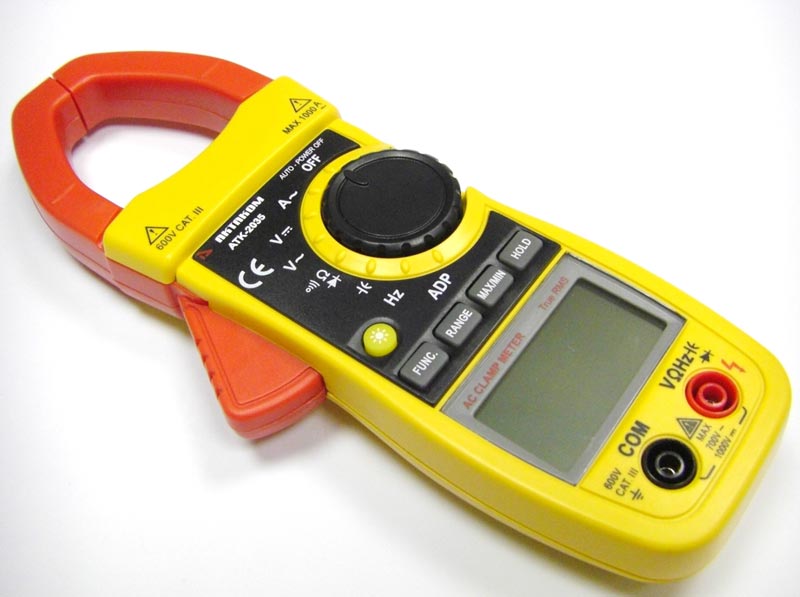

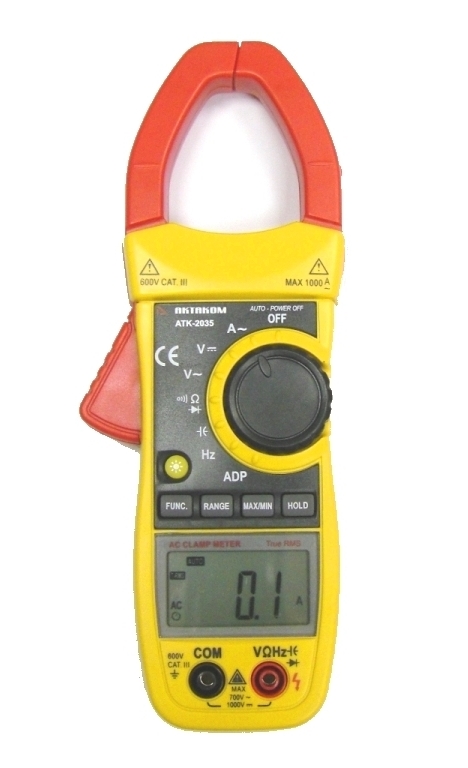

ATK-2035 Clamp Meter

Clamp meter with a multimeter function. Perfect tool for the work in electric control room. DC voltage: 6 V / 60 V / 600 V (accuracy: ±(0.8% + 5)); 1000 V (accuracy: ±(1.0% + 2)). AC voltage (40…400 Hz): 6 V / 60 V / 600 V / 700 V (accuracy: ±(1.2% + 5)). AC (50/60 Hz): 600 A (accuracy: ±(2.5% + 5)); 1000 A (accuracy: ±(3.0% + 5)). Resistance measurement: 600 Ohm / 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm (accuracy: ±(1.0% + 3)); 60 MOhm (accuracy: ±(5.0% + 5)). Frequency measurement: 40 Hz / 600 Hz / 6 kHz / 60 kHz / 100 kHz (accuracy: ±(0.1% + 2)). Basic accuracy: 0.8%. Max./Min. data hold. Dimensions: 8.9 x 2.4 x 1.3 in / 225 x 86 x 32 mm. Weight: 11.6 oz / 330 g.

Aktakom ATK-2035 clamp meter has a multimeter function (measurement of voltage, resistance, frequency etc.) due to which it’s a perfect tool for the work in electric control room.

This model is also suitable for the diagnostics of engines and other equipment.

Specifications


Range Accuracy

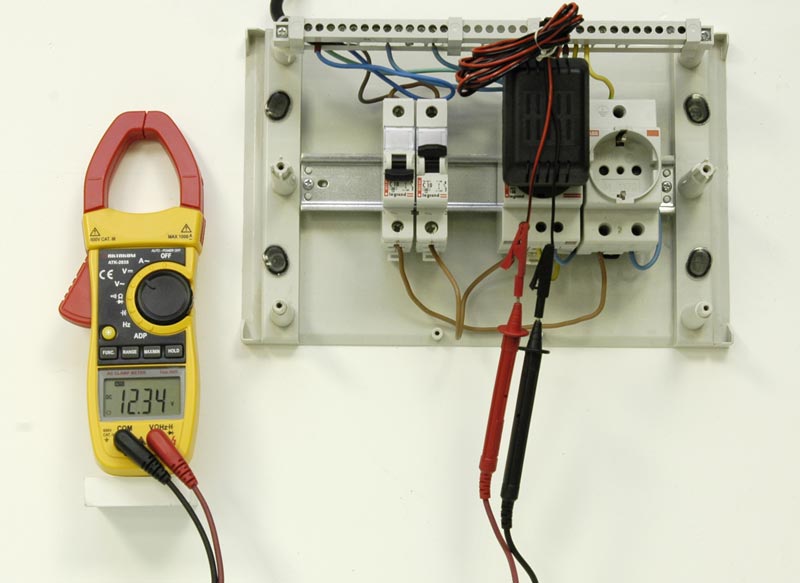

DC voltage
6 V / 60 V / 600 V ±(0.8% + 5)
1000 V ±(1.0% + 2)

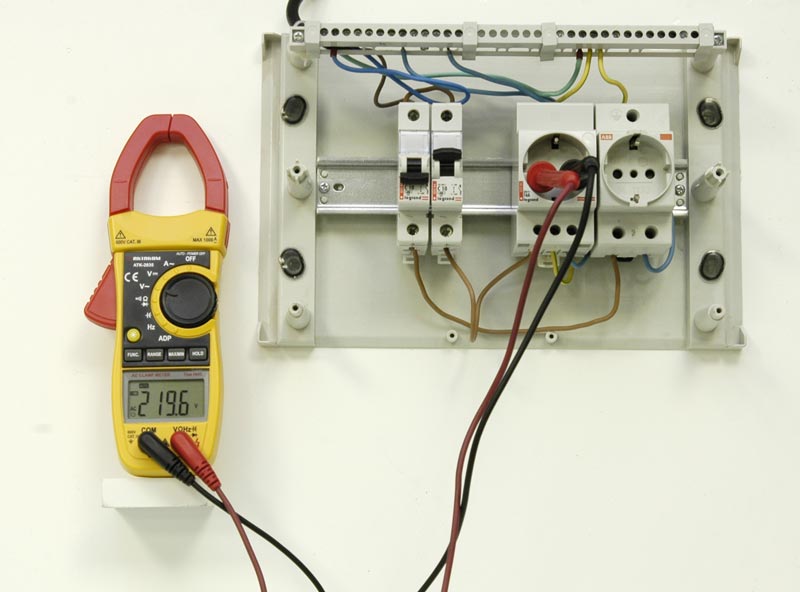

AC voltage (40…400 Hz) 6 V / 60 V / 600 V / 700 V ±(1.2% + 5)

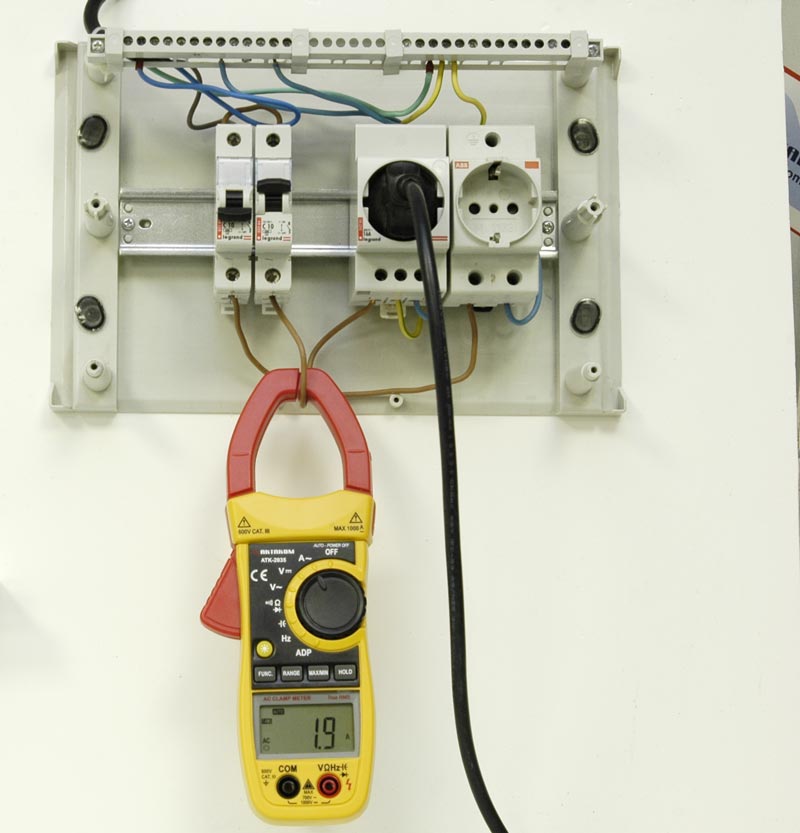

AC (50/60 Hz) 600 A ±(2.5% + 5)
1000 A ±(3.0% + 5)

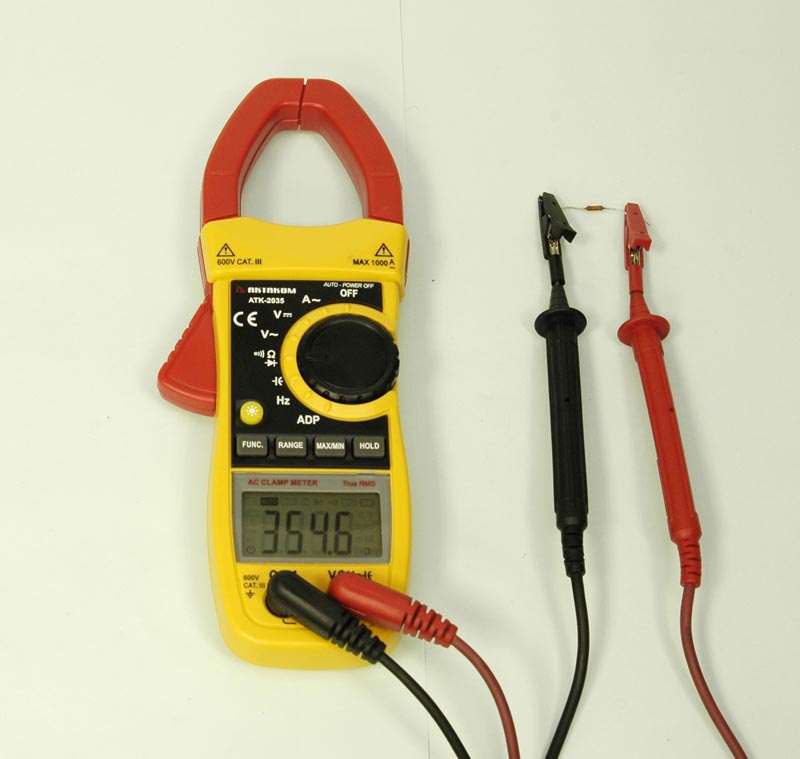

Resistance measurement
600 Ohm/ 6 kOhm / 60 kOhm / 600 kOhm / 6 MOhm ±(1.0% + 3)
60 MOhm ±(5.0% + 5)

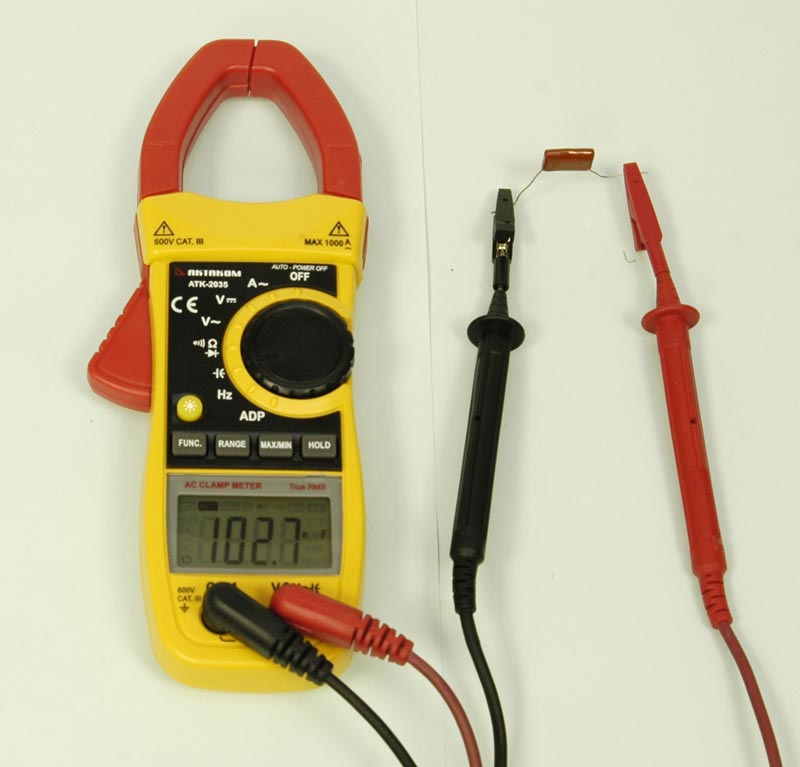

Capacity measurement
600 nF ±(5.0% + 8)
6 µF / 60 µF / 600 µF ±(4.0% + 5)
1000 µF ±(5.0% + 8)
ADP 600 mV ±(3.0% + 5)

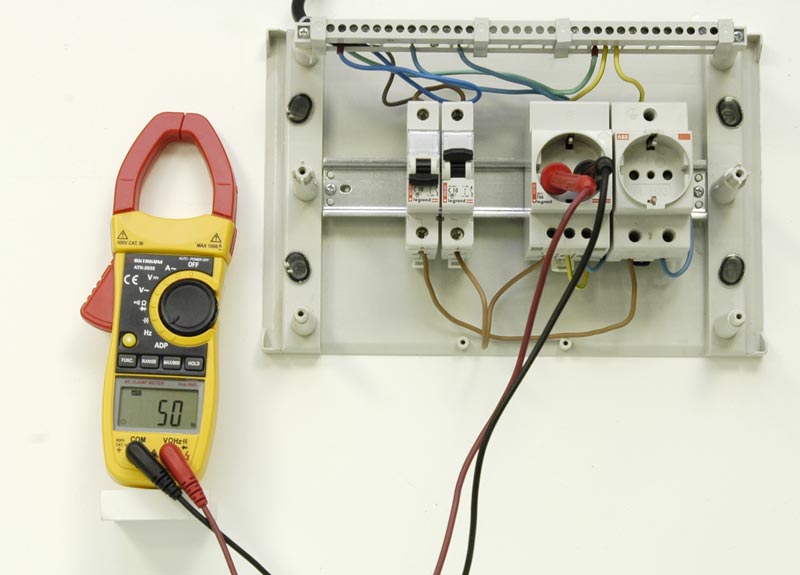

Frequency measurement
40 Hz / 600 Hz / 6 kHz / 60 kHz / 100 kHz ±(0.1% + 2)

  • Basic accuracy: 0.8%
  • Max. coverage: 1.7 in / 42 mm
  • LCD with a backlight: 5999
  • Max./Min. data hold
  • Auto or manual selection of ranges
  • Auto power off

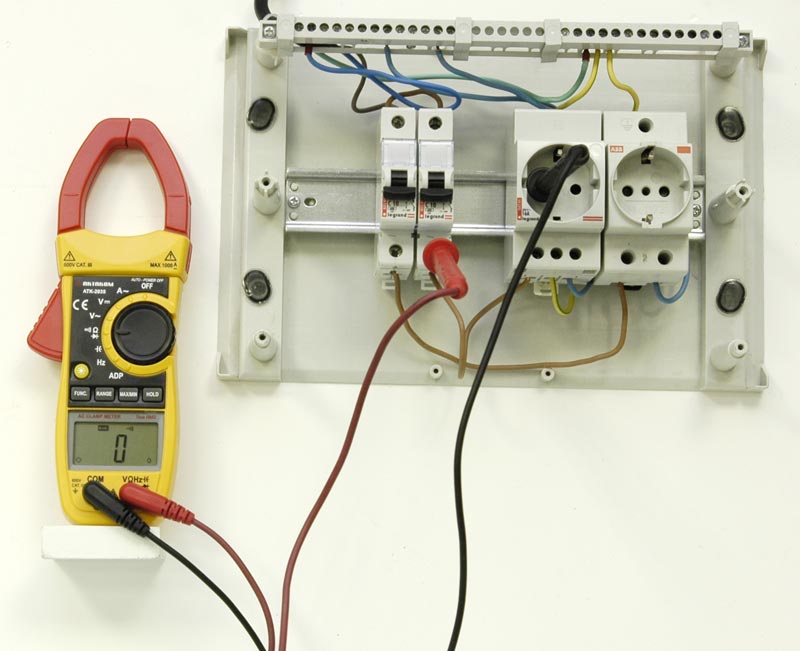

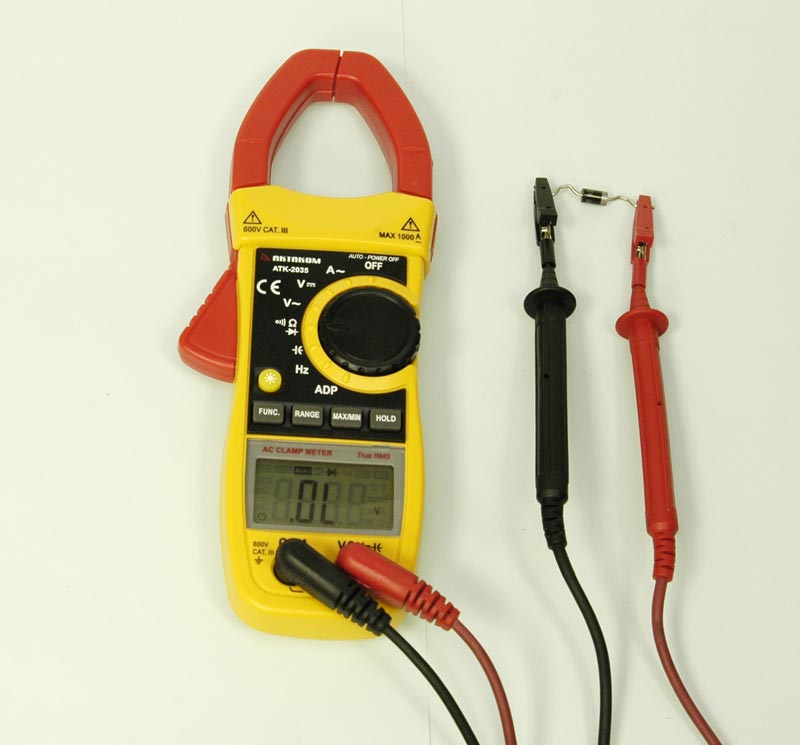

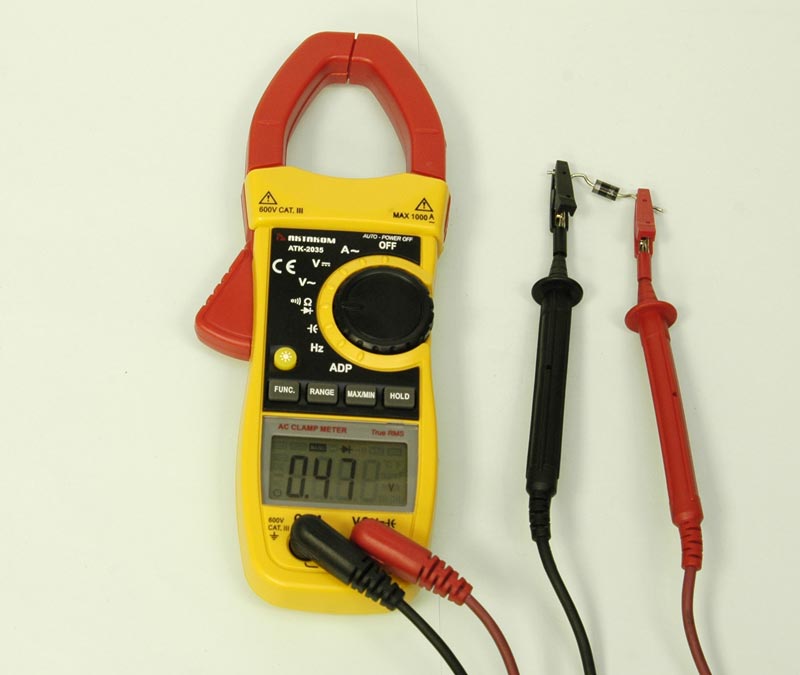

  • Continuity test / diode test
  • Power: 3 x 1,5 V (triple A)
  • Dimensions: 8.9 x 2.4 x 1.3 in / 225 x 86 x 32 mm
  • Weight: 11.6 oz / 330 g

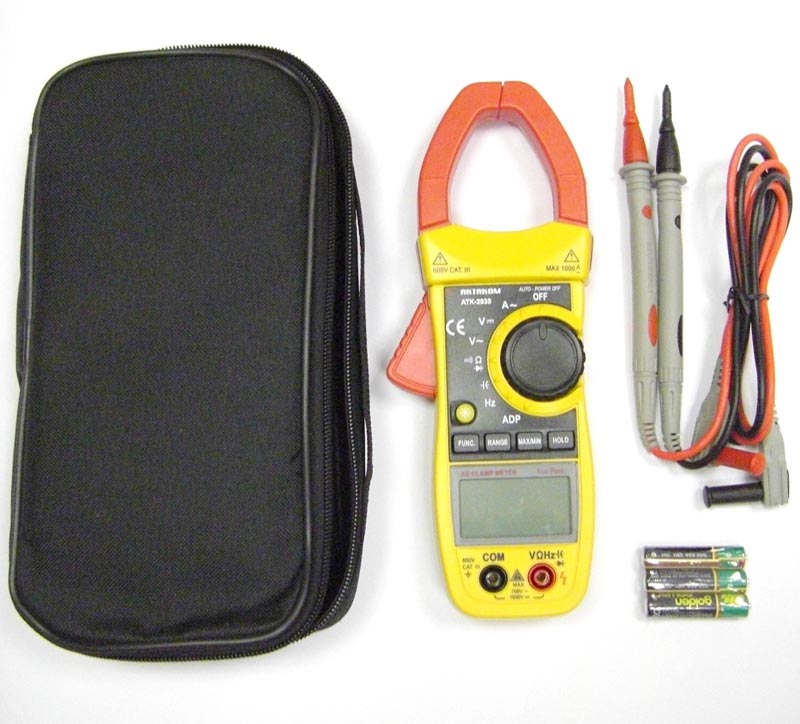

Standard accessories

  • User manual
  • Measuring probes
  • 1.5 V batteries – 2 pcs
  • Soft carrying case
