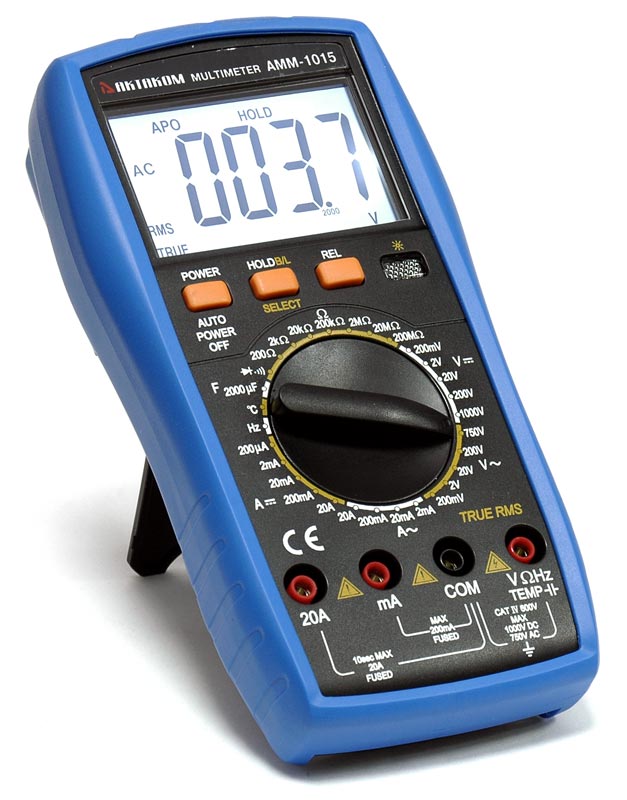

AMM-1015 Digital Multimeter

TrueRMS (40 Hz ~ 1000 Hz). LCD, 4 1/2 digits (19999). DCV 1000 V ±(0.1%+5); ACV 750 V ±(0,8%+25); DC 20 A ±(0.8%+5); AC 20 A ±(0,8%+5); resistance 200 MOhm ±(0.5%+10); capacity 2000 µА ±(4%+50); frequency 10 MHz (0.1%+50); temperature -20°C ~ 1000°C ±(1.0%+5°C); diode / continuity test. Dimensions: 7.5 x 3.5 x 1.1 in / 190 x 88.5 x 27.5 mm. Weight: approx. 12.4 oz / 350 g.

High performance Aktakom AMM-1015 digital multimeter is capable of measuring DCV, ACV, DCA, ACA, resistance, capacitance, temperature, frequency, diode and continuity test.

This model is perfect for laboratories, factories and radio technology.

Specifications

  • LCD with the backlight: 4 1/2 digits, 19999
  • TrueRMS measurements (40 Hz...1 kHz)
  • Sampling rate: approx. 3 times/sec
  • Basic inaccuracy: 0,1%
  • Input impedance: 10 MOhm
  • Auto and manual selection of the ranges
  • Current data hold
  • Low battery indication
  • Auto power off (15 minutes)

DCV

Range Resolution Accuracy Input impedance Protection
200 mV 0.01 mV 0.1%+5 1 MOhm 250 V DC or ACpeak
2 V 0.0001 V 10 MOhm 1000 V DC or ACpeak
20 V 0.001 V
200 V 0.01 V
1000 V 0.1 V 0.2%+5

ACV (True RMS 40 Hz-1000 Hz)

Range Resolution Accuracy Input impedance Protection
2 V  0.001 V 0.8%+25 10 MOhm 1000 V DC or ACpeak
20 V 0.01 V
200 V 0.1 V
750 V 1 V 1.0%+25

Frequency range:
40-1000 Hz for sine and triangular waves at 2 V/ 200 V/200 V ranges
40-200 Hz at all ranges for the rest of the waveforms and at 750 V for sine and triangles waves.

DCA

Range Resolution Accuracy Input impedance
200 µA 0.01 µA 0.8%+5 0.2 A / 250 V fuse
2 mA 0.0001 mA
20 mA 0.001 mA
200 mA 0.01 mA
20 A 0.001 A 2.0%+15 20 A / 250 V fuse

At range "20 A": The measurement of 5 A current without limiting the measurement time, from 5 A to 20 A – not more than 10 sec. with a 5 minute break.

ACA (True RMS 40 Hz-1000 Hz)

Range Resolution Accuracy Input impedance
2 mA 0.1 µA 0.8%+5 0.2 A / 250 V fuse
20 mA 0.001 mA
200 mA 0.01 mA
20 A 0.01 A 2.0%+15 20 A / 250 fuse

At range "20 A": The measurement of 5 A current without limiting the measurement time, from 5 A to 20 A – not more than 10 sec. with a 5 minute break.

Max. voltage drop is 200 mV.

Resistance measurement

Range Resolution Accuracy Input impedance
200 Ohm 0.01 Ohm 0.5%+10 250 V DC or ACpeak
2 kOhm 0.1 Ohm 0.5%+8
20 kOhm 1 Ohm
200 kOhm 10 Ohm
2 MOhm 100 Ohm
20 MOhm 1 kOhm
200 MOhm 10 kOhm 5%+10

Open circuit voltage: <3 V

Capacitance

Range Resolution Accuracy Input impedance
20 nF 1 pF 4%+50 36 V DC or ACpeak
200 nF 10 pF 5%+20
2 µF 100 pF
20 µF 1 nF
200 µF 10 nF
2000 µF 100 nF

Frequency

Range Resolution Accuracy Input impedance
10 Hz 0.001 Hz 0.1%+5 250 V DC or ACpeak
100 Hz 0.01 Hz
1 kHz 0.1 Hz
10 kHz 1 Hz
100 kHz 10 Hz
1 MHz 100 Hz

Input sensitivity: 1.5Vrms.

Temperature

Range Resolution Accuracy
-20°C ~ 400°C 1 °C 1.0%+5°C
400°C ~ 1000°C 1.5%+5°C

Diode and continuity test

Mode Displayed value Test conditions
Diode tests Direct drop of the diode voltage (mV) Direct current: 1 mA.
Reverse voltage: approx. 3 V.
Continuity test Continuous sound signal if the resistance is <50 Ohm ± 20 Ohm Open circuit voltage is < 3 V
  • Power supply: 9 V
  • Dimensions: 7.5 x 3.5 x 1.1 in / 190 x 88.5 x 27.5 mm
  • Weight: approx. 12.4 oz / 350 g.
