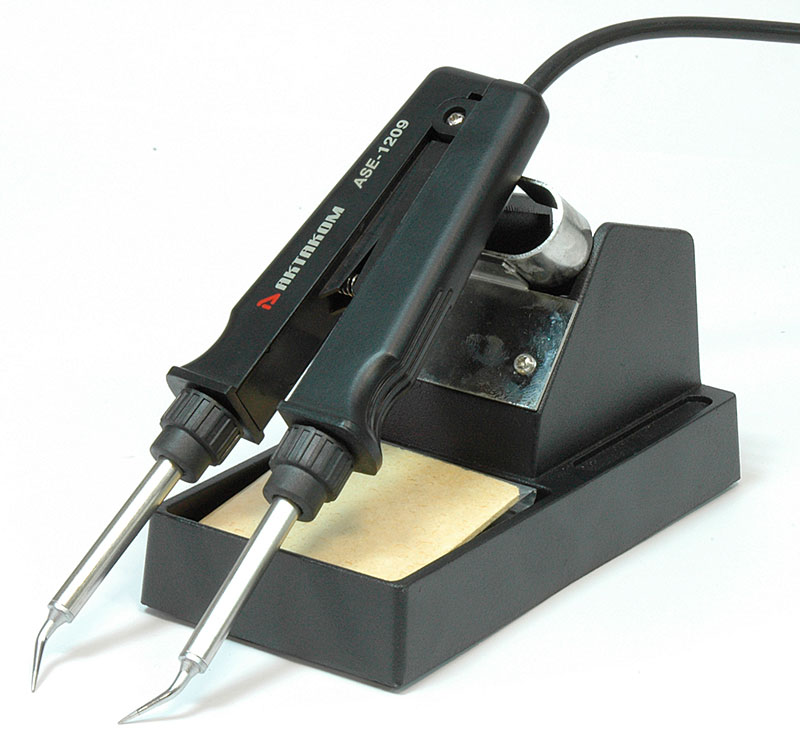

ASE-1209 Soldering Tweezers
ASE-1209 Soldering Tweezers
|
|
Soldering Tweezers for SMD component removal. Used with several types of soldering stations.
Manuals:
|
|
To use the Soldering Tweezers connect it to ASE-1107 soldering station
Features
- ESD safe design.
- Twin-tube heating comes into contact with the components directly without affecting adjacent components.
- Especially suitable for rework on component-densely-mounted circuit board.
- Suitable for mounting on several types of soldering stations.
- Can remove flake resistor and condenser and SOP elements safely.
Specifications
- Power: 24V AC
- Power Consumption: 25W*2
- Heating Element: Ceramic Heater
- Tip to grounded resistance: under 2Ω
- Tip to grounded Potential: under 2 mV
- Max temperature: 400°C
Accessories
- Soldering Tweezers with A-1389 tip
- Soldering Tweezers holder
- Tip cleaning sponge (in the base)
- Heat-resistant grip for tip changing
- User manual
Optional Tips for ASE-1209
|
Size A (B) x Length, mm
|
A
|
Length
|
Model
|
Type
|
|
CHIP
|
|
|
1,0
|
13,0
|
A-1379
|
CHIP 1L
|
|
2,0
|
13,0
|

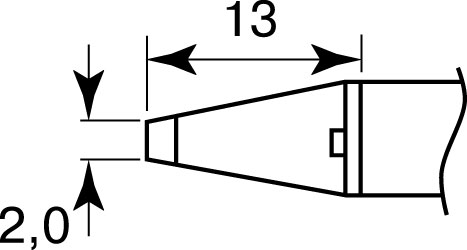

A-1378
|
CHIP 2L
|
|

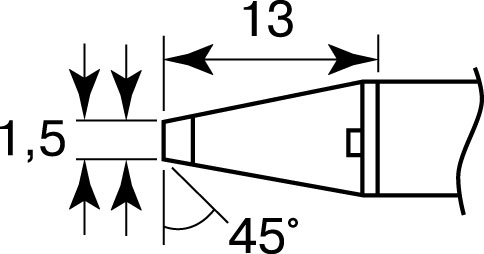

1,5 (0,5)
|
13,0
|
A-1388
|
CHIP 0.5C
|
|
R 0,25
|
18,5
|

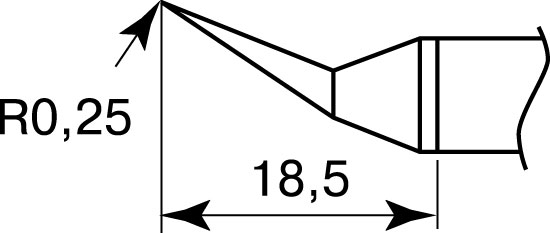

A-1389
|
CHIP 0.51
|
|

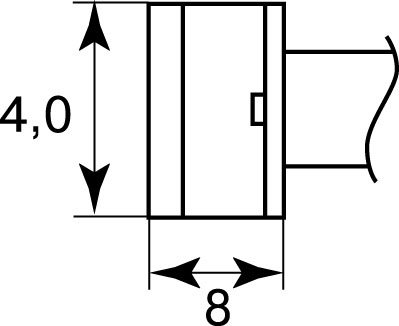

SOP
|
|
|
4,0
|
8,0
|
A-1390
|
SOP 4L
|
|
6,0
|
8,0
|
A-1391
|
SOP 6L
|
|
8,0
|
8,0
|
A-1380
|
SOP 8L
|
|
10,0
|
8,0
|
A-1381
|
SOP 10L
|
|
13,0
|
8,0
|
A-1382
|
SOP 13L
|
|
15,0
|
8,0
|
A-1392
|
SOP 15L
|
|
18,0
|
8,0
|
A-1383
|
SOP 18L
|
|
20,0
|
8,0
|
A-1384
|
SOP 20L
|
|
25,0
|
8,0
|
A-1385
|
SOP 25L
|

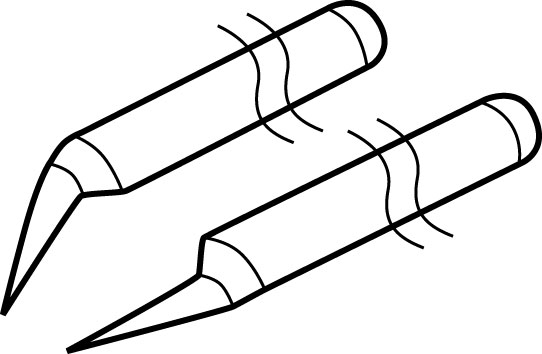

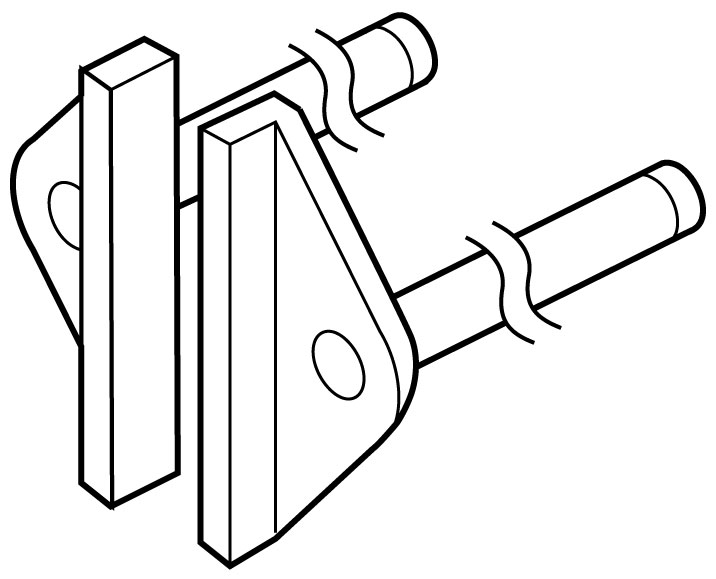

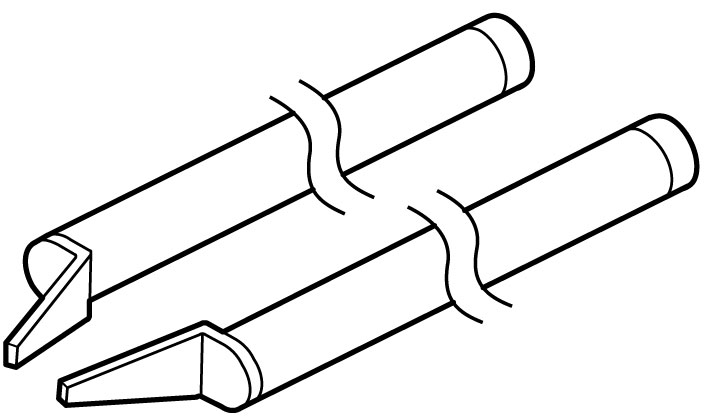

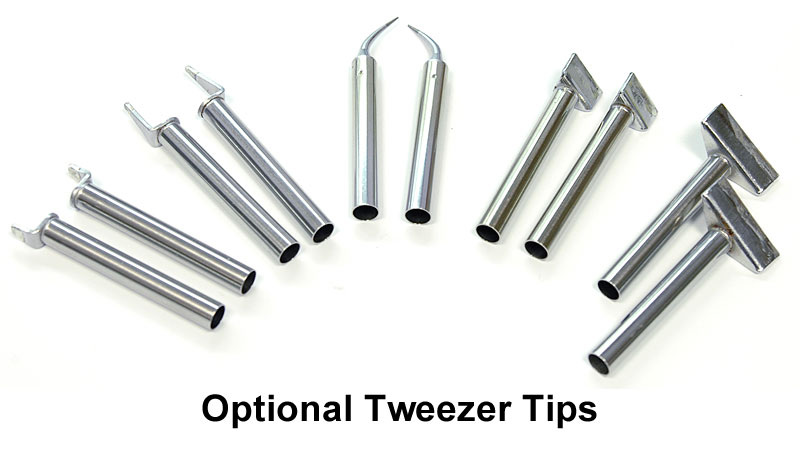

| ASE-1209 Soldering Tweezers - Optional Tweezer Tips |
|
|

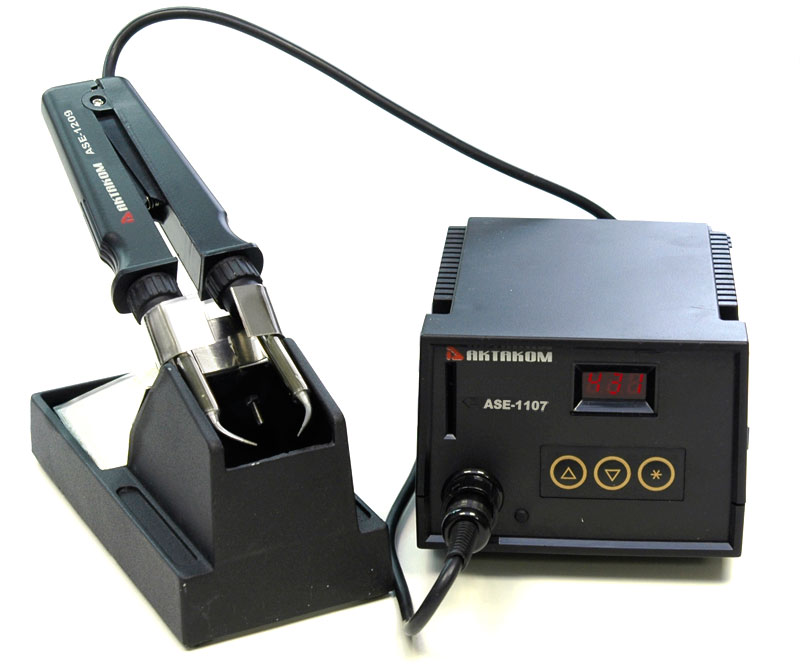

| ASE-1209 Soldering Tweezers - with ASE-1107 Soldering Station |
|
|

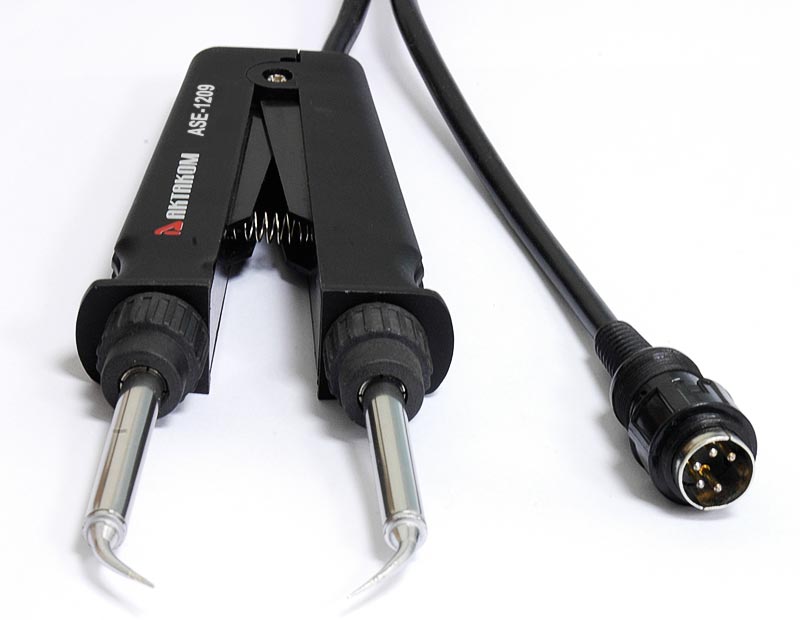

| ASE-1209 Soldering Tweezers - with connector |
|
|
|

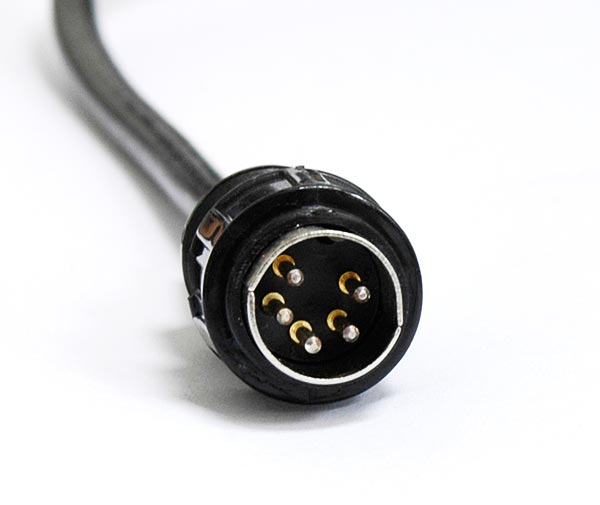

| ASE-1209 Soldering Tweezers - connector |
|
|
Safety instructions
Take care of yourself!
- Please read user manual carefully before using the instrument.
- Do not use the device if there is visible damage.
- Repair and maintenance of the device can be done only by a qualified specialist of the service center.
- Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
- Use only those accessories that are intended for use with this device.
- While working, do not touch the metal parts near the tip of the soldering iron.
- After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

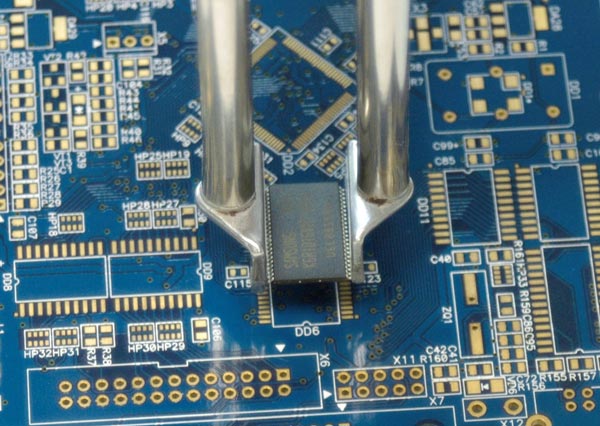

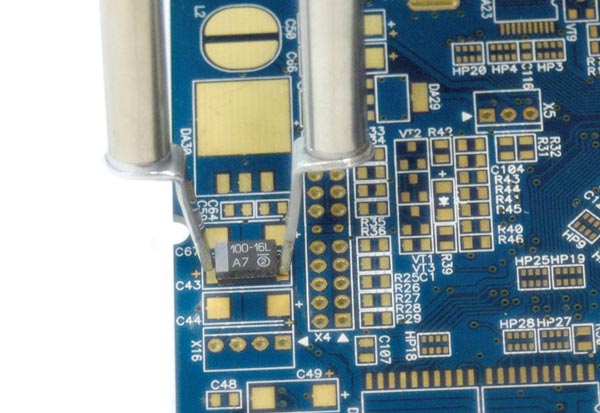

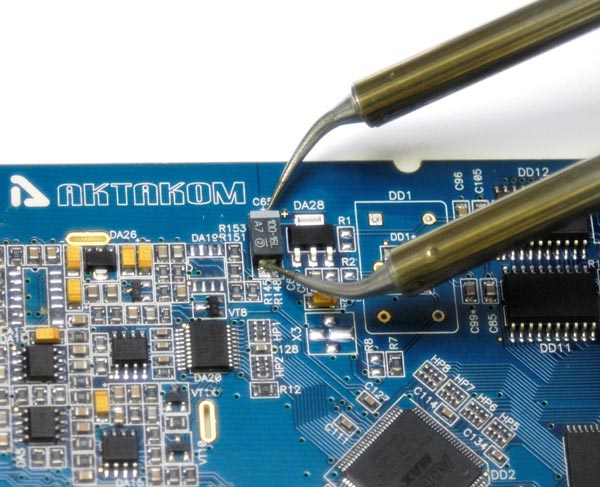

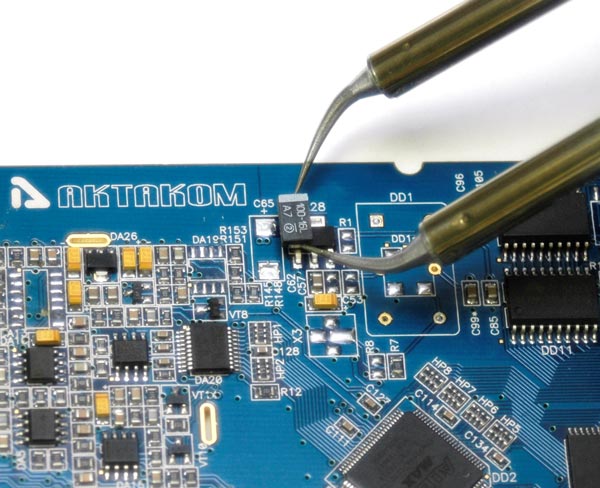

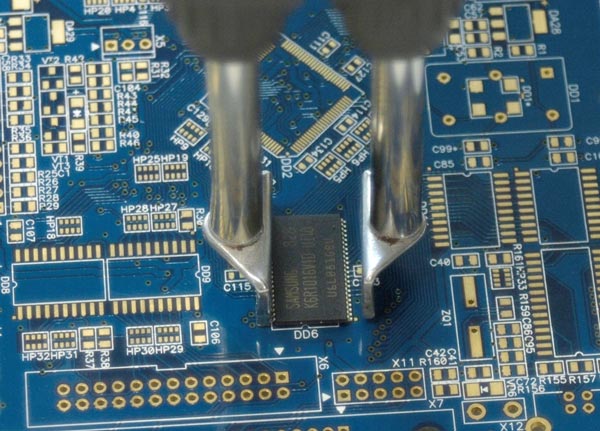

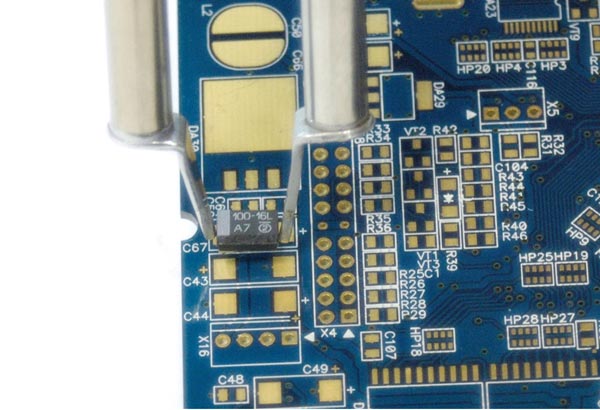

SMD components removal with ASE-1209 Soldering Tweezers
