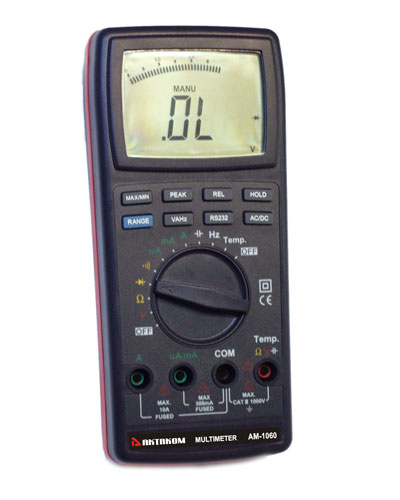

AM-1060 Digital Multimeter
AM-1060 Digital Multimeter
|
|
Handheld digital multimeter. Measurement: DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity beeper. A/D counts no.: 4000 counts. Range selection: auto range with manual range selecting. Zero adjustment: automatic. Sampling time: approx. 0.5 to 1 second. Operating temperature: 0°C to 50°C (32°F to 122°F). Operating humidity: Max. 80%RH. Power supply: 1.5V battery x 2 PCs UM-4/AAA/Micro/R03 type. Power consumption: approx. DC 2.5mA
Manuals:
|
|
AKTAKOM AM-1060 digital multimeter provides multi function measurement: DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity beeper.
Features:
- Meet IEC 1010 CATIII 1000V
- Large LCD display with bar graph indication and frequency measurement path
- Max./Min., Peak value, Relative, Data hold
- Auto range with manual range selection
- °C/°F thermometer
- VAHz button, when execute the ACV, ACA function also can measure the frequency of signal
- 4000 counts A/D, high resolution
- Built-in fuse for both 10A, mA, uA current range
- 10Mohm input impedance for voltage circuit
- Full line optional adapters
Specifications
|
Function
|
Range
|
Resolution
|
Accuracy
|
DC Voltage
|
400mV
|
0.1mV
|
±(0.5%reading+2digits)
|
|
4V
|
0.001V
|
±(0.8%reading+1digits)
|
|
40V
|
0.01V
|
|
400V
|
0.1V
|
|
1000V
|
1V
|
|
AC Voltage (50/60Hz)
|
400mV
|
0.1mV
|
±(1.0%reading+2digits)
|
|
4V
|
0.001V
|
|
40V
|
0.01V
|
|
400V
|
0.1V
|
|
1000V
|
1V
|
DC Current
|
400uA
|
0.1uA
|
±(1.5%reading+2digits)
|
|
4000uA
|
1uA
|
|
40mA
|
0.01mA
|
±(1.0%reading+2digits)
|
|
400mA
|
0.1mA
|
±(1.5%reading+2digits)
|
|
10A
|
0.01A
|
±(1.0%reading+2digits)
|
|
AC Current (50/60Hz)
|
400uA
|
0.1uA
|
±(1.5%reading+2digits)
|
|
4000uA
|
1uA
|
|
40mA
|
0.01mA
|
±(1.0%reading+2digits)
|
|
400mA
|
0.1mA
|
±(1.5%reading+2digits)
|
|
10A
|
0.01A
|
±(1.0%reading+2digits)
|
|
Resistance
|
400Ω
|
0.1Ω
|
±(1.0%reading+2digits)
|
|
4kΩ
|
1Ω
|
±(1.5%reading+2digits)
|
|
40kΩ
|
10Ω
|
|
400kΩ
|
100Ω
|
|
4MΩ
|
1kΩ
|
|
40MΩ
|
10kΩ
|
±(3.0%reading+5digits)
|
|
Continuity buzzer: <20Ω ; Max Voltage 500V (DC) / 250V (AC rms)
|
|
Capacitance
|
4nF
|
0.001nF
|
±(3.0%reading+1digits)
|
40nF
|
0.01nF
|
400nF
|
0.1nF
|
|
4uF
|
0.001uF
|
40uF
|
0.01uF
|
|
400uF
|
0.1uF
|
|
4mF
|
0.001mF
|
±(4.0%reading+1digits)
|
|
40mF
|
0.01mF
|
±(12.0%reading+1digits)
|
Frequency (response 1.5V...5V)
|
4kHz
|
0.001kHz
|
±(0.5%reading+2digits)
|
|
40kHz
|
0.01kHz
|
|
400kHz
|
0.1kHz
|
|
4MHz
|
1kHz
|
|
40MHz
|
10kHz
|
Temperature
(K-type)
|
-20°C...300°C
|
1°C
|
±(1.0%reading+2digits)
|
|
301°C...750°C
|
1°C
|
±(3.0%reading)
|
General specifications
Display: 2.6x2in/65x48mm large LCD (4000 counts) display with bar graph indication and frequency measurement path
Range selection: Auto range with manual range selecting
Data hold: To freeze the display reading on the LCD display
Auto Power Off: this function can be disabled.
Memory recall: Records Maximum & Minimum readings with recall
Peak value: To measure the signal peak value (>1ms)
Relative measurement: To offset the measurement value
Polarity: Automatic Switching, "-" indicates negative polarity
Zero adjustment: Automatic
Sampling time: Approx. 0.5 to 1 second
Input impedance: 10Mohm.
Operating temperature: 0°C to 50°C (32°F to 122°F)
Operating humidity: Max. 80%RH.
Power supply: 1.5V battery x 2 PCs UM-4/AAA/Micro/R03 type
Power consumption: Approx. DC 1.7mA
Dimensions: 7.3x3.5x1.6in/185x88x40mm
Weight: 0.77lb/350g
Standard accessories
Optional accessories
- Full line adapters: ACA/DCA current adapter, adapter, Tachometer adapter, Humidity adapter, Pressure adapter, Light adapter, EMF adapter, Sound level adapter, High voltage probe
- Soft carrying case
- Temperature probe

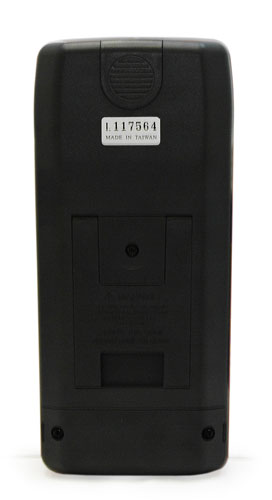

| AM-1060 Digital Multimeter - rear view |
|
|

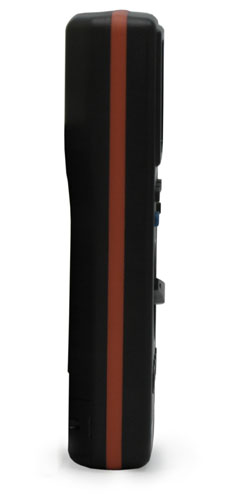

| AM-1060 Digital Multimeter - side view |
|
|

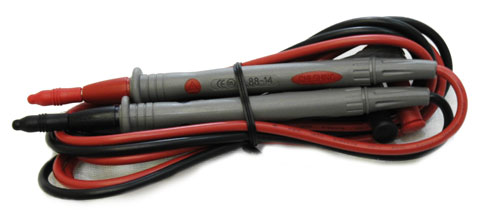

| AM-1060 Digital Multimeter - test leads |
|
|
|
| AM-1060 Digital Multimeter - 0.5 Amp Extra Spare Fuse (fixed inside chassis) |
|
|
Frequently Asked Questions
How DMM is designed (disassembled view)
How to replace or install the batteries?
Does AKTAKOM AM-1060 multimeter have auto power off function?
How can I deactivate Auto Power Off function of AKTAKOM AM-1060 multimeter?

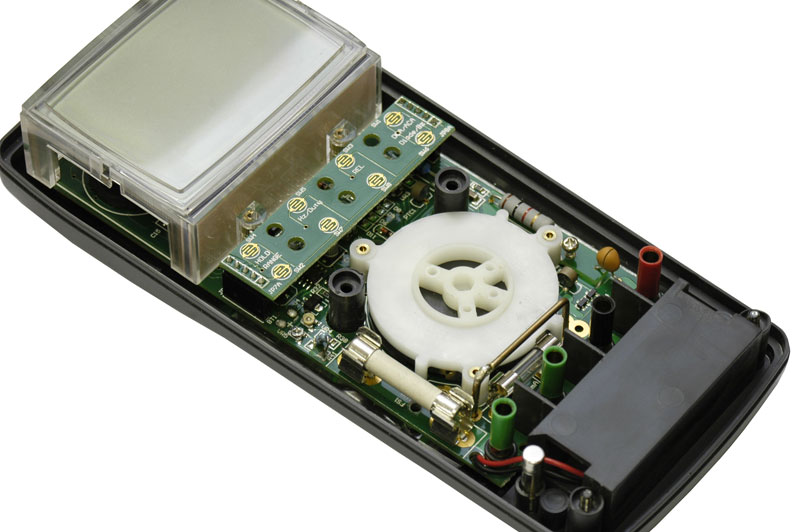

| How DMM is designed (disassembled view) |
|
Front panel covers LCD, button board, rotary function switch gear and main plated circuit board:
*Rubber strip between the back and front chassis covers protects from water and dust.
Protective fuses are mounted near the inputs and sound buzzer is placed behind the LCD.
*There is also an extra fuse fixed at the buttom (for several models)
Up
|
| How to replace or install the batteries? |
|
When the batteries become exhausted or drop below the operating voltage, “BAT” indicator will appear in the LCD display. In this case the battery should be replaced, however in-spec. measurements may still be made for several hours after "Low battery indicator" appears before the instrument become inaccurate.
WARNING! To avoid electric shock, disconnect the test leads from any source of voltage before removing the battery cover.
"DC 9V" type 006 P (e.g. AMM-1061)
1. Open the battery cover by loosing the screws with the cross-point screwdriver

2. Carefully disconnect the old battery

3. Connect the new battery of the proper type to the power leads
4. Close the battery cover and reinstate the cover

"DC 1.5V" type AAA (e.g. AMM-1060)
1. Open the battery cover by loosing the screws with the cross-point screwdriver

2. Carefully pull out the buttery carrier and take off the old batteries

3. Plug the new batteries of the proper type in the holder and put it back

4.Close the battery cover and reinstate the cover

After completion make sure you don’t have any spare parts
If you do find spare parts, you must start all over
Up
|
| Does AKTAKOM AM-1060 multimeter have auto power off function? |
|
Yes, it does. There is Auto Power Off function in AM-1060: the device power automatically goes off if you do not use the device within 15 minutes. 30 seconds before the device powers off it will make 3 short sound signals and before powering off – one more long signal. To start the operation again press any button or use the rotary switch.
Up
|
| How can I deactivate Auto Power Off function of AKTAKOM AM-1060 multimeter? |
|
To deactivate Auto Power Off function press RS232 button.
Up
|
