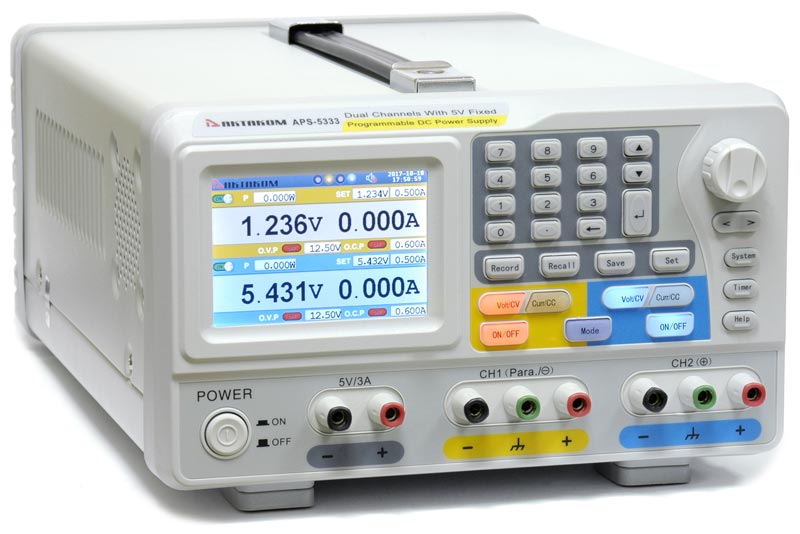

APS-5333 Programmable DC Power Supply

3-channel programmable DC power supply. Rated Output Voltage: 0~30V x2; 0~5V x1. Rated Output Current: 0-3A x3. Output resolution: 1mV/1mA. Outstanding line regulation rate:≤0.01%+2mV (voltage), ≤0.01%+1mA (current). Ripples noise:<300 μVrms/2mVp. Four operating mode: independent, parallel connection, series connection, plus-minus. 3.9" (480*320 pixels) TFT LCD display. Interface: USB 2.0, RS-232.

Manuals:
User's Manual (2.05 Mb)

AKTAKOM APS-5333 is a high-performance programmable linear DC power supply. The excellent features of this power supply include up to 100 output groups with configurable timer, high-resolution LCD display, extremely clean ripple and noise, comprehensive over-voltage over-current over-temperature protection, user friendly interface and panel layout, and variety standard interfaces to meet diverse test requirements.

Features

  • Dual independent outputs with Separate controls and one fix output supplies up to 195W total power
  • Two controllable channels with switch for operation conveniency
  • Highest output resolution: 1mV/1mA
  • Insulation between three output channels effectively reduce the interference
  • Outstanding line regulation rate:≤0.01%+2mV (voltage), ≤0.01%+1mA (current)
  • low ripples noise:<300 μVrms/2mVpp
  • Four operating mode: independent, parallel connection, series connection, plus-minus
  • Over-voltage over-current protection: the parameters of over-voltage and over-current are configurable to enhance the load protection
  • Up to 100 groups timers and predefine or unlimited output loop to generate arbitrary waveforms
  • Up to 30 groups preset system configurations
  • Auto-cooling system
  • 3.9 inch high resolution (480*320 pixels) TFT LCD display

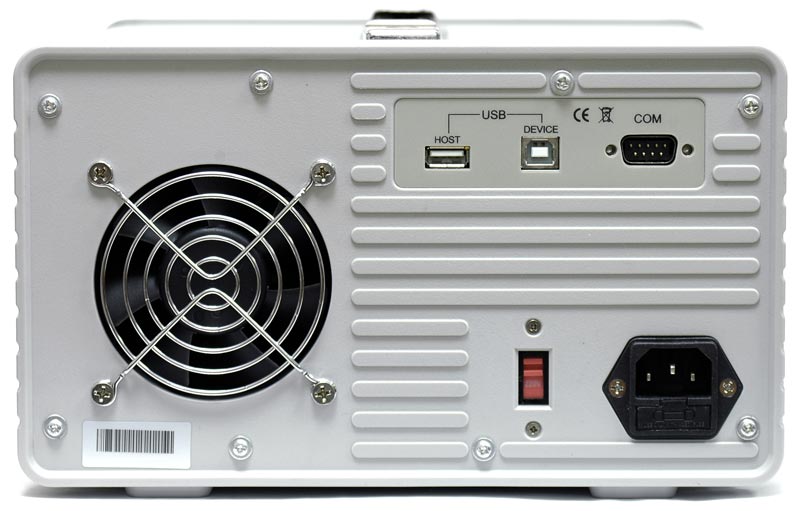

  • Multiple Interface: USB 2.0 RS-232

Specifications

Channel Channel 1/Channel 2 Fixed 5V
DC Output Ratings Voltage Independent/Parallel 0∼30V 5V
Series 0∼60V
Plus-minus -30V∼30V
Current Independent/Series/Plus-minus 0∼3A 3A
Parallel 0∼6A
Line Regulation CV ≤0.01% + 3mV ≤3mV
CC ≤0.1% + 3mA
Load Regulation CV ≤0.01% + 3mV ≤0.1%+3mV
CC ≤0.2% + 3mA
Noise and Ripple
(20Hz∼7MHz)
CV ≤300μVrms / 2mVpp ≤300μVrms / 2mVpp
CC ≤3mArms
Settings Resolution Voltage 1mV None
Current 1mA None
Settings Accuracy
(25°C±5°C)
Voltage ≤0.05% + 1mV None
Current ≤0.1% + 1mA None
Read Back
Resolution
Voltage 1mV (<10V) 10mV (≥10V) None
Current 1mA None
Read Back Accuracy
(25°C±5°C)
Voltage ≤0.05% + 1mV(<10V) ≤0.05% + 10mV(≥10V) None
Current ≤0.1% + 1mA None
  • Display Type: 3.9 inch colored LCD
  • Display Resolution: 480 (Horizontal) × 320 (Vertical) Pixels
  • Display Colors: 65536 colors, TFT screen
  • Dimensions: 19x9x13in / 480x230x330mm
  • Weight:13.8lb / 6.2kg

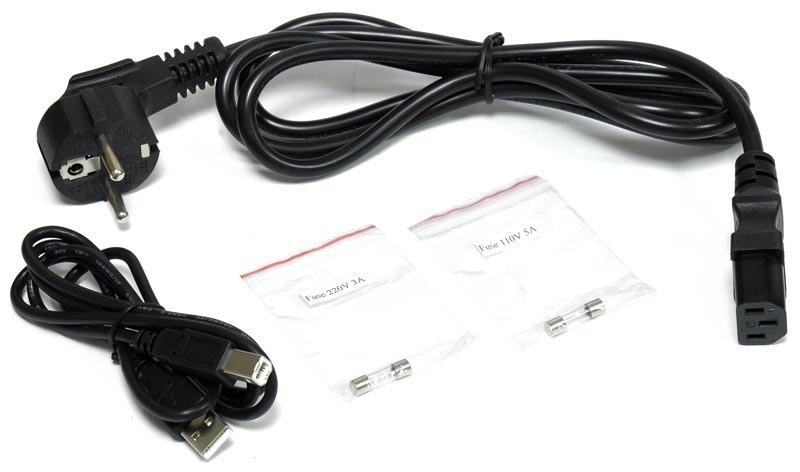

Accessories

  • Power Cord

  • CD-ROM

  • USB data cable

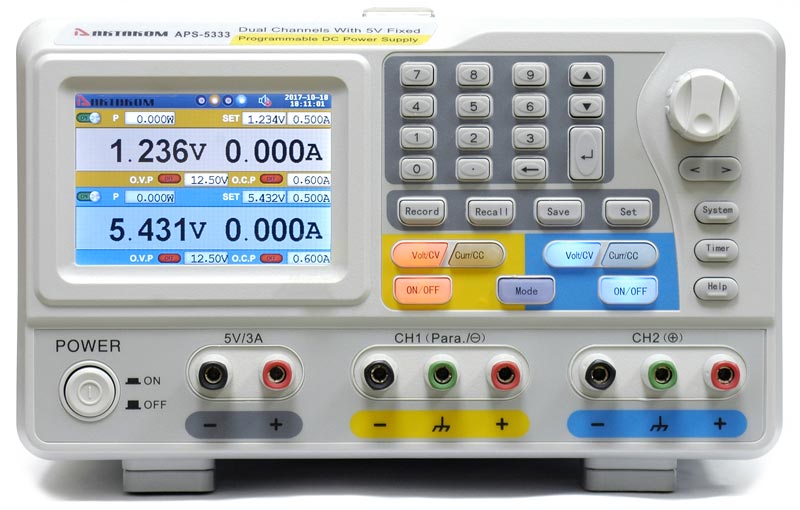

Controls of AKTAKOM APS-5333 DC Remote Controlled Power Supply


  1. LCD displays the parameters and statuses of AKTAKOM APS-5333 power supply
  2. Keyboard to enter values
  3. Up and down direction keys used to select the menu or change the parameters
  4. ENTER key to confirm the entered values or commands
  5. Setting knob used to change the value
  6. Left and right direction keys used to select the menu or move the cursor
  7. SYSTEM key to enter the system menu
  8. TIMER key to enter timer status
  9. HELP key to enter Help menu
  10. Keys to set the parameters of Channel 2 (blue area):
    VOLT/CV: for output voltage setting
    CURR/CC: for output current setting
    ON/OFF: for switching ON/OFF the outputs of Channels 2
  11. Output terminals of Channel 2 (blue area):
    "+" – red,
    "-" – black,
    grounding terminal – green
  12. MODE key used to enter the operation modes menu
  13. Output terminals of Channel 1 (orange area):
    "+" – red,
    "-" – black,
    grounding terminal – green.
  14. Output terminals of Channel 3 (grey area):
    "+" – red,
    "-" – black,
    grounding terminal – green
  15. POWER button to switch ON/OFF the device
  16. Keys to set the parameters of Channel 1 (orange area):
    VOLT/CV: for output voltage setting
    CURR/CC: for output current setting
    ON/OFF: for switching ON/OFF the outputs of Channels 1
  17. Functional keys:
    RECORD: records the current output data as a txt file and saves it to the USB disk
    RECALL: recalls the previously saved data
    SAVE: used to save the preset parameters
    SET: used to enter and exit the interface settings menu

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
