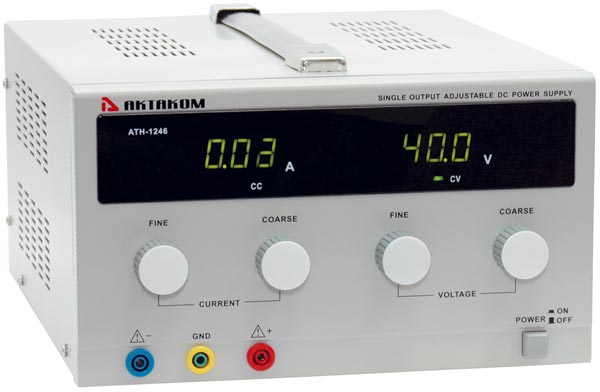

ATH-1246 DC Power Supply 40V / 6A 1 Channel

Perfect choice for repair and debugging processes and an ideal power supply for research laboratories. Constant voltage and constant current. Aluminium alloy panel. Two LEDs display output volt and amp. Output voltage: 0~40V. Output current: 0~6A. Dimensions: 10.3 x 6.7 x 14.5 in / 260 x 170 x 368 mm. Weight: 20.3 lb / 9.2 kg.

AKTAKOM ATH-1246 Power supply provides smoothly regulated stabilized voltage and stabilized current. Due to its high accuracy of the output parameters and good price ATH-1246 laboratory power supply is perfect choice for repair and debugging processes and an ideal device for research laboratories.

Features:

  • Constant voltage and constant current
  • Aluminium alloy panel
  • Two LEDs display output volt and amp

Specifications:

  • Line Regulation: CV1X10-4+3mV CC2X10-3+3mA
  • Load Regulation: CV1X10-4+2mV CC2X10-3+3mA(l≤3A) CV1X10-4+5mV CC2X10-3+5mA(l>3A) CV1X10-4+5mV CC2X10-3+5mA(l≥10A)
  • Ripple & Noise: CV0.5mV rms CC3mA rms(1≤3A) CV1.0mV rms CC3mA rms(1>3A) CV3.0mV rms CC9mArms(l≥5A)
  • Display accuracy: Voltmeter ± (0.2%Rdg+2digits), ± 2.5% Full Scale Ampmeter±(1.0%Rdg+2digits), ±2.5% Full Scale
  • Input Voltage: 110~127VAC±10% 220~240VAC±10% Switchable
  • Channel: 1
  • Output voltage: 0~40V
  • Output current: 0~6A
  • Dimensions: 10.3 x 6.7 x 14.5 in / 260 x 170 x 368 mm
  • Weight: 20.3 lb / 9.2 kg

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies canít be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
