APS-3103 DC Power Supply

Single channel DC power supply with current limit. Rated Output Voltage: 0~120V (Adjustable). Rated Output Current: 0~3A (Adjustable). Rated Output Power: 360W. Large Digital Display with LED meter displays Volts & Amps 100mV (Voltage) / 1mA (Current). Ripple And Noise: ≤5mVrms. SMD technology. Dimensions (WxHxD): 10.4x5.5x14.2in/262x140x360mm. Weight: 24lb/10kg

Manuals:

APS-3103_3320_3606_User_Manual.pdf (485.93 Kb)

AKTAKOM APS-3103 is a single output DC regulated bench power supply with Adjustable Current limit. Large Digital Display with LED meter displays Volts & Amps. Push button switch allows connection & removal of load. Multi turn Voltage control for precise settings. 5mV RMS ripple. Front panel output Banana Jacks & Terminal strip for remote Voltmeter Sensing at the load.

Features

SMD technology
Attractive digital display shows voltage and current
Cooling fan
High precision voltage regulation
Proqressive current regulation
Dual terminal system: Safety test style or expandable screw terminals
Overtoad protection circuit
Output polarity: positive or negative
Rugged reinforced metal frame construction

Specifications

Regulated Single Channel with Current Limit
Input: 110VAC 60Hz
Output: 0-120VDC @ 0-3A
Rated Output Power: 360W
Digital display shows voltage and current with LEDs
Cooling fan
Display resolution: 100mV (Voltage) / 1mA (Current)
Ripple And Noise: ≤5mVrms
Dimensions (WxHxD): 10.4x5.5x14.2in/262x140x360mm
Weight: 24lb/10kg

Accessories

Pair of high power Cables with connectors

Power Cord

User Manual

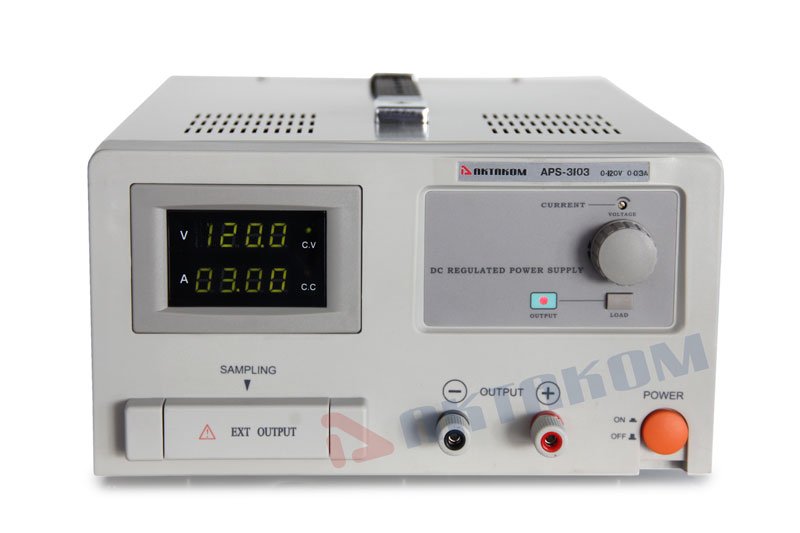

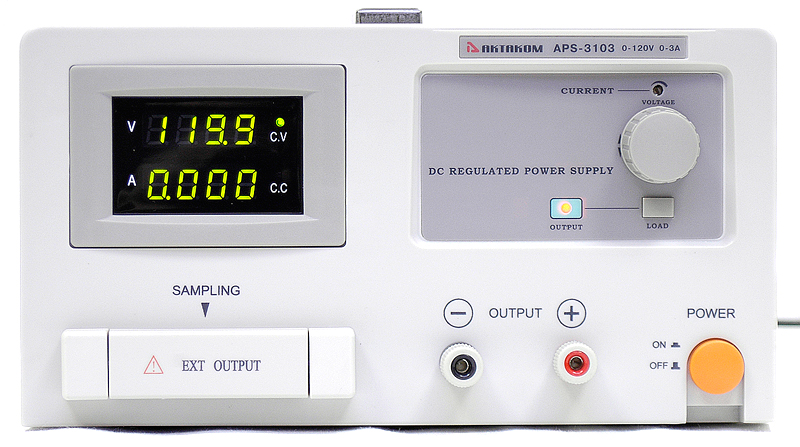

APS-3103 DC Power Supply - front view

Enlarge

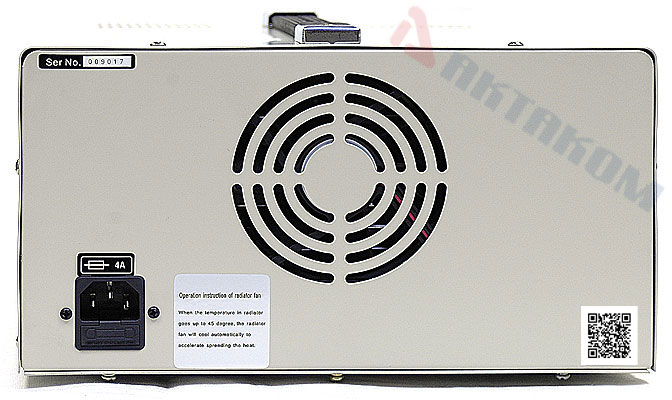

APS-3103 DC Power Supply - rear view

Enlarge

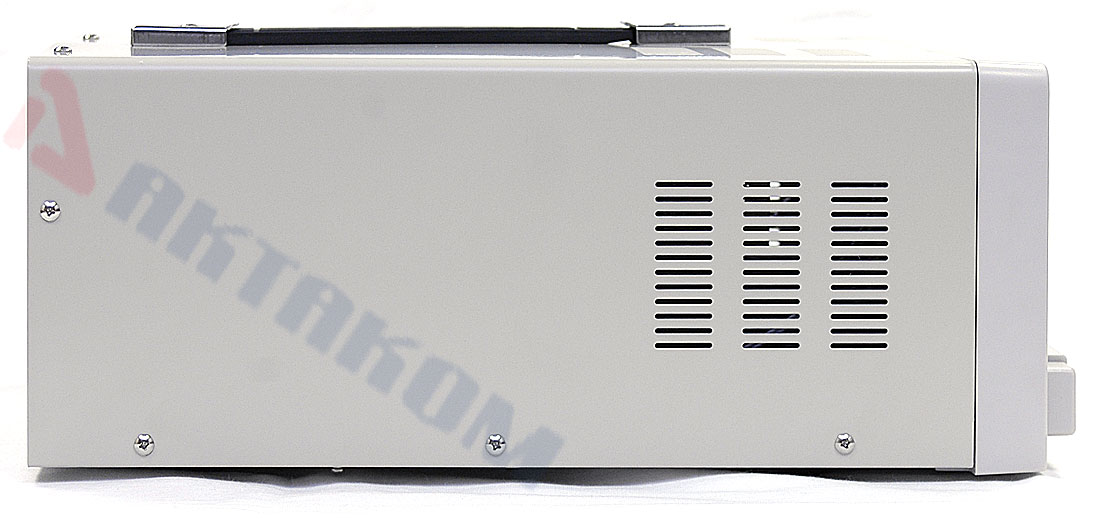

APS-3103 DC Power Supply - side view

Enlarge

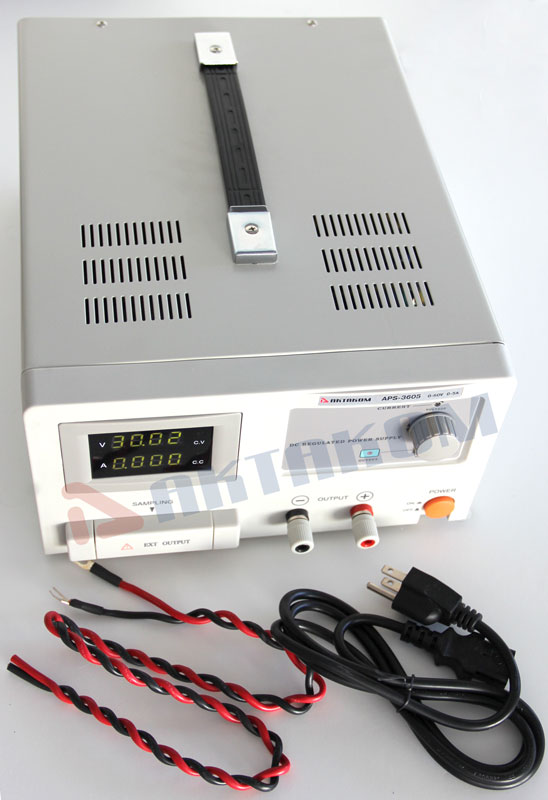

APS-3103 DC Power Supply - with accessories

Enlarge

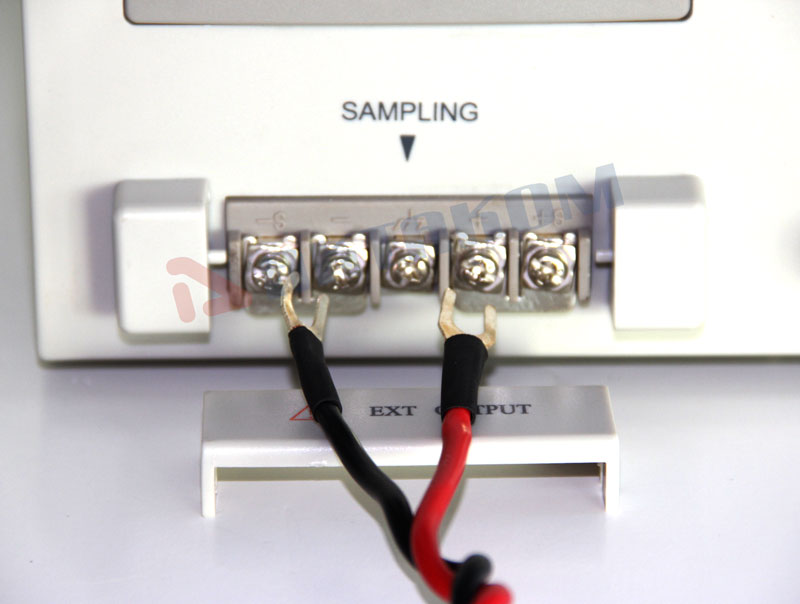

APS-3103 DC Power Supply - Voltage drop compensation

Enlarge

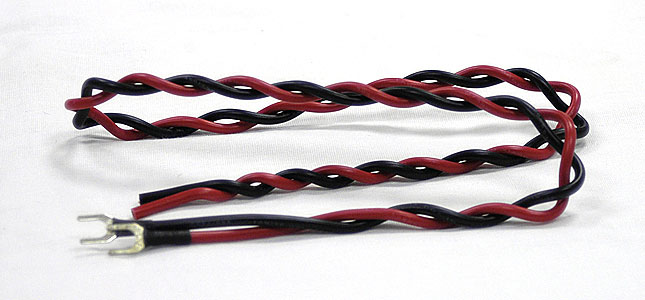

APS-3103 DC Power Supply - cable

Enlarge

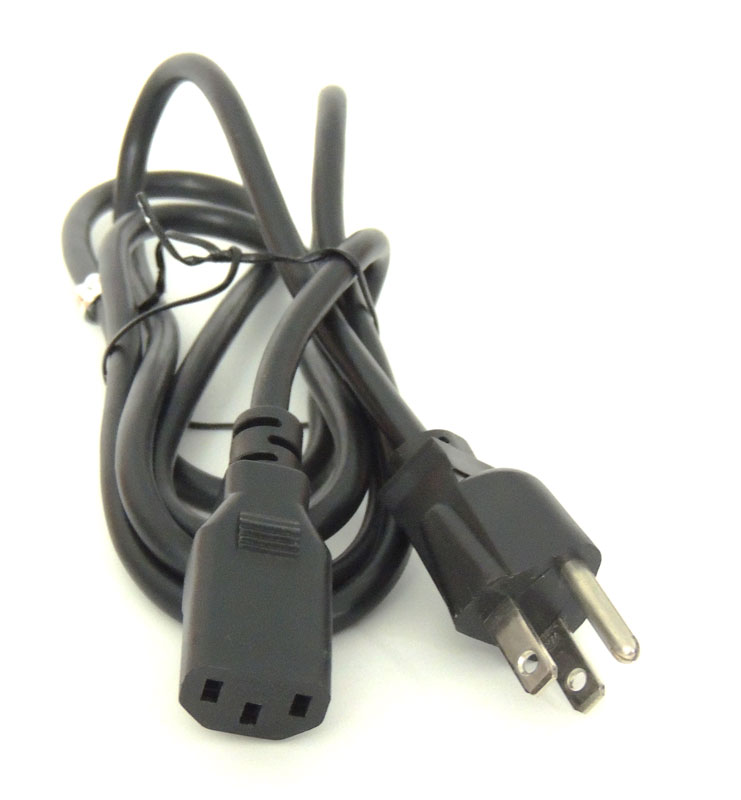

APS-3103 DC Power Supply - Power cord

Enlarge

Operation instructions

Press the power on/off button to turn power on.
Adjust the voltage knob to set the desired voltage. (Voltage level is shown on the digital display).
Adjust the current level pot with a small regular screwdriver to set the (maximum) desired current level. (The current of the power supply is set to be the maximum at the factory).
Connecting a load to the output terminals and pressing the output switch will illuminate the output indicator light and the current output can be read on the digital display.

1. Voltage indication
2. Current indication
3. +S output port
4. -S output port
5. -Output port
6. +Output port
7. -Output terminal
8. +Output terminal
9. Power switch
10. Output light
11. Output switch
12. Voltage adjustment knob
13. Current adjustment pot
14. Chassis ground

Power supply to load four-wire connection method

The sampling terminals are used under the following conditions: if the load has a distance from the power supply, the sampling terminals may be used to compensate for the inherent when using voltage drop a longer power line.

Sampling terminals connection to compensate the voltage drop:

Voltage drop compensation

Sampling connection diagram:

4 wire circuit

Attention: Disconnect the installed S- and S+ shorting wires when using the sampling connections.

Frequently Asked Questions

Do AKTAKOM power supplies have short circuit protection?

How can I work in the current stabilization mode?

What instruction should I follow to work in the voltage stabilization mode?

May I use AKTAKOM power supplies to charge accumulators?

Do AKTAKOM power supplies have short circuit protection?
Yes they have. Almost all modern power supplies have two operation modes: voltage stabilization mode and current stabilization mode. In case of short circuit the power supply automatically switches from the output voltage stabilization mode to the output current stabilization mode, and the output voltage starts proportionally dropping. At the same time the current in the load connected to the power supply will be limited with the value set with the screwdriver slot used to adjust the output current value on the front panel of the power supply. For the best protection it is recommended to set a low current value. In case of short circuit the current in the connected load will be limited with the value set on the power supply. Up

How can I work in the current stabilization mode?
If OUTPUT indicator is red than press LOAD button. In that case OUTPUT indicator should go out and the current indicator will display the set current value. By using VOLTAGE adjustment rotary switch set the required output voltage (at the same time nothing should be connected to the output terminals «+» and «-»). By using CURRENT rotary switch set the maximum allowable current value (current limit value) for your load. If in the operating mode the load resistance change will cause the excess of the specified current limit, the device will automatically switch to the current stabilization mode and the output voltage will proportionally fall. Connect the load to the device and press LOAD button. OUTPUT indicator should become red. Before you disconnect the load press LOAD button. OUTPUT indicator will go out. Before switching off the device, disconnect the load. Up

What instruction should I follow to work in the voltage stabilization mode?
If OUTPUT indicator is red than press LOAD button. In that case OUTPUT indicator should go out and the current indicator will display the set current value. Adjust VOLTAGE adjustment rotary switches in order to obtain the maximum allowable load voltage on the device output. If in the operating mode the load resistance change will cause the excess of the specified voltage limit, the device will automatically switch to the voltage stabilization mode with setting on terminals «+» and «-» of the preset voltage value limit, and the output current will proportionally fall. By using CURRENT rotary switch set the maximum allowable current value (current limit value) for your load. Connect the load to the device and press LOAD button. OUTPUT indicator should become red. Before you disconnect the load press LOAD button. OUTPUT indicator will go out. Before switching off the device, disconnect the load. Up

May I use AKTAKOM power supplies to charge accumulators?
AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device. Up
