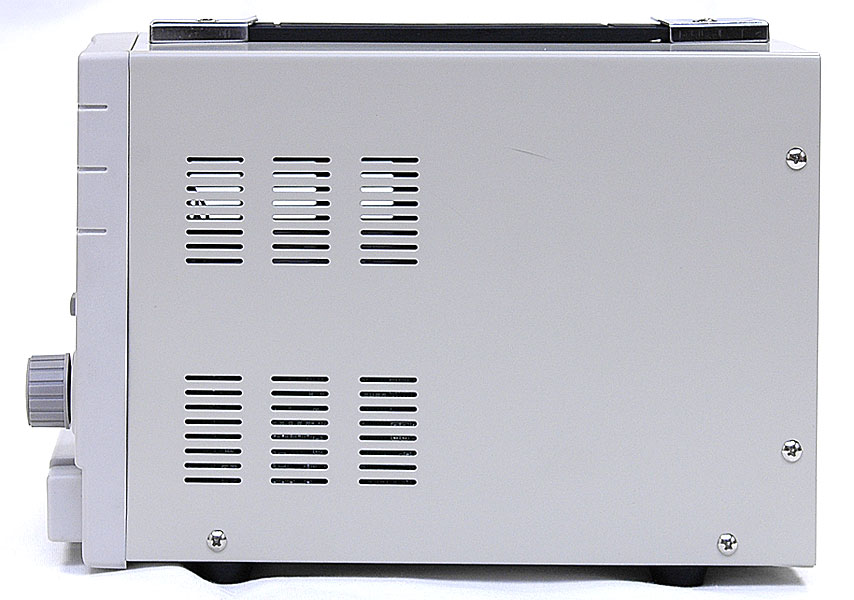

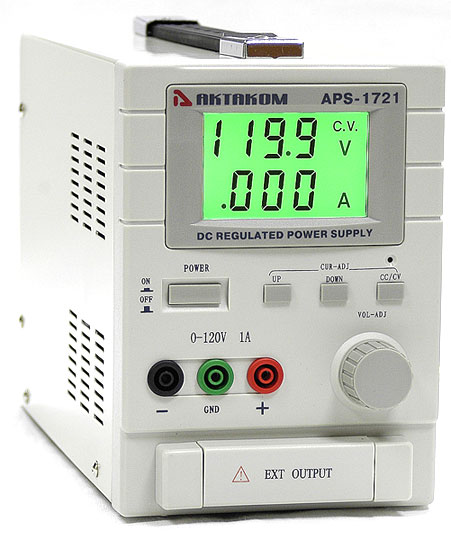

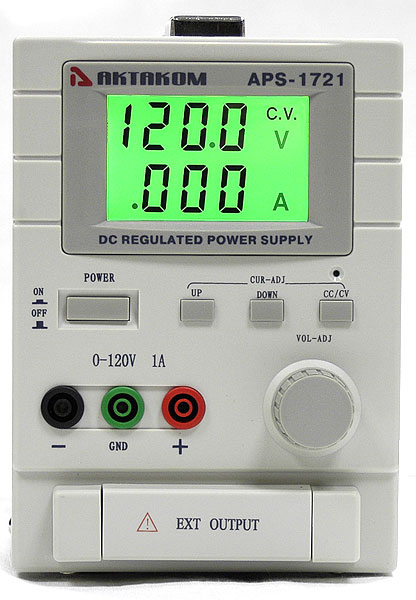

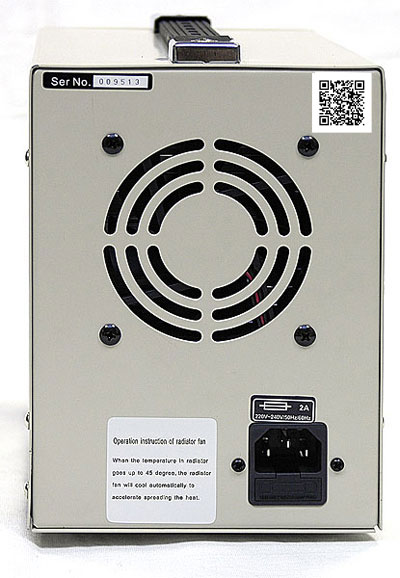

APS-1721 DC Power Supply

DC Power Supply: 120V, 1A 1 Channel. 2-line LCD display. 4-wire circuit. Push-button control current. Ripple/noise ratio — 1mV RMS. Resolution 100mV/10mA. Select the highlight color. 5.1x7.5x10.6in / 130x190x270mm. Weight: 11.24lb / 5.1kg

Manuals:
User's Manual (468.98 Kb)

Features

  • Output: 0-120V @ 0-1A
  • Utilizing SMD technology
  • LCD displays voltage and current
  • LCD displays stable voltage and current
  • Discretional choice of green, yellow backlight for LCD
  • Automatic conversion of stable voltage and current
  • Loopy type high accuracy voltage regulation
  • Step-type electric current adjustment
  • With extention output connectors

Specifications

  • Source effect: ≤5x10-4+3mV
  • Load effect: ≤5x10-4+3mV
  • Ripple coefficient: ≤1mV
  • Stepped current: 30MA±1mA
  • Dimensions: 5.1x7.5x10.6in / 130x190x270mm
  • Weight: 11.24lb / 5.1kg

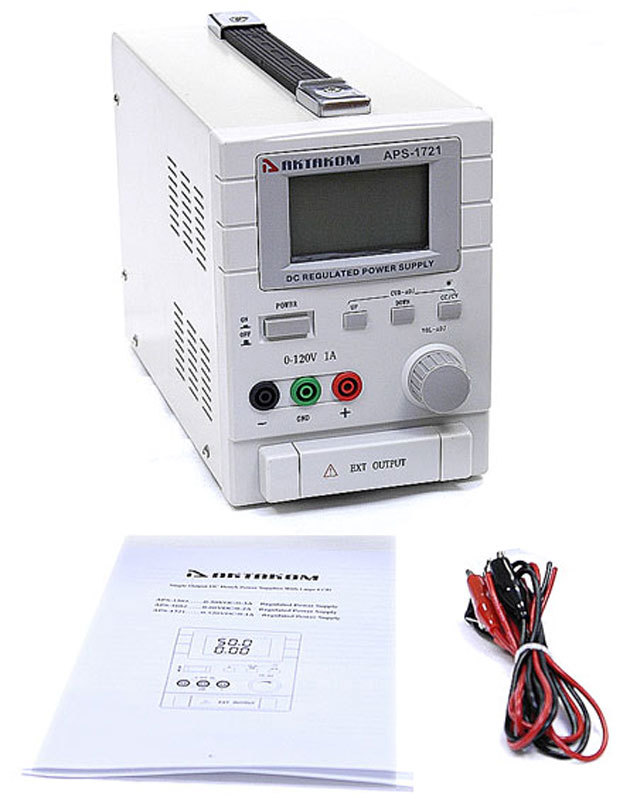

Accessories

  • User Manual

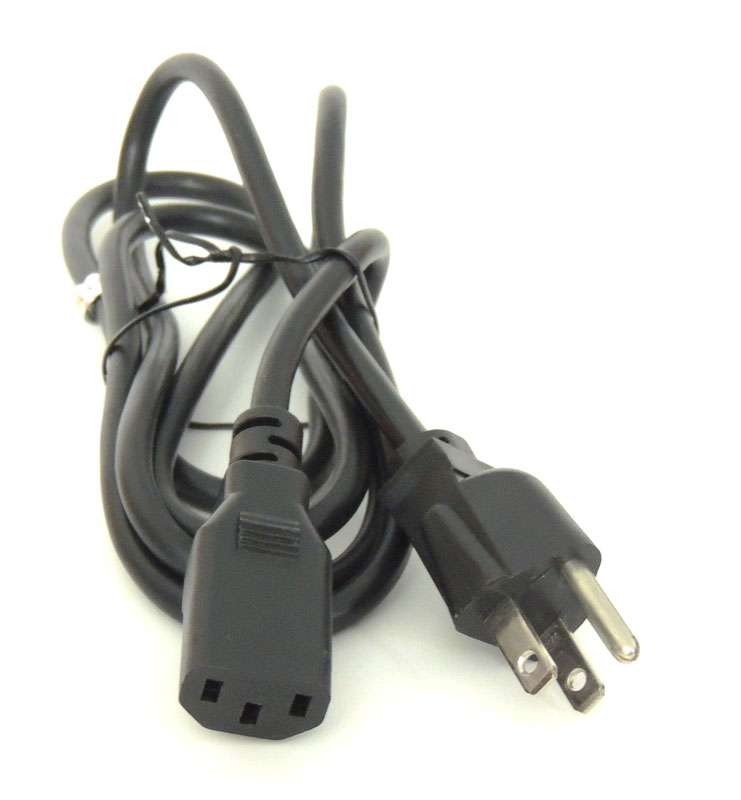

  • Power Cord

  • Set of Banana plug to Alligator Clips

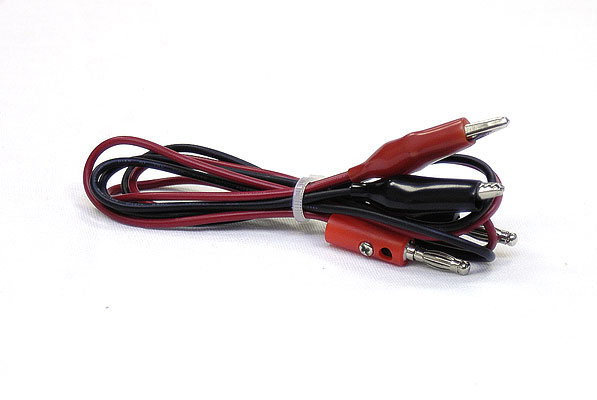

    Crocodile Clips

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
