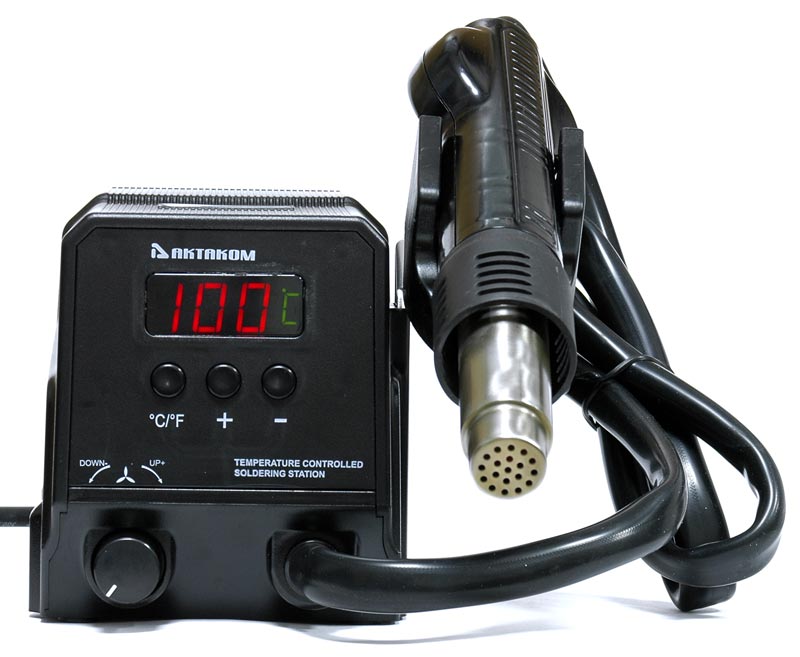

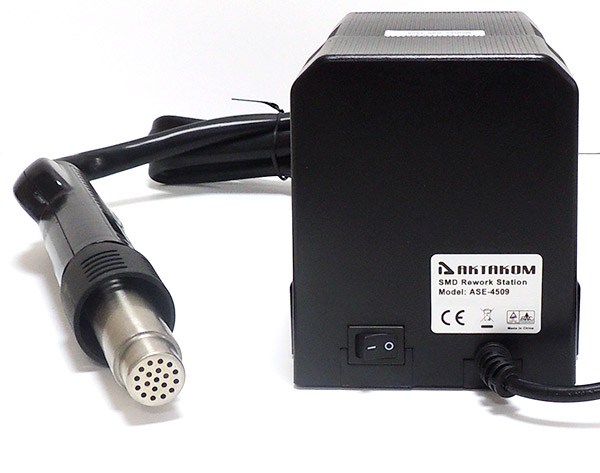

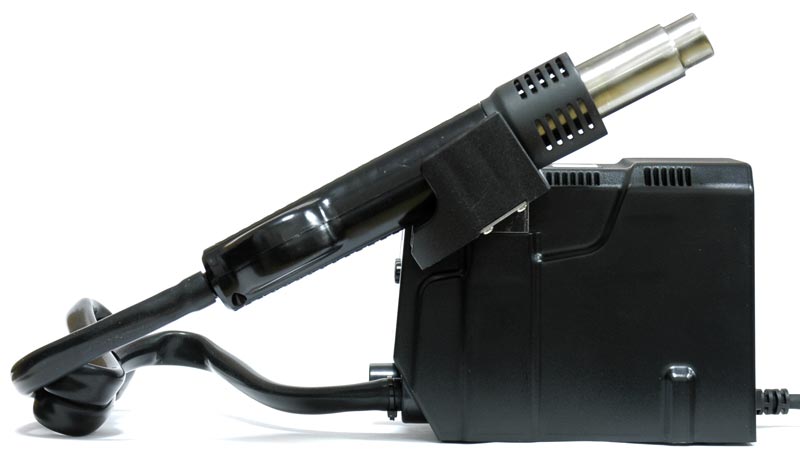

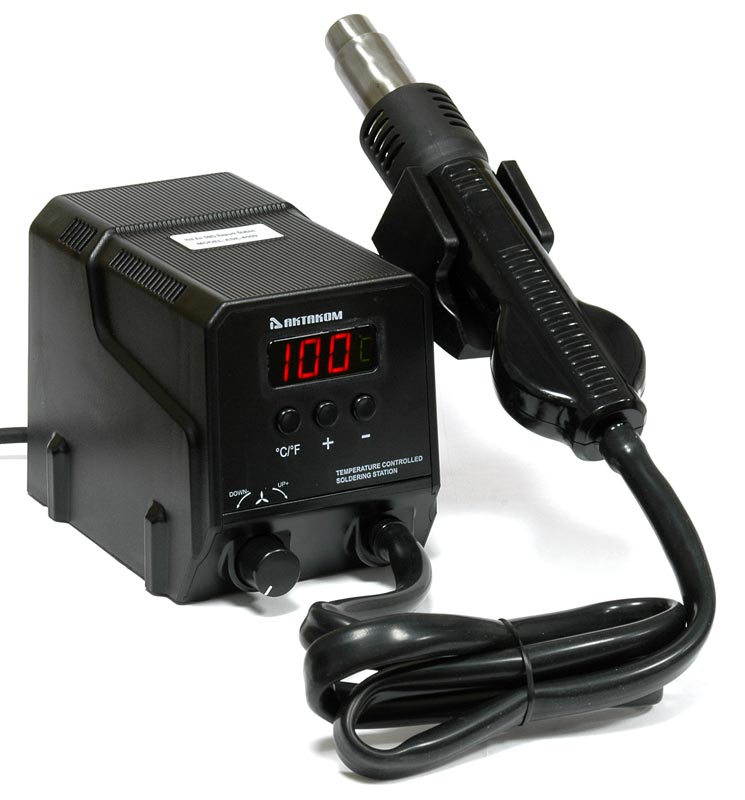

ASE-4509 SMD Rework Station

SMD Rework station is used on most SMD rework job, like SOIC, CHIP, QFP, PLCC, BGA etc. 100°C - 500°C temperature range; max. station power: 300W; brushless fan; ultra-fast heating up; cooling system (after the station is off); low noise level: <45dB; dimensions: 6.1x4.9x4.3 in / 155x125x110 mm; weight: 2.7 lb / 1.2 kg.

Manuals:
User's Manual (307.32 Kb)

ASE-4509 SMD Rework station is used in the field of electronic research, teaching and production, especially in the repairing and reworking on the electronic appliances and communication equipment.

Features:

  • The integrated tool offers an excellent solution to desoldering work. There is no need for any extra station to generate the work, it can save large working space.
  • This model can be used on most SMD rework job, like SOIC, CHIP, QFP, PLCC, BGA etc.
  • Prevent PCB from the damage of electric static and electric leakage.
  • No need to touch the PCB, no heating impact to the user.
  • Hand held compact design, easy for operation.
  • Dual color handle with anti-slip rubber hand grip.
  • With LED Segment Displays

Specifications:

  • Channel: 1
  • Microprocessor control
  • Max. station power: 300W
  • Digital indication
  • Temperature range: 100°C - 500°C
  • Brushless fan
  • Ultra-fast heating up
  • Cooling system (after the station is off)
  • Low noise level: <45dB

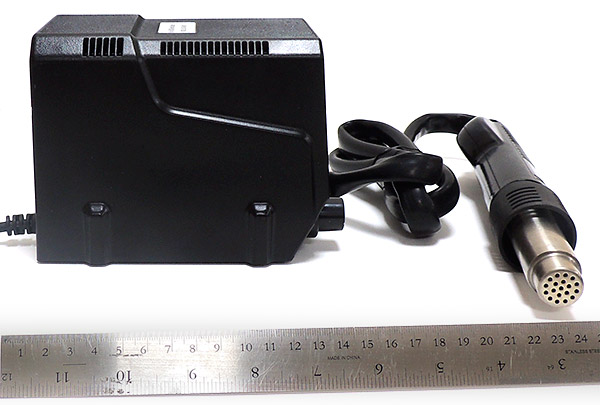

  • Dimensions: 6.1x4.9x4.3 in / 155x125x110 mm
  • Weight: 2.7 lb / 1.2 kg

Safety instructions

Take care of yourself!

  1. Please read user manual carefully before using the instrument.
  2. Do not use the device if there is visible damage.
  3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
  4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
  5. Use only those accessories that are intended for use with this device.
  6. While working, do not touch the metal parts near the tip of the soldering iron.
  7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.

Frequently Asked Questions

  • The rework station is not functioning, turns on, but not blowing air?

  • The rework station is not functioning, turns on, but not blowing air?
    The most common reason the rework station not functioning - the handle is placed on its holder. After the handle is placed on the holder the soldering station goes into standby mode and is ready for the working mode. Please follow user's manual for more details.
