ASE-9304 Soldering Bath

AKTAKOM ASE-9304 soldering bath is designed for solder fusing as well as for components and wires tinning. ASE-9304 can be also used for lead-free solder fusing.

Features:

• Embedded temperature stabilization system which provides high stability of temperature.
• Durable anti-rust titanium alloy
• Compact design, the bath occupies a minimal space
• Suitable for tinning of micro / medium-sized components output terminals.

Specifications:

• Max. power: 200W
• Operation voltage: 110 V/220 V
• Temperature range: 302...932°F / 150...500°C
• Temperature stability: ±41°F / ±5°С
• Material of the melting pot: titanium alloy
• Inner dimensions of the melting pot: 1.4 x 1.6 in / 36 x 40 mm
• Dimensions: 3.6 x 5.9 x 3 in / 91 x 150 x 75 mm
• Weight: 30,3 oz / 860 g

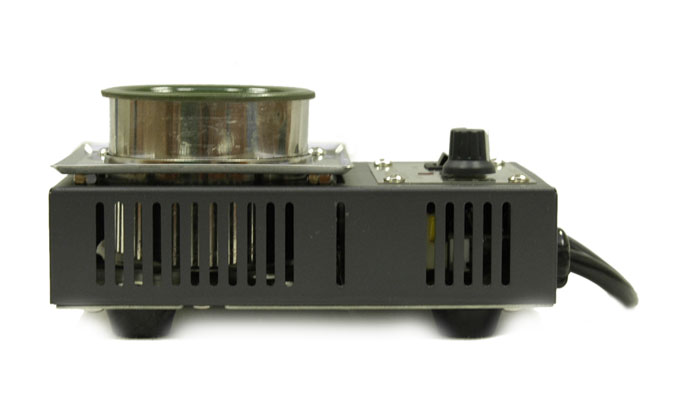

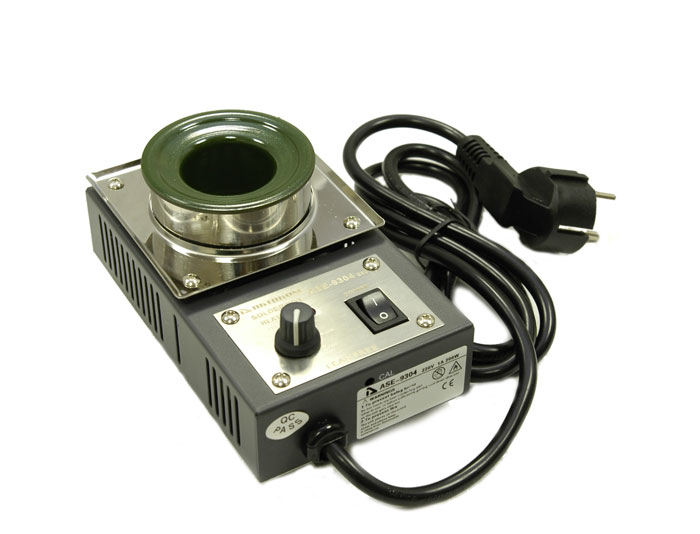

ASE-9304 Soldering Bath Enlarge

Safety instructions

Take care of yourself!

1. Please read user manual carefully before using the instrument.
2. Do not use the device if there is visible damage.
3. Repair and maintenance of the device can be done only by a qualified specialist of the service center.
4. Before connecting the instrument to the electrical network, observe all known precautions, and make sure that the grounding system is to avoid electric shock.
5. Use only those accessories that are intended for use with this device.
6. While working, do not touch the metal parts near the tip of the soldering iron.
7. After completion of the work, it is necessary to install the soldering gun in the regular holder of the soldering gun.
