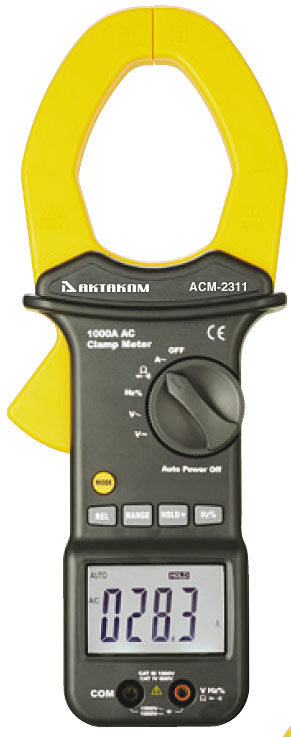

ACM-2311 Clamp Meter

Clamp Meter. LCD display 4000 counts. Measurements: DC voltage up to 1000V, AC voltage up to 1000V, AC current up to 1000A; Resistance up to 40MΩ; Frequency up to 10MHz; Capacitance up to 100μF; Duty Cycle: 0.5…99%. Features: Diode test, Continuity test, Relative meas., Data hold, Auto turn-off. Supply: 9V (battery). Size: 270x107x50mm / 10.6x4.2x2in. Weight: 554g / 19.5oz

Manuals:
User's Manual (403.39 Kb)

AKTAKOM ACM-2311 Professional Clamp Meters provide many functions for professional AC, AC/DC measurements including resistance, capacitance and diode test, etc. With mid-size and tear-drop shaped jaw, it is easy to use in crowded cable areas and other tight places.

LCD display 4000 counts. Measurements: DC voltage up to 1000V, AC voltage up to 1000V, AC current up to 1000A; Resistance up to 40MΩ; Frequency up to 10MHz; Capacitance up to 100μF; Duty Cycle: 0.5…99%. Features: Diode test, Continuity test, Relative meas., Data hold, Auto turn-off. Supply: 9V (battery). Size: 270x107x50mm / 10.6x4.2x2in. Weight: 554g / 19.5oz

Features

  • Current measurements: AC
  • Digital display counts: 4000
  • Electronic overload protection

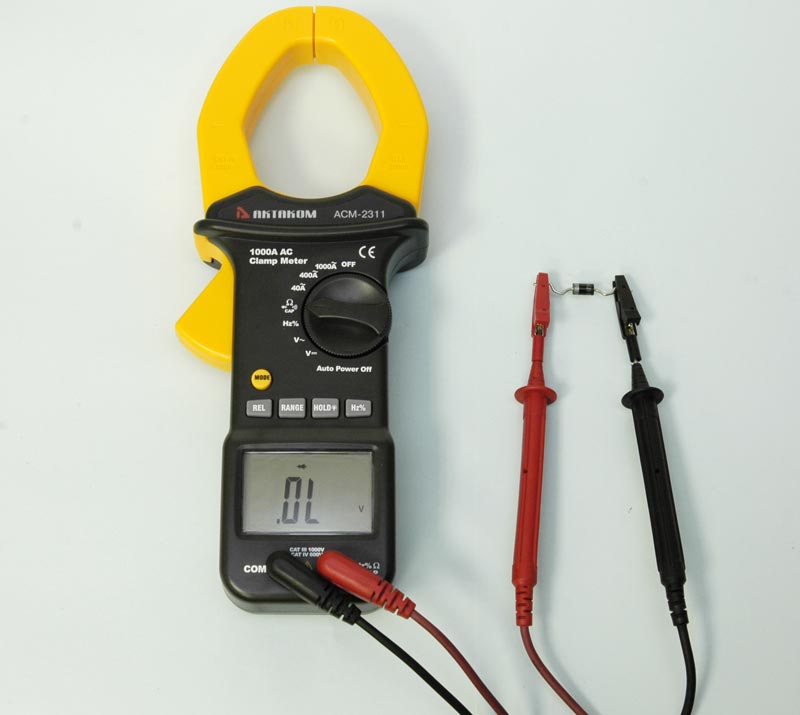

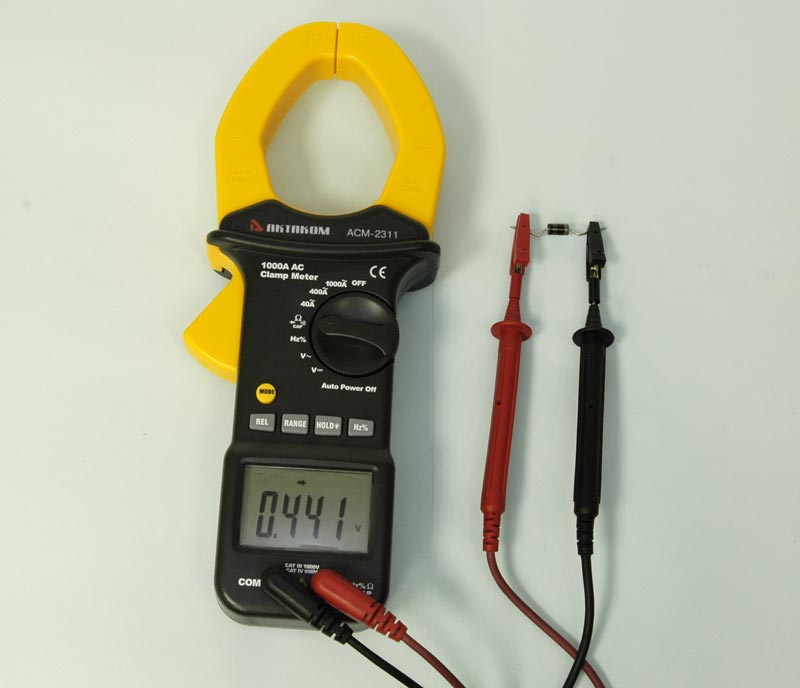

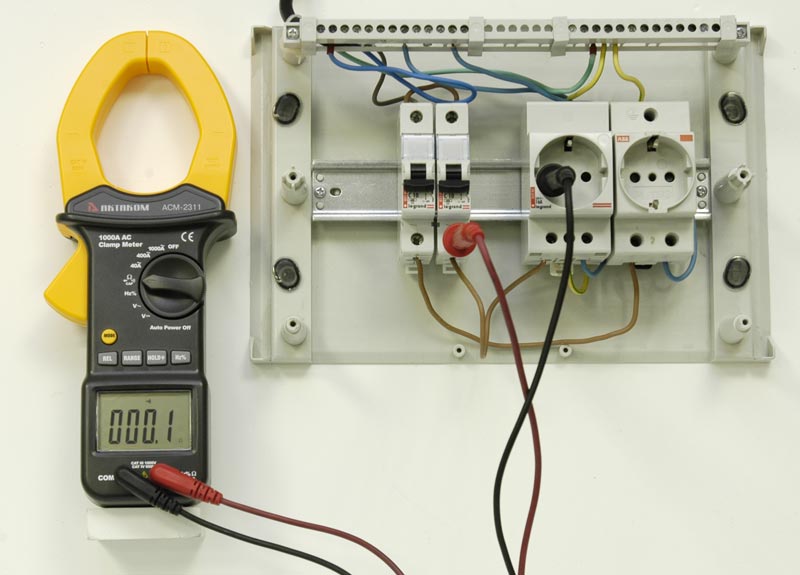

  • Continuity buzzer & Diode check
  • Data Hold function
  • Auto Power Off
  • Low battery indication
  • Display with backlight
  • 2.16in (55mm) Clamp jaw opening

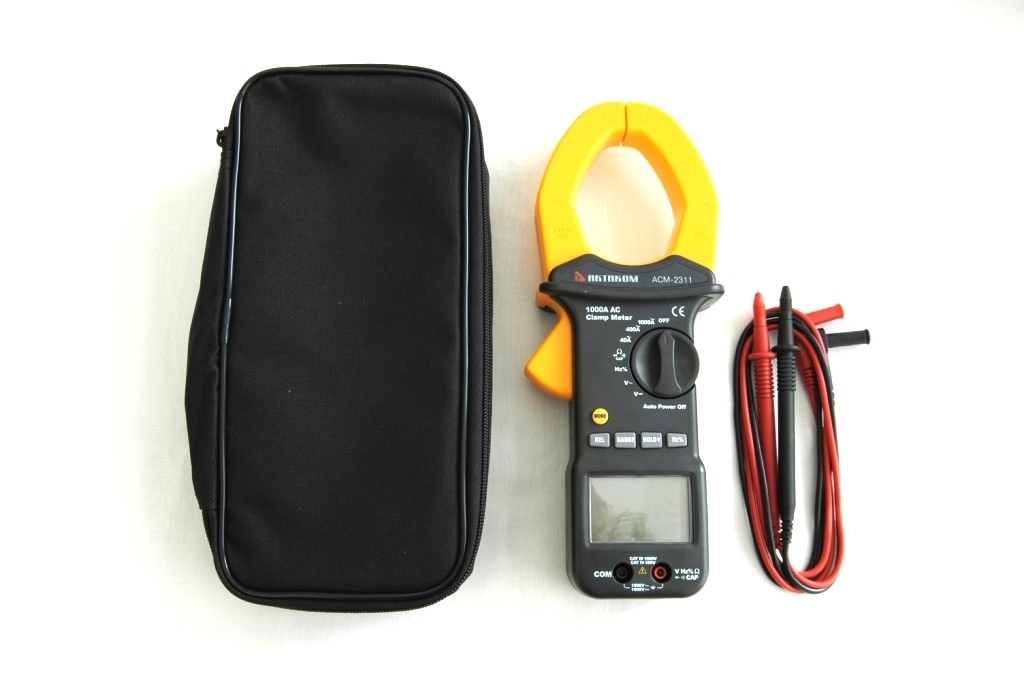

Accessories

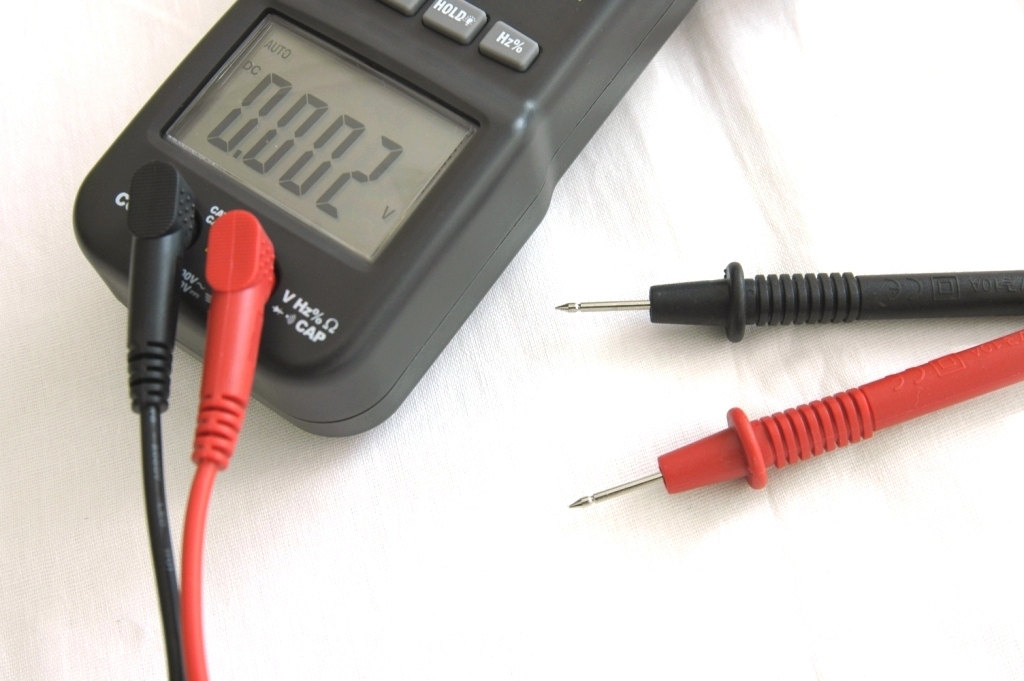

  • Test leads
  • Carrying case
  • 9V battery
  • User's Manual

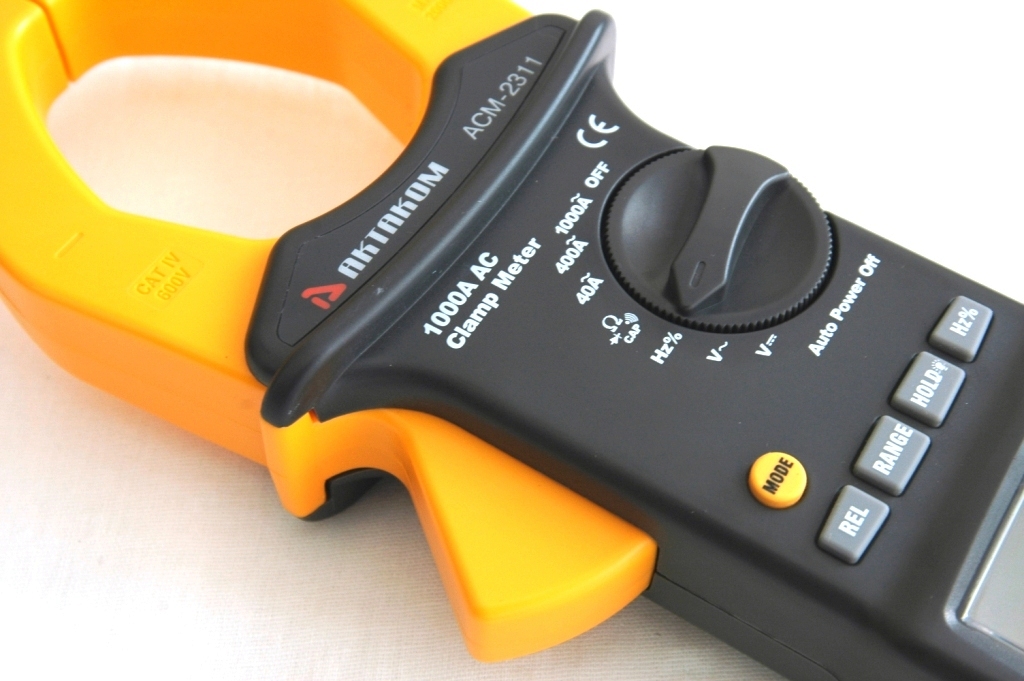

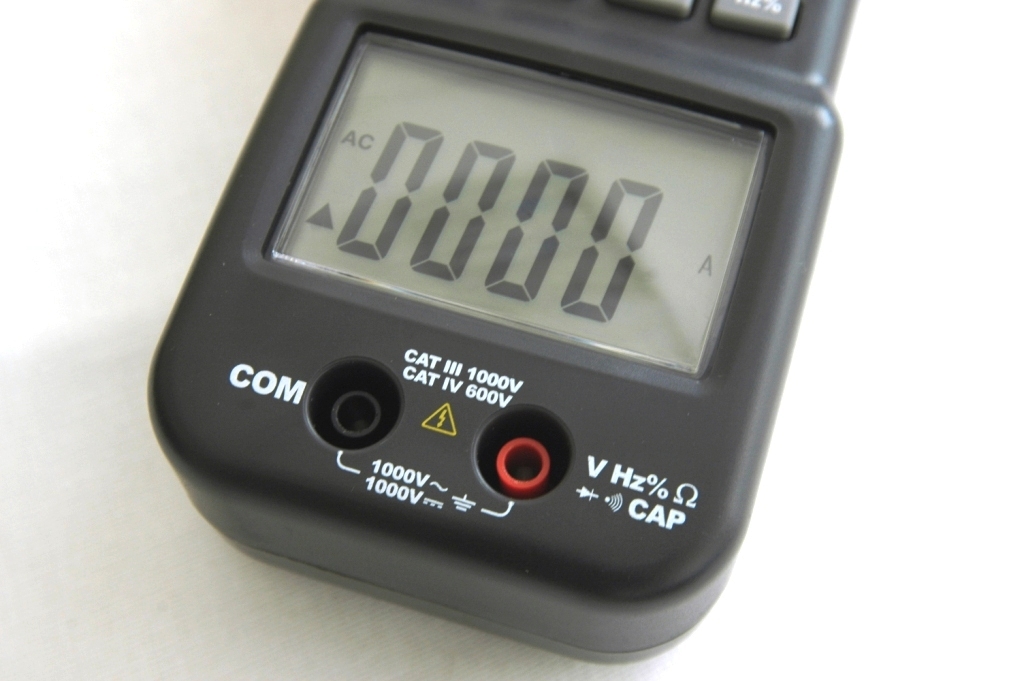

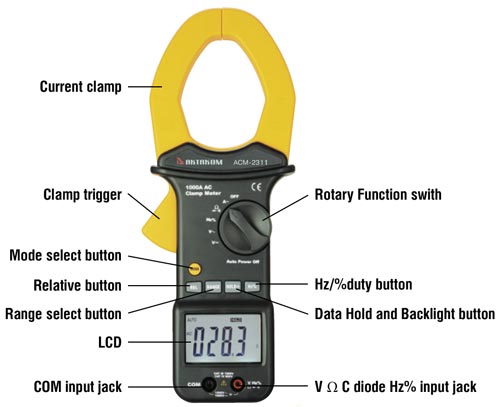

Controls of ACM-2311 Clamp Meter

Controls of ACM-2311 Clamp Meter
