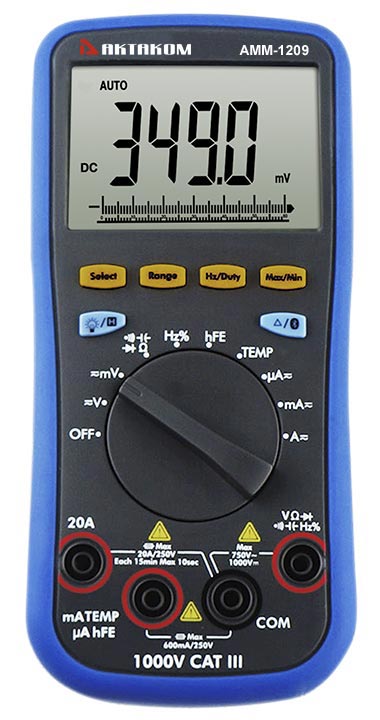

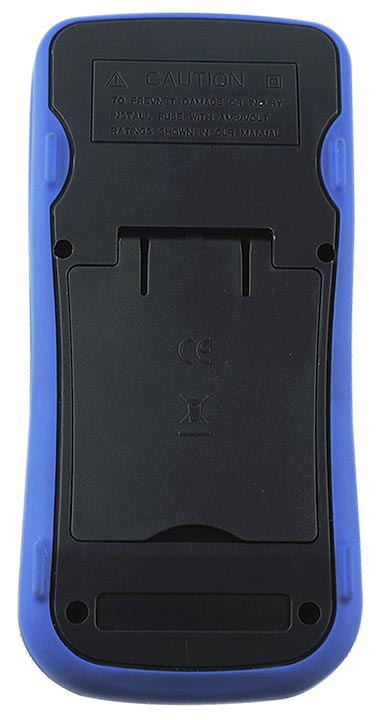

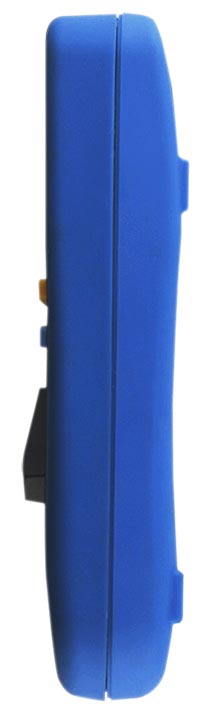

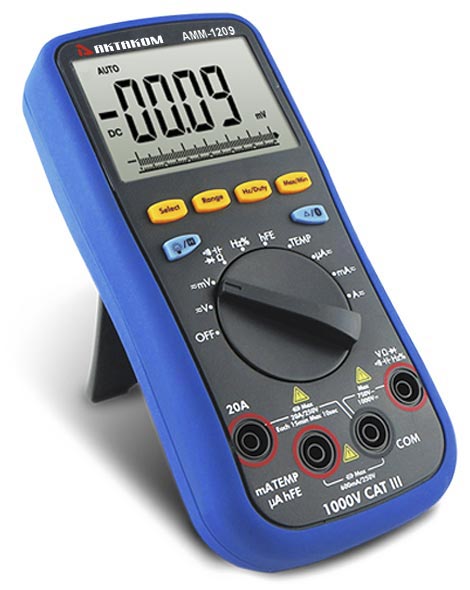

AMM-1209 Digital Multimeter

AKTAKOM AMM-1209 digital multimeter provides wide functionality at an affordable price. Large LCD display (69 mm x 52 mm) with backlight: 3 5/6 digits, 5999 counts. TrueRMS measurements: 40 Hz…1 kHz. Basic accuracy 0.5%. Input impedance ≥10 MΩ. Measurement speed 3 times/s. Analog scale: 61 segments (35 times/sec). Bluetooth interface BLE 4.0

AKTAKOM AMM-1209 digital multimeter provides wide functionality at an affordable price. In addition to the usual measuring functions for portable multimeters AMM-1209 multimeter is capable of measuring duty cycle and temperature (using K-type thermocouple).

Due to the capability of TrueRMS measuring AMM-1209 multimeter correctly measures non-sinusoidal and distorted signals. The device has an analog scale for tracking rapid changes in the parameters under measurement.

Main features:

  • Large LCD display (69 mm x 52 mm) with backlight: 3 5/6 digits, 5999 counts
  • TrueRMS measurements: 40 Hz…1 kHz
  • Basic accuracy 0.5%
  • Input impedance ≥10 MΩ
  • Measurement speed 3 times/s
  • Analog scale: 61 segments (35 times/sec)
  • Automatic and manual range selection
  • Hold current values
  • Relative measurement mode
  • Diode and continuity test
  • Low battery indicator
  • Auto power off (in 15 min.)
  • Power supply: 3 V (2 pcs of AA batteries)
  • 1000 V CATIII
  • Bluetooth interface BLE 4.0

Specifications:


DC voltage

Ranges Best resolution Accuracy
60,00 mV 0,01 mV ±(0,5%+2 digits)
600,0 mV 0,1 mV
6,000 V
0,001 V
60,00 V
0,01 V
600,0 V 0,1 V
1000 V
1 V

AC voltage (40…1000 Hz)

Ranges Best resolution Accuracy
60,00 mV
0,01 mV ±(0,8%+2 digits)
600,0 mV 0,1 mV
6,000 V
0,001 V
60,00 V
0,01 V
600,0 V 0,1 V
750 V
1 V ±(1,0%+3 digits)

DC current

Ranges Best resolution Accuracy
600,0 µA
0,1 µA
±(0,8%+2 digits)
6,000 mA
0,001 mA
60,00 mA
0,01 mA
600,0 mA 0,1 mA
20,00 A*
0,01 A ±(1,2%+3 digits)

AC current (40…1000 Hz)

Ranges Best resolution Accuracy
600,0 µA
0,1 µA
±(1,0%+3 digits)
6,000 mA 0,001 mA ±(0,8%+2 digits)
60,00 mA
0,01 mA
600,0 mA 0,1 mA
20,00 A*
0,01 A ±(2,0%+3 digits)

Resistance

Ranges Best resolution Accuracy
600,0 Ω
0,1 Ω ±(0,8%+2 digits)
6,000 kΩ 0,001 kΩ
60,00 kΩ 0,01 kΩ
600,0 kΩ 0,1 kΩ
6,000 MΩ 0,001 MΩ
60,00 MΩ
0,01 MΩ
±(2,0%+3 digits)

Capacity

Ranges Best resolution Accuracy
40,00 nF
0,01 nF
±(2,5%+3 digits)
400,0 nF 0,1 nF
4,000 µF 0,001 µF
40,00 µF
0,01 µF
400,0 µF
0,1 µF
±(3,0%+5 digits)
4000 µF
1 µF

Frequency

Ranges Best resolution Accuracy
9,999 Hz
0,001 Hz ±(0,8%+2 digits)
99,99 Hz
0,01 Hz
999,9 Hz
0,1 Hz
9,999 kHz
0,001 kHz
99,99 kHz
0,01 kHz
999,9 kHz
0,1 kHz
9,999 MHz 0,001 MHz

Fill factor

Ranges Best resolution Accuracy
0,1% ~ 99,9% (Vrms = 1 V)
0,1 %
not standardized

Temperature (k-тип)

Ranges Best resolution Accuracy
-50 °C…400 °C / -58°F…752°F 1 °C / 33.8°F not standardized

*Please check User manual for careful measurements
  • Power supply: 2 batteries 1,5 V (AA)
  • Dimensions: 185x85x30 mm
  • Weight: 320 g.

Standard accessories:

  • Multimeter
  • Test leads - 2 pcs.
  • K-type thermocouple
  • Transistor Test Adapter
  • Soft carrying bag
  • User manual
