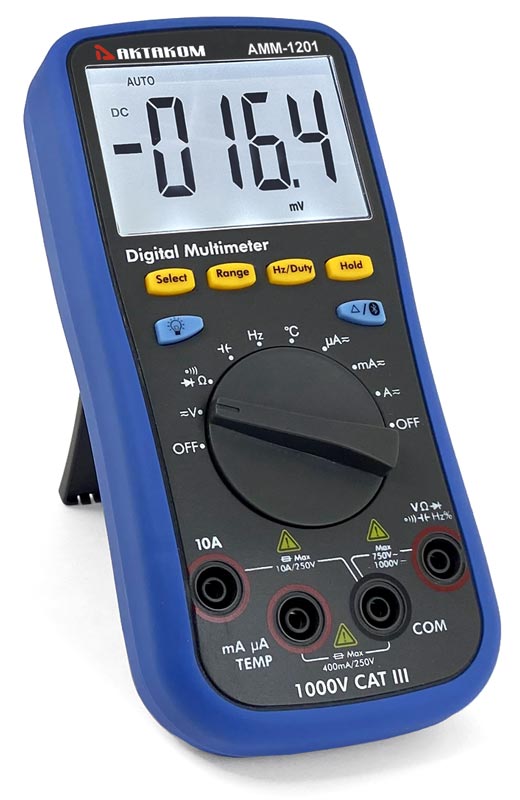

AMM-1201 Digital Multimeter
AMM-1201 Digital Multimeter
|
|
AKTAKOM AMM-1203 digital multimeter provides wide functionality at an affordable price. Large LCD display (69 mm x 52 mm) with backlight: 3 3/4 digits, 3999 counts. Basic accuracy 0.5%. Input impedance ≥10 MΩ. Measurement speed 3 times/s. Automatic and manual range selection. Hold current values
|
|
AKTAKOM AMM-1201 digital multimeter provides wide functionality at an affordable price. In addition to the usual measuring functions for portable multimeters AMM-1201 multimeter is capable of measuring duty cycle and temperature (using K-type thermocouples).
Main features:
- Large LCD display (69 mm x 52 mm) with backlight: 3 3/4 digits, 3999 counts
- Basic accuracy 0.5%
- Input impedance ≥10 MΩ
- Measurement speed 3 times/s
- Automatic and manual range selection
- Hold current values
- Relative measurement mode
- Diode and continuity test
- Low battery indicator
- Auto power off
- 1000 V CATIII
Specifications:
DC voltage
|
Ranges
|
Best resolution
|
Accuracy
|
|
400,0 mV
|
0,1 mV
|
±(0,5%+2 digits)
|
|
4,000 V
|
0,001 V
|
|
40,00 V
|
0,01 V
|
|
400,0 V
|
0,1 V
|
|
1000 V
|
1 V
|
±(0,8%+2 digits)
|
AC voltage (40…400 Hz)
|
Ranges
|
Best resolution
|
Accuracy
|
|
4,000 V
|
0,001 V
|
±(0,8%+2 digits)
|
|
40,00 V
|
0,01 V
|
|
400,0 V
|
0,1 V
|
±(1,0%+3 digits)
|
|
750 V
|
1 V
|
DC current
|
Ranges
|
Best resolution
|
Accuracy
|
|
400,0 µA
|
0,1 µA
|
±(0,8%+2 digits)
|
|
4000 µA
|
1 µA
|
|
40,00 mA
|
0,01 mA
|
|
400,0 mA
|
0,1 mA
|
|
4.000 A
|
0,001 A
|
±(1,2%+3 digits)
|
|
10,00 A
|
0,01 A
|
AC current (40…400 Hz)
|
Ranges
|
Best resolution
|
Accuracy
|
|
400,0 µA
|
0,1 µA
|
±(1,0%+3 digits)
|
|
4000 µA
|
1 µA
|
|
40,00 mA
|
0,01 mA
|
±(0,8%+2 digits)
|
|
400,0 mA
|
0,1 mA
|
|
4.000 A
|
0,001 A
|
±(2,0%+3 digits)
|
|
10,00 A
|
0,01 A
|
Resistance
|
Ranges
|
Best resolution
|
Accuracy
|
400,0 Ω
|
0,1 Ω
|
±(0,8%+2 digits)
|
|
4,000 кΩ
|
0,001 кΩ
|
|
40,00 кΩ
|
0,01 кΩ
|
|
400,0 кΩ
|
0,1 кΩ
|
|
4,000 MΩ
|
0,001 MΩ
|
|
40,00 MΩ
|
0,01 MΩ
|
±(2,0%+3 digits)
|
Capacity
|
Ranges
|
Best resolution
|
Accuracy
|
|
40,00 nF
|
0,01 nF
|
±(3,0%+3 digits)
|
|
400,0 nF
|
0,1 nF
|
|
4,000 µF
|
0,001 µF
|
|
40,00 µF
|
0,01 µF
|
|
100,0 µF
|
0,1 µF
|
±(3,0%+5 digits)
|
Frequency
|
Ranges
|
Best resolution
|
Accuracy
|
|
4,999 Hz
|
0,001 Hz
|
±(0,8%+2 digits)
|
|
49,99 Hz
|
0,01 Hz
|
|
499,9 Hz
|
0,1 Hz
|
|
4,999 kHz
|
0,001 kHz
|
|
49,99 kHz
|
0,01 kHz
|
|
499,9 kHz
|
0,1 kHz
|
|
4,999 МHz
|
0,001 MHz
|
|
49,99 MHz
|
0,01 MHz
|
Fill factor
|
Ranges
|
Best resolution
|
Accuracy
|
|
0,1% ~ 99,9% (Vrms = 1 V)
|
0,1 %
|
not standardized
|
Temprature (К-type)
|
Ranges
|
Best resolution
|
Accuracy
|
|
-50 °C…400 °C / -58°F…752°F
|
1 °C / 33.8°F
|
not standardized
|
- Power supply: 2 batteries 1,5 V (AA)
- Dimensions: 185x85x30 mm
- Weight: 290 g.
Standard accessories:
- Multimeter
- Test leads - 2 pcs.
- K-type thermocouple
- User manual

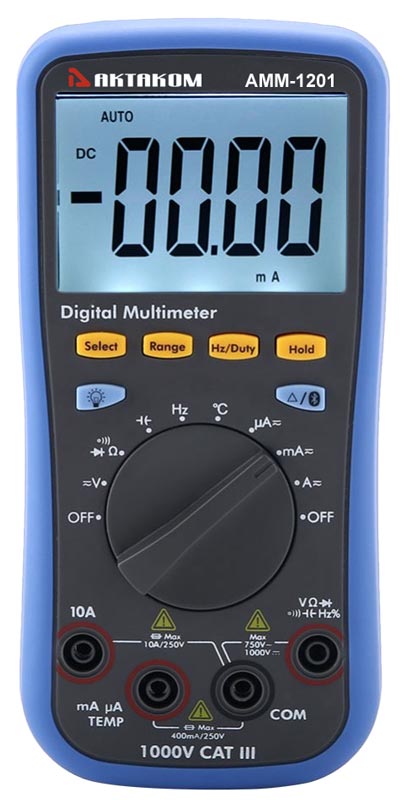

| AMM-1201 Digital Multimeter - Front panel |
|
|

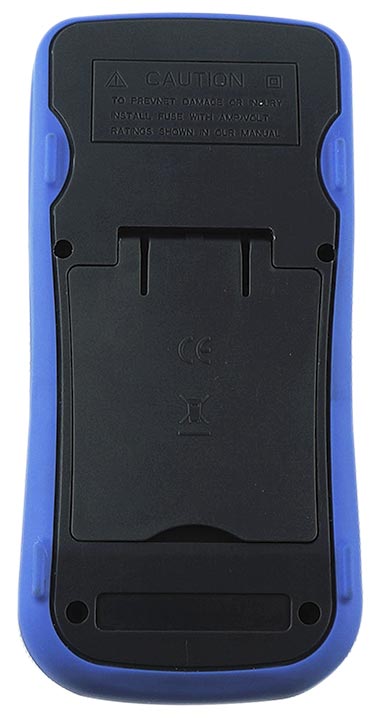

| AMM-1201 Digital Multimeter - Rear panel |
|
|

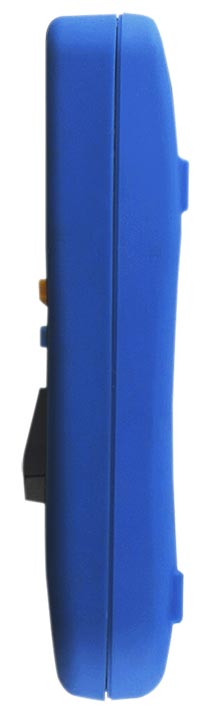

| AMM-1201 Digital Multimeter - Side view |
|
|
|
