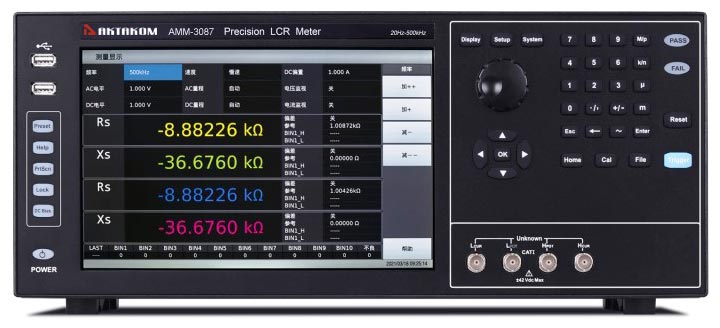

AMM-3087 LCR Meter
|
|
AKTAKOM AMM-3087 LCR meter is designed to measure and analyze inductance, electrical capacitance, resistance, loss tangent, quality factor, complex resistance, phase shift and other parameters of electronic components. Test frequency: 20 Hz….500 kHz. Best resolution: 1 mHz. Basic accuracy: 0.05%.
|
|
AKTAKOM AMM-3087 LCR meter is designed to measure and analyze inductance, electrical capacitance, resistance, loss tangent, quality factor, complex resistance, phase shift and other parameters of electronic components.
The functionality of AMM-3087 RLC meter includes a built-in scanning and graphical analysis function, a built-in voltage and current bias source. Touch screen along with traditional controls on the front panel as well as a wide range of interfaces for PC connection and remote control via SCPI commands make this LCR meter universal for the use in automated measuring systems in laboratories or on production lines.
Features:
- The test speed is as high as 1000 times/s (>10kHz), without relay action time
- Test level up to 20Vrms
- The bias voltage is built-in ±40V/±100mA/2A
- Built-in help file
- 10.1 inch 1280Ч800 capacitive touch screen
- Graphical pin association setting page
- Lk setting does not need to input the leakage inductance pin, which is more intuitive
- Enhanced balance scanning function, from 5 points to 10 points
- Range switching adopts electronic switch, fast speed, long life, no noise
-
Approximately 100M setting file storage space and massive U disk setting file storage capacity
|
Specifications
|
|
|
Value
|
|
Parameters under test
|
Cp/Cs, Lp/Ls, Rp/Rs, |Z|, |Y|, Rd, X, G, B, θ, D, Q,
Vdc, Vac, Idc, Iac
|
|
Basic accuracy
|
0,05%
|
|
Frequency characteristics of the test signal
|
Test frequency
|
20 Hz...500 kHz
|
|
Best resolution
|
1 mHz
|
|
Accuracy
|
0,01%
|
|
Level of the test signal AC
|
Voltage of the test signal
|
5 mV...20 Vrms
|
|
Best regsolution
|
100 µV
|
|
Accuracybr>
|
±(10%Uset + 2 mV)
|
Current oc the test signal
|
50 µA...100 mArms
|
|
Best resolution
|
1 µA
|
Accuracy
|
±(10%Iset + 10 µA)
|
|
Display
|
color touch screen 10.1” TFT, 1280Ч800 resolution
|
|
Operating tempreture / humidity
|
0...40 °C, ≤75%RH
|
|
Power supply
|
99 V...121 V, 198 V...242 V; 47 Hz...63 Hz
|
|
Max power consumption
|
130 VA
|
|
Dimensions
|
430 x 177 x 265 mm
|
|
Weight
|
about 11 kg
|
Standard accessories:
- LCR meter
- Adapter with Kelvin probes
- Adapter for direct connection of components
- Calibration plate
- Network cable
- User manual

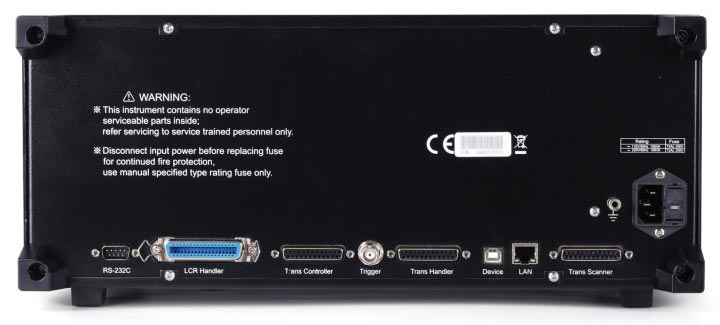

| AMM-3087 LCR Meter - Rear panel |
|
|
