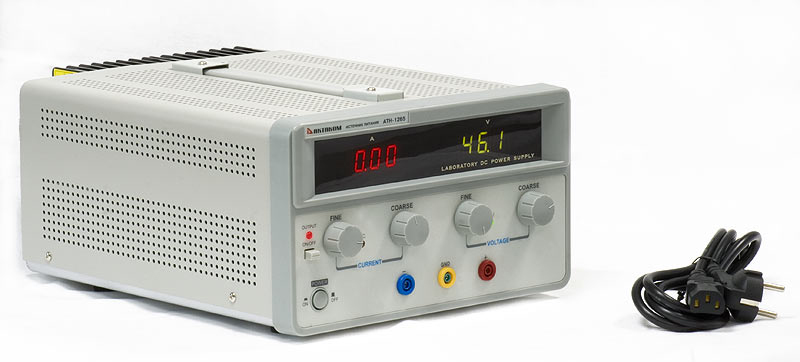

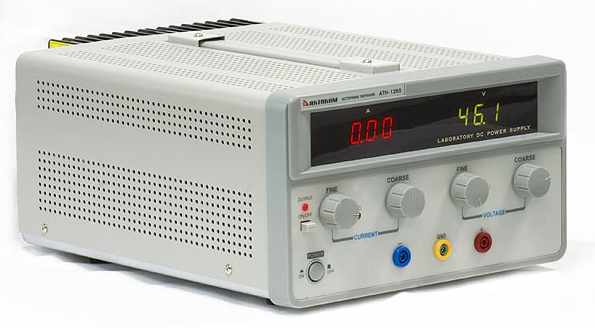

ATH-1265 DC Power Supply 60V / 5A, 1 channel


Power supply designed for the use in debugging process, repair or in laboratory research. 3 digit LCD (colorful indication). Short circuit protection. Stabilization mode (current, voltage). 1 channel. Output voltage: 0...60 V. Output current: 05 A. Inaccuracy of output voltage setting: 0.2% + 2 digits. Inaccuracy of output current setting: 1% + 2 digits. Dimensions: 9.8 x 6 x 14 in / 250 x 150 x 355 mm. Weight: 21.1 lb / 9.6 kg

AKTAKOM ATH-1265 is a high-precision DC regulated power supply which is widely used in debugging process, repair and laboratory research. Besides other applications it’s a perfect power supply for science investigation, college, factory, electronic appliance maintenance and etc.

ATH-1265 outputs smoothly adjustable stabilized DC voltage and stabilized current. Constant voltage and constant current are switchable automatically and the current limit protection point can be set arbitrarily. In the constant current state, output current is continuously adjustable.

The unit structure is rather compact, this allows ATH-1265 to occupy a minimal space and organize a high performance work area. Other features of this power supply include high performance, short circuit protection availability, modern design etc.

ATH-1265 has a digital indication, all information is displayed on 2 3-digit LED displays of different colors (current – red, voltage – yellow green).

Features:

  • 2 3-digit LCDs (colorful indication)
  • Short circuit protection
  • Stabilization mode (current, voltage)
  • Precise and coarse setting of current/voltage
  • Button to switch on/off the load

Specifications:

  • Number of channels: 1
  • Output voltage: 0...60 V
  • Output current: 0...5 A
  • Inaccuracy of output voltage setting: 0.2% + 2 digits
  • Inaccuracy of output current setting: 1% + 2 digits
  • Voltage ripple and noise, RMS (typical): 1mV
  • Current ripple and noise, RMS (typical): 10 mA
  • Power supply: 110V/220V
  • Dimensions: 9.8 x 6 x 14 in / 250 x 150 x 355 mm
  • Weight: 21.1 lb / 9.6 kg

Standard accessories:

  • Power cord
  • User manual

Frequently Asked Questions

  • May I use AKTAKOM power supplies to charge accumulators?

  • May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.
