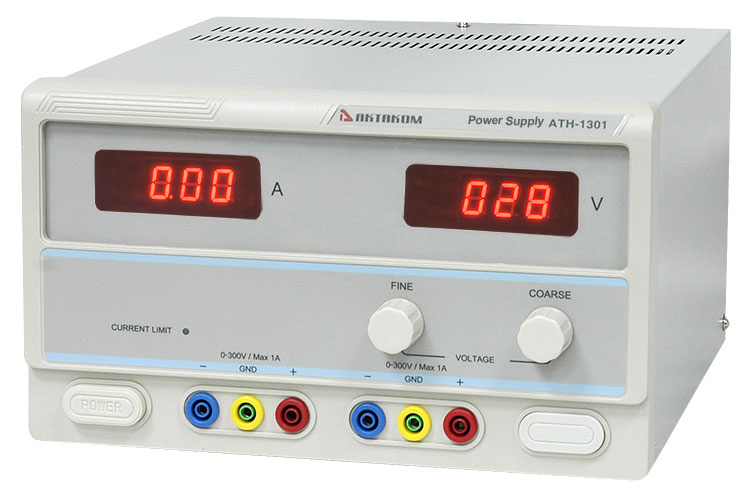

ATH-1301 DC Power Supply 300V / 1A 1 Channel


Perfect choice for repair and debugging processes and an ideal power supply for research laboratories. Input voltage: 110VAC~127VAC±10%/60Hz; 220VAC~240VAC±10%/50Hz (Switchable). Output voltage: 0…300 V. Output current: 0…1 A. Line regulation: CV ≤ 2 x 10-3 + 30mV. CC ≤ 2 x 10-3+ 3mA. Load regulation: CV ≤ 2 x 10-3+ 0.2 V. CC ≤ 2 x 10-3+ 0.5 mA. Dimensions: 10.2 x 6.3 x 13.4 in / 260 x 160 x 330 mm. Weight: 17 lb / 7.7 kg.

AKTAKOM ATH-1301 is high voltage DC regulated power supply, with its continuously adjustable voltage output. Constant voltage and current limited are switchable automatically. The unit features in small size, good performance, novel appearance and etc, it is the ideal power supply unit for science investigation, college, factory, electronic appliance maintenance and etc.

Features:

  • Constant voltage and constant current
  • Aluminium alloy panel
  • Two LEDs display output volt and amp

Specifications:

  • Input voltage:
    - 110VAC~127VAC±10%/60Hz
    - 220VAC~240VAC±10%/50Hz (Switchable)
  • Output voltage: 0…300 V
  • Output current: 0…1 A
  • Line regulation:
    - CV ≤ 2 x 10-3 + 30mV
    - CC ≤ 2 x 10-3+ 3mA
  • Load regulation:
    - CV ≤ 2 x 10-3+ 0.2 V
    - CC ≤ 2 x 10-3+ 0.5 mA
  • Ripple and noise:
    - CV ≤ 50 mV rms
    - CV ≤ 1 mV rms
  • Protection: over current
  • Display accuracy
    - Volt indication: ±(0.5%Rdg+2 digits)
    - Ampere indication: ±(1.0%Rdg+2 digits)

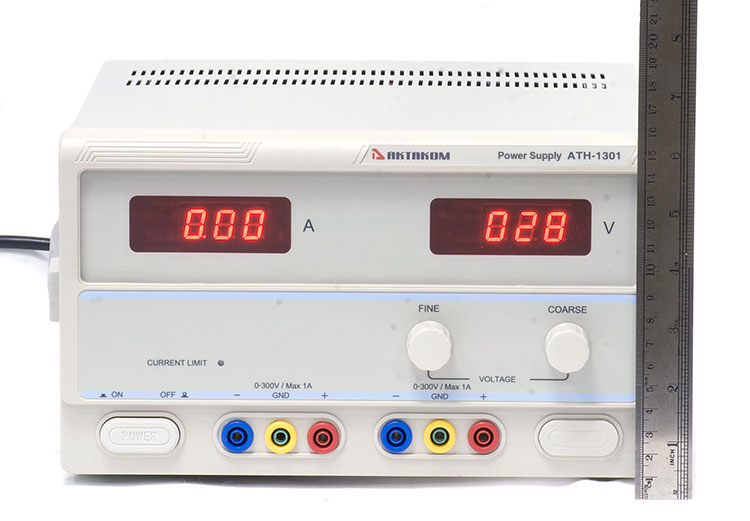

  • Dimensions: 10.2 x 6.3 x 13.4 in / 260 x 160 x 330 mm
  • Weight: 17 lb / 7.7 kg

Accessories:

  • User Manual
  • Power Cord
