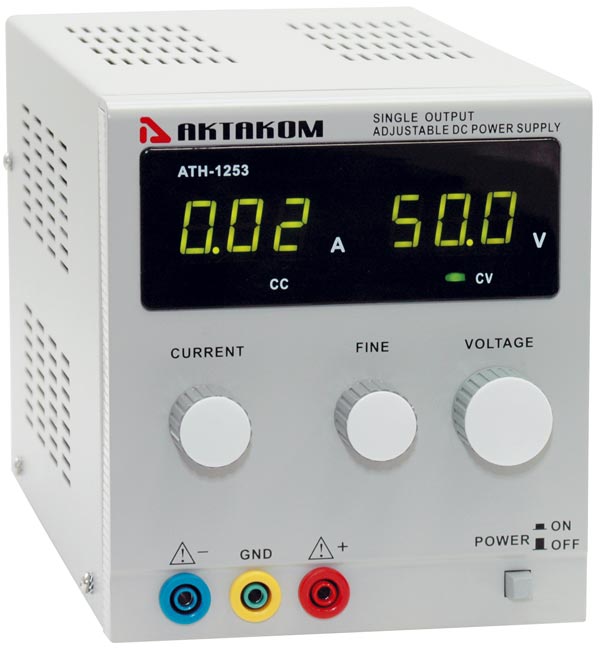

ATH-1253 DC Power Supply 50V / 3A 1 Channel


Perfect choice for repair and debugging processes and an ideal power supply for research laboratories. Constant voltage and constant current. Aluminium alloy panel. Two LEDs display output volt and amp. Output voltage: 0~50V. Output current: 0~3A. Dimensions: 5.2 6.3 x 10.6 in / 132 x 160 x 270 mm. Weight: 187.7 oz / 5.32 kg.

AKTAKOM ATH-1253 Power supply provides smoothly regulated stabilized voltage and stabilized current. Due to its high accuracy of the output parameters and good price ATH-1253 laboratory power supply is perfect choice for repair and debugging processes and an ideal device for research laboratories.

Features:

  • Constant voltage and constant current
  • Aluminium alloy panel
  • Two LEDs display output volt and amp

Specifications:

  • Line Regulation: CV1X10-4+3mV CC2X10-3+3mA
  • Load Regulation: CV1X10-4+2mV CC2X10-3+3mA(l≤3A) CV1X10-4+5mV CC2X10-3+5mA(l>3A) CV1X10-4+5mV CC2X10-3+5mA(l≥10A)
  • Ripple & Noise: CV0.5mV rms CC3mA rms(1≤3A) CV1.0mV rms CC3mA rms(1>3A) CV3.0mV rms CC9mArms(l≥5A)
  • Display accuracy: Voltmeter ± (0.2%Rdg+2digits), ± 2.5% Full Scale Ampmeter±(1.0%Rdg+2digits), ±2.5% Full Scale
  • Input Voltage: 110~127VAC±10% 220~240VAC±10% Switchable
  • Output voltage: 0~50V
  • Output current: 0~3A
  • Dimensions: 5.2 6.3 x 10.6 in / 132 x 160 x 270 mm
  • Weight: 187.7 oz / 5.32 kg

Accessories:

  • User Manual
  • Power Cord
