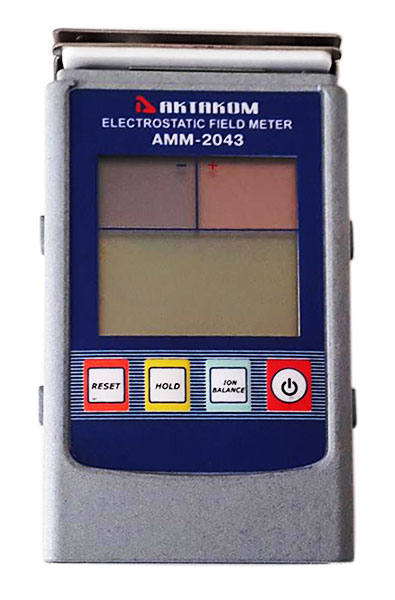

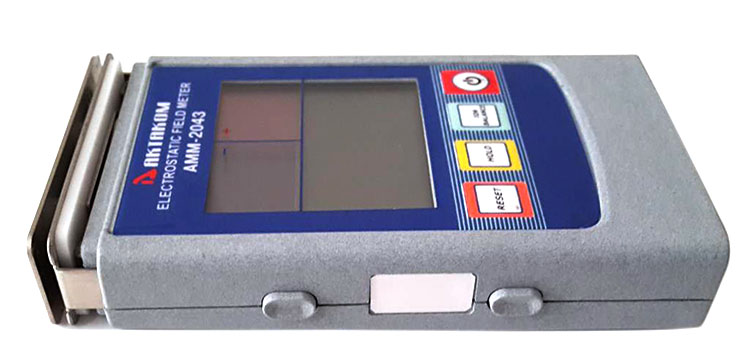

AMM-2043 Electrostatic Field Meter


AKTAKOM AMM-2043 electrostatic field meter is a palm-sized electrostatic measuring device ideal for checking ion balance and sensor for polarity of static charge. Static voltage measuring range: ± 0 ~ ± 1.49 kV (Low range), ± 1.0 ~ ± 20.0 kV (High range). Ion balance voltage measuring range: 0 ~ ± 200 V. Measuring distance (between charged object and field meter): 1 in ± 0,02 / 25 mm ± 0.5. Accuracy: ± 10%. Weight with battery: Approx. 4.2 oz / 140 g without ion balance plate (Ion balance plate : Approx. 1.1 oz / 30 g). Dimensions (Height including the Charge plate x Thickness x Width): 4.8 x 1 x 2.9 in / 123 x 25 x 73 mm.

AKTAKOM AMM-2043 electrostatic field meter is a palm-sized electrostatic measuring device ideal for checking ion balance and sensor for polarity of static charge.

This device is used for checking the performance of ionizers, locating and measuring electrostatic charge build-up, deciding best location for installing ionizers and testing their efficiency, etc.

Features:

  • Measuring polarity and intensity of static charge on parts and assembly lines
  • Checking ion balance performance of various ionizers

Specifications:

  • Static voltage measuring range: ± 0 ~ ± 1.49 kV (Low range), ± 1.0 ~ ± 20.0 kV (High range)
  • Ion balance voltage measuring range: 0 ~ ± 200 V
  • Measuring distance (between charged object and field meter): 1 in ± 0,02 / 25 mm ± 0.5
  • Accuracy: ± 10%
  • Ambient conditions: 10°C ~ 40°C, 680%RH or lower
  • Display: Large LCD display (Digital and bar graph)
  • Power: 9V, 6F22Y manganese battery: 1PCE (Life: Approx. 30hours)
  • Weight with battery: Approx. 4.2 oz / 140 g without ion balance plate (Ion balance plate : Approx. 1.1 oz / 30 g)
  • Dimensions (Height including the Charge plate x Thickness x Width): 4.8 x 1 x 2.9 in / 123 x 25 x 73 mm

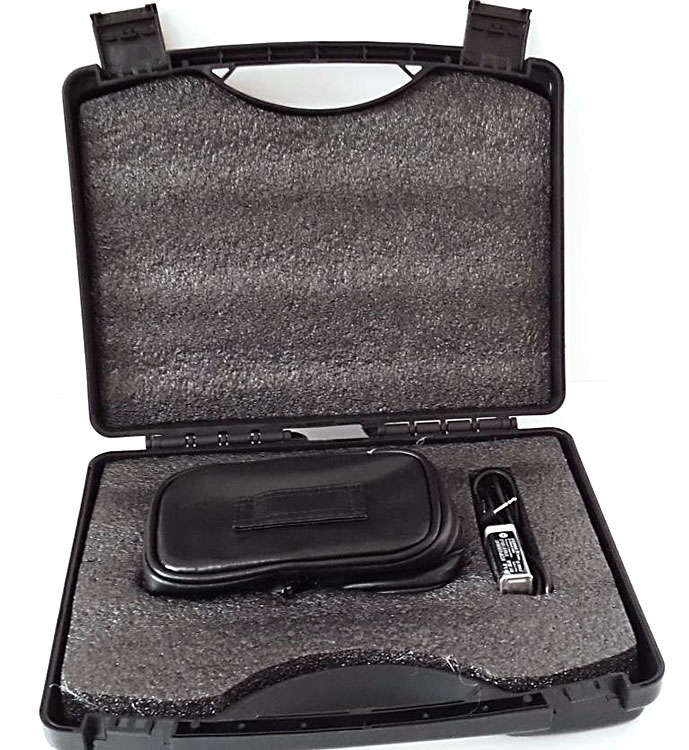

Accessories:

  • Charge plate for ion balance measurement :1PCE

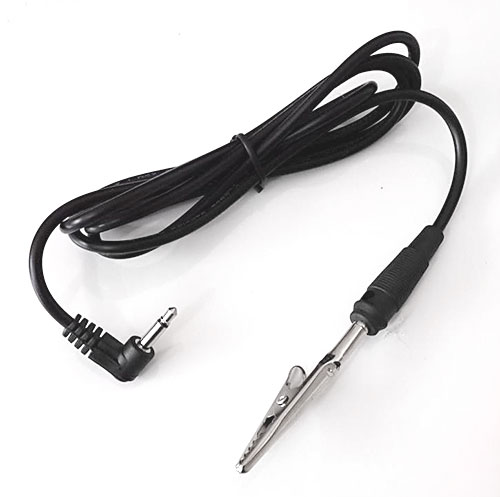

  • Ground cord : 1PCE (w/ alligator clip)
  • Battery : 1PCE (006P)

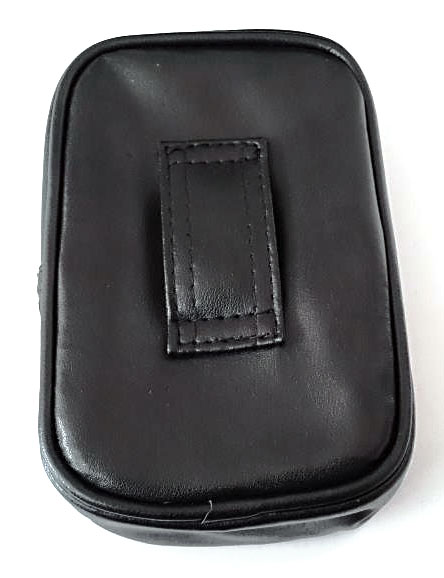

  • Soft case : 1PCE
  • Case material: Conductive resin (ABS)

Static charge measurement mode (Standard mode) of AMM-2043

For accurate measurement, make sure to ground AMM-2043 with its ground wire.

Press "POWER" button once and the unit will be set to "static charge measurement mode (standard mode).

The digital numerical value and the bar graph displayed on the LCD indicate the static voltage on the target object. AMM-2043 is calibrated for the voltage range 0 to ± 20kV.

If the reading blinks at [±22.0] with a continuous warning sound during the static charge measurement, maximum voltage reading limit has been exceeded.

The measuring distance between AMM-2043 and the target object needs to be 1 in ± 0,02 / 25 mm ± 0.5. This measuring distance can be easily checked by “Focus Rings” beamed from the two red LEDs on the sensor side of AMM-2043. Position AMM-2043 where the two red light beams converge as one concentric circle for accurate measurement.

Ion balance measuring mode of AMM-2043

AKTAKOM AMM-2043 designed to be compact and lightweight is ideal for periodic verification of ionizers, including those installed on hard-to-reach places like automated machinery or workbenches. AMM-2043 can be used to measure low voltages up to 200V in the ion balance mode.

For accurate measurement, make sure to ground AMM-2043 with its ground wire.

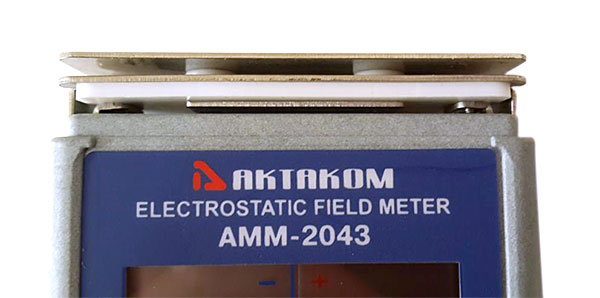

Before starting ion balance measurement, install the ion balance plate to the top end having the sensor. The ion balance plate can be kept attached to the bottom end when not in use.

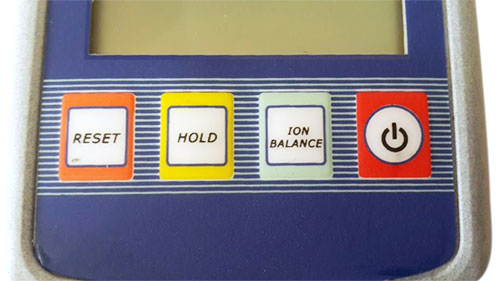

Turn AMM-2043 on by pressing POWER button and then press ION BALANCE button.

AMM-2043 indicates its operating status by beep sound.

Frequently Asked Questions

  • What does beep sound represent when operating AMM-2043 electrostatic field meter?
  • How can I switch on the backlight of AMM-2043?

  • What does beep sound represent when operating AMM-2043 electrostatic field meter?

    When you hear beep sound it can mean the following:

    • when turned on w/o auto power off function … 3 beeps
    • auto power off indication … 5 beeps
    • over range … 1 long beep


    Up

    How can I switch on the backlight of AMM-2043?

    To turn on the LCD backlight you should keep “POWER” button pressed for 1-3 secs.
