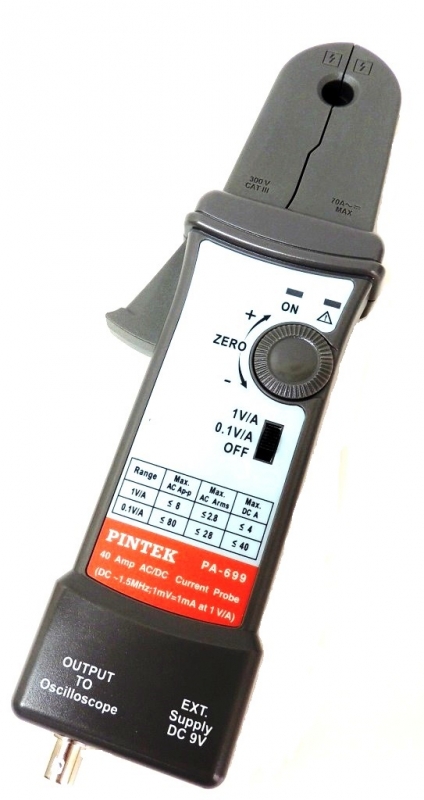

PA-699 Current Probe


Max. DC A Current: & plus mn; 40A DC. Max. AC A Peak: 80A p-p. Max. AC A RMS: 28Arms. Frequency Range: DC to 1.5MHz (-3dB). Max. Sensitivity: 1mA. Battery Type: 9V.

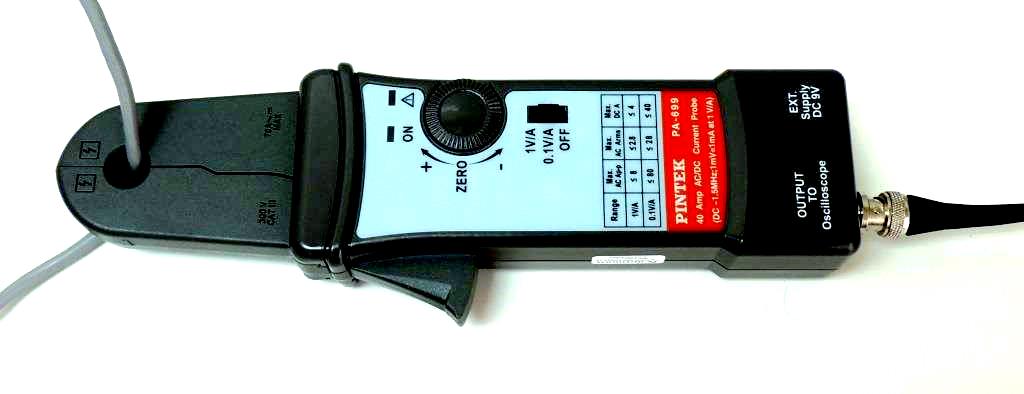

The PA-699 current probe enables a general purpose oscilloscope to display AC and DC current signals up to 40 A Peak (28A RMS). The PA-699 current probe can also make AC and DC measurements with a multimeter by using the recommended accessory (BNC-to-banana) plug adapter.

Features

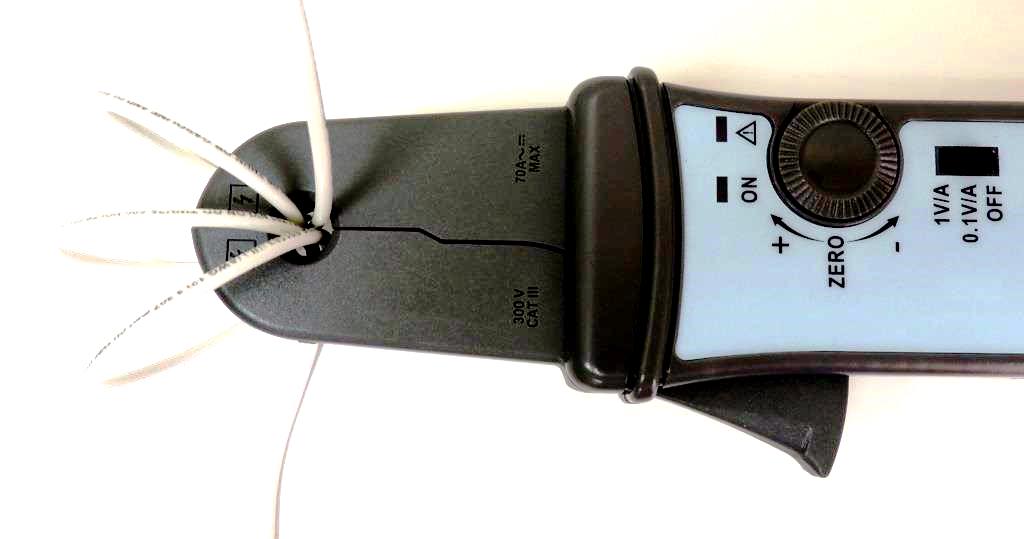

  • High sensitivity of 1mA
  • Wide AC bandwidth up to 1MHz
  • Low noise (about 1/3 lower than competitors)
  • Dual power: AC adaptor for indoor, batteries for outdoor applications
  • Detachable output wire — convenient for packing, storing and self examination for any damages

Specifications

Max. DC A Current± 40A DC
Max. AC A Peak80A p-p
Max. AC A RMS28A rms

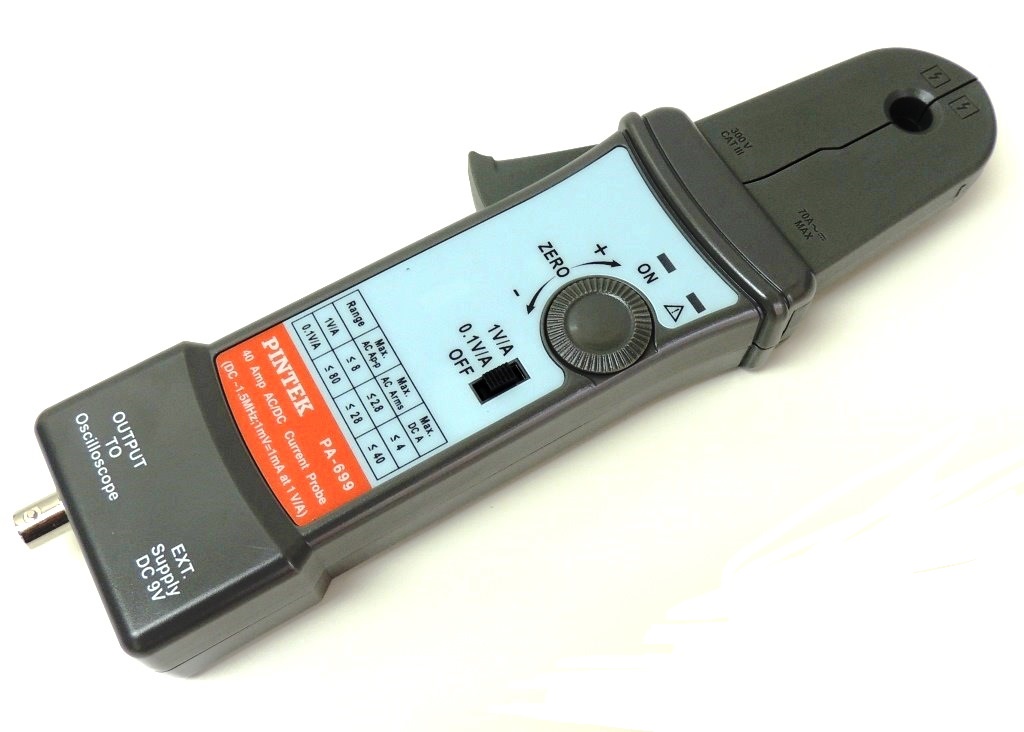

Range Selection
Division
2 Range
0.1V/A;1V/A
Max. Sensitivity1mA
DC Accuracy Typical±3% ±10mA at 1/A
(100 mA to 80A peak range)
±4% ±100mA at 0.1V/A
(100mA to 80A peak range)
Frequency RangeDC to 1.5MHz (-3dB)
Rise Time0.23μs (Typ.)

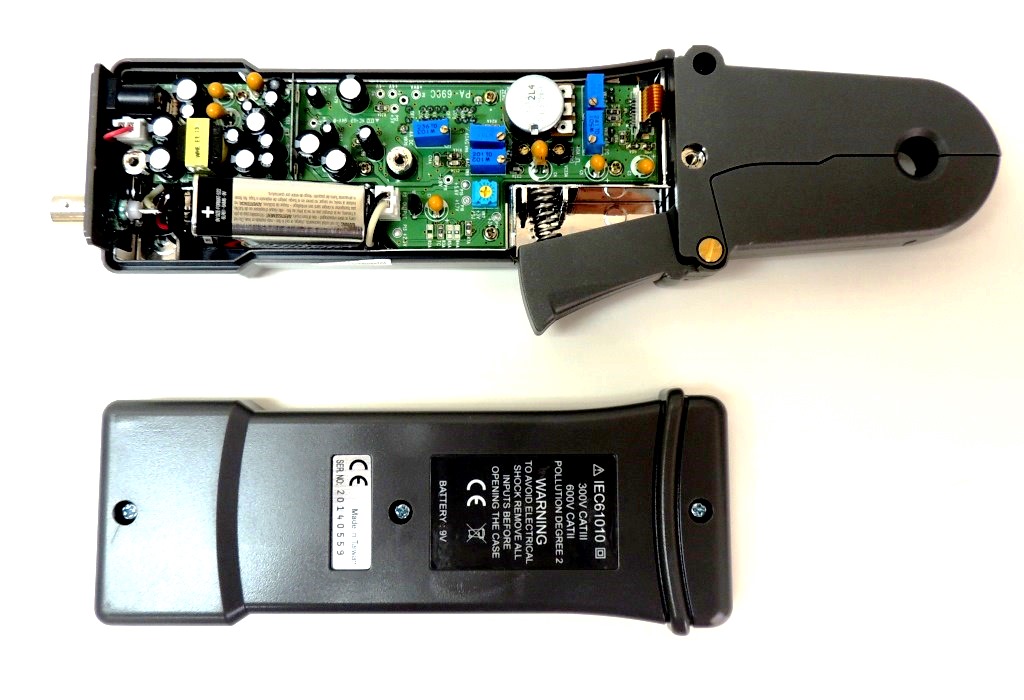

Battery Type and Life, typical9V NEDA 1604A, IEC 6LR61
4 hours minimum (1 each)
Max. Working Voltage
Max Floating Voltage
600V CAT III
600V CAT II
Cable Length 100 cm (3.3 feet)
Maximum Conductor Size 11 mm (0.43 inch)
Weight260 g (9.5 oz) (without battery)

Accessories

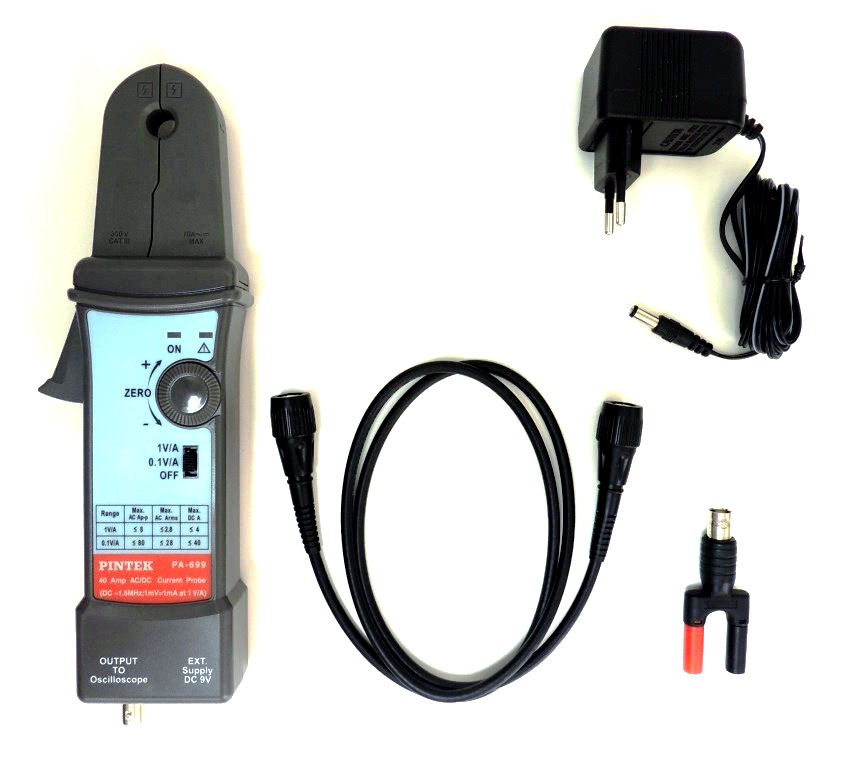

  • An Insulated BNC/BNC lead, length 100cm
  • AC Adapter
  • Connector BNC to Banana
  • Instruction Manual
