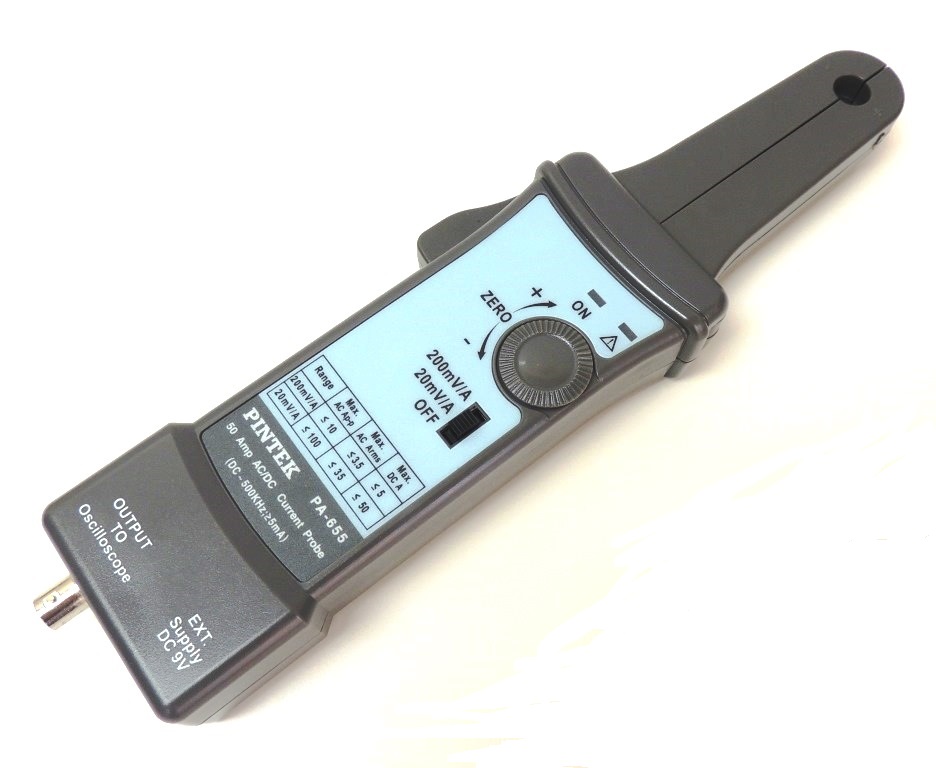

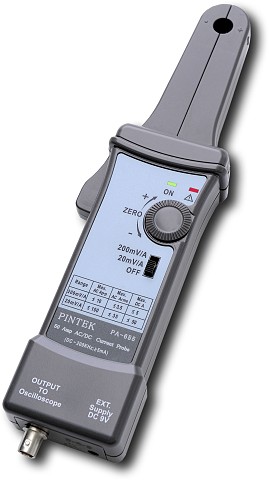

PA-655 Current Probe


Max. DC A Current: ± 50A DC. Max. AC A Peak: 100A p-p. Max. AC A RMS: 35Arms. Frequency Range: DC to 500kHz (-3dB). Max. Sensitivity: 5mA. Battery Type: 9V.

The PA-655 current probe enables a general purpose oscilloscope to display AC and DC current signals up to 100A Peak (35A RMS). The PA-655 current probe can also make AC and DC measurements with a multimeter by using the recommended accessory (BNC-to-banana) plug adapter.

Features

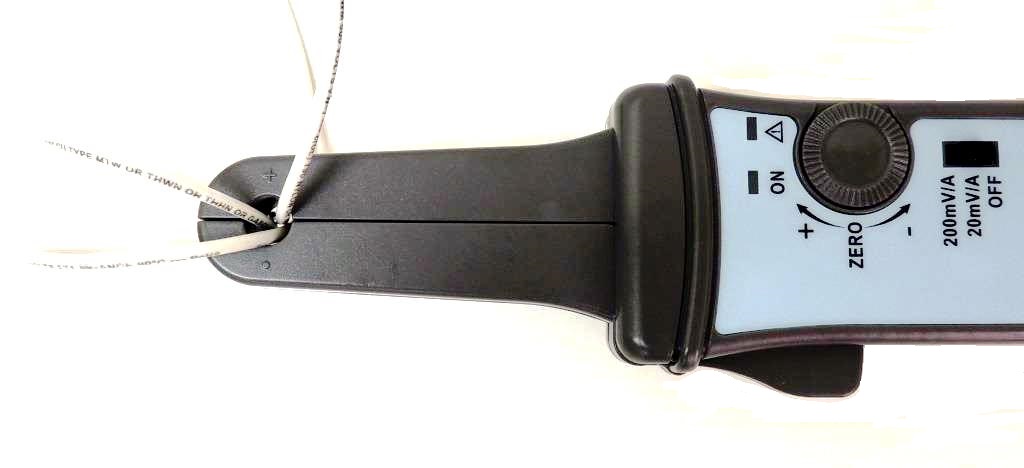

  • High sensitivity of 5mA
  • Wide AC bandwidth up to 500kHz
  • Low noise (about 1/3 lower than competitors)

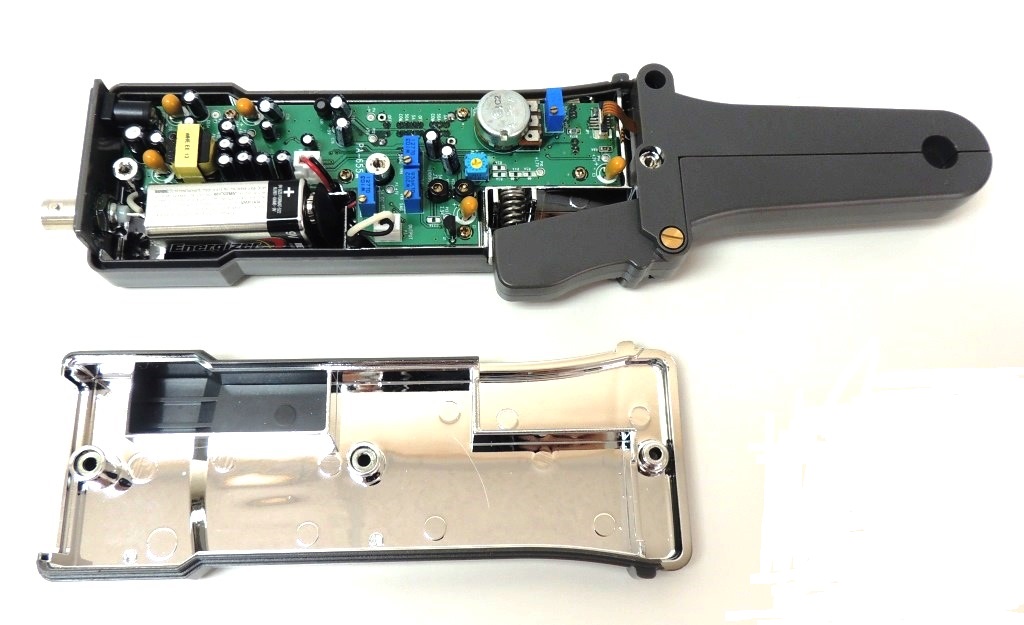

  • Dual power: AC adaptor for indoor, batteries for outdoor applications
  • Detachable output wire — convenient for packing, storing and self examination for any damages

Specifications

Max. DC A Current± 50A DC
Max. AC A Peak100A p-p
Max. AC A RMS35A rms
Range Selection
Division
2 Range
20mV/A;200mV/A
Max. Sensitivity5mA
DC Accuracy Typical±3% ±30mA at 200mV/A
(30 mA to 5 A peak range)
±4% ±300mA at 20mV/A
(300mA to 20A peak range)
±15% max at 200mV/A
(20A peak to 50A peak range)
Frequency RangeDC to 500kHz (-3dB)
Rise Time0.7μs (Typ.)
Battery Type and Life, typical9V NEDA 1604A, IEC 6LR61
13 hours minimum (1 each)
Max. Working Voltage
Max Floating Voltage
300V CAT III
600V CAT II
Cable Length 100 cm (3.3 feet)
Maximum Conductor Size 11 mm (0.43 inch)
Weight260 g (9.5 oz) (without battery)

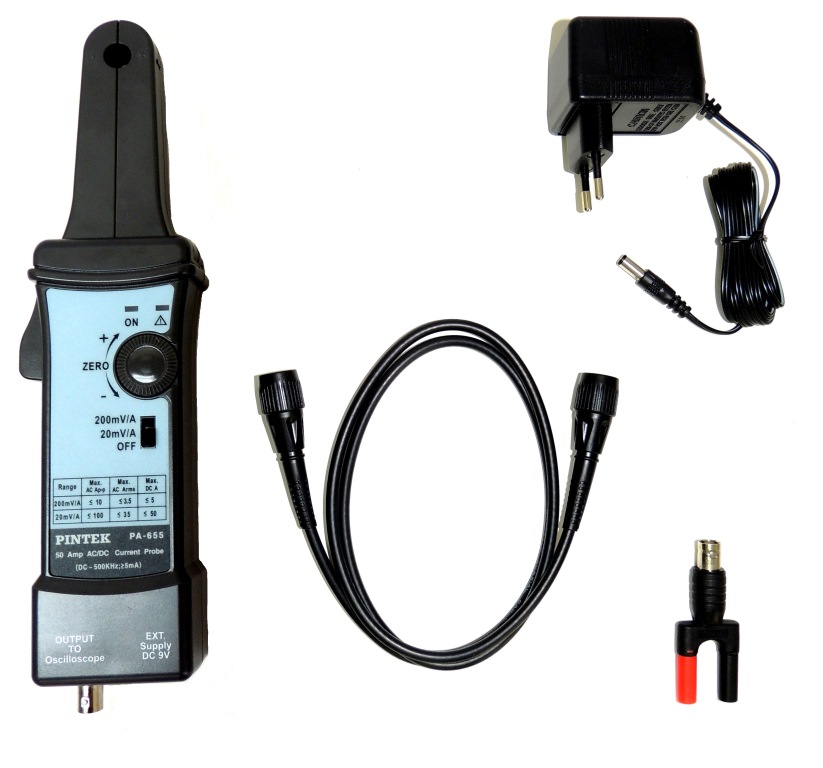

Accessories

  • An Insulated BNC/BNC lead, length 100cm
  • AC Adapter
  • Connector BNC to Banana
  • Instruction Manual
