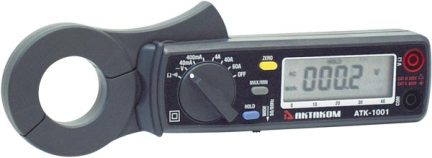

ATK-1001 Clamp Meter


Perfect measuring tool for non-contact monitoring of AC parameters and measuring the magnitude of leakage currents in the conductor. AC measurement at 0 ...60 A range with 10 μA resolution. AC voltage measurement at 0 ... 400 V range with 0.1 V resolution. Resistance measurement at 0 ... 400 Ohm range with 0.1 Ohm resolution. Diameter of coverage: 1.2 in / 30 mm. 5 ranges when measuring AC (40 mA, 400 mA, 4 A, 40 A, 60 A). Sound continuity test. 3ѕ digit LCD. Frequency range: 40 ... 1000 Hz. Graphical scale. "0" setting with a single button. Data hold function. Max./min. values hold. Relative measurement mode .Overload protection (up to 600 V) when measuring resistance. Dimensions: 7.2 x 2.5 x 1.4 in / 183 x 63.6 x 35.6 mm. Weight: 6.7 oz / 190 g.

Easy to use and low-cost Aktakom ATK-1001 clamp meter is used for non-contact monitoring of AC parameters and measuring the magnitude of leakage currents in the conductor. Covering the conductor with the clamp meter jaws you immediately get the results on the display.

Perfect measuring tool for electricians and power engineers.

Specifications

  • AC measurement at 0...60 A range with 10 μA resolution
  • AC voltage measurement at 0...400 V range with 0.1 V resolution
  • Resistance measurement at 0...400 Ohm range with 0.1 Ohm resolution
  • Diameter of coverage: 1.2 in / 30 mm
  • 5 ranges when measuring AC (40 mA, 400 mA, 4 A, 40 A, 60 A)
  • Sound continuity test
  • 3 digit LCD
  • Frequency range: 40...1000 Hz
  • Graphical scale
  • "0" setting with a single button
  • Data hold function
  • Max./min. values hold
  • Relative measurement mode
  • Overload protection (up to 600 V) when measuring resistance
  • Power supply: 3 V (1.5 V batteries 2 pcs)
  • Consumption current 10 mA
  • Dimensions: 7.2 x 2.5 x 1.4 in / 183 x 63.6 x 35.6 mm
  • Weight: 6.7 oz / 190 g

Standard accessories

  • User manual
  • Measuring probes
  • 1.5 V batteries 2 pcs
