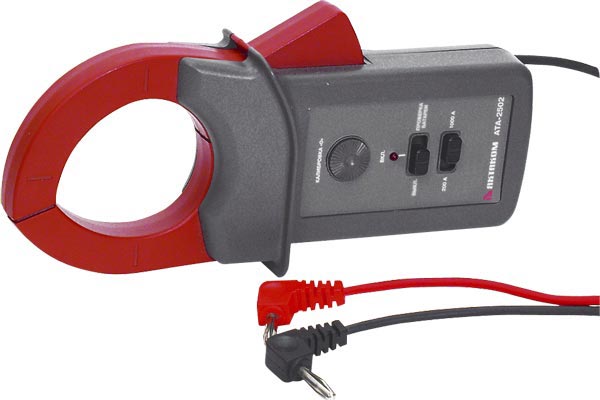

ATA-2502 Clamp Meter


AKTAKOM ATA-2502 is a clamp meter-adapter with analog output. It can be connected to a multimeter to display results. DCA measurement 100 mA...1000 A, ACA measurement (40...400 Hz) 100 mA...1000 A. Jaw size 33,5 mm. Power supply 9 V battery. Dimensions: 7.48x2.52x1.3 in / 190x64x33 mm. Weight 12.17 oz / 345 g.

AKTAKOM ATA-2502 is a clamp meter-adapter with analog output. It can be connected to a multimeter to display results.

  • DC Current (DCA): 1000 A
  • DCA Accuracy: ±1,5%
  • AC Current (ACA): 1000 A
  • ACA Accuracy: ±1,5%
  • Hall effect sensor
  • Low battery indicator
  • Frequency range: 40...400 Hz
  • Output signal: 1 mV / 1 A (AC, DC)
  • Jaw size: 1.32 in / 33.5 mm
  • Power supply: 9V battery
  • Dimensions: 7.48 x 2.52 x 1.3 in / 190 x 64 x 33 mm
  • Weight: 12.17 oz / 345 g.
