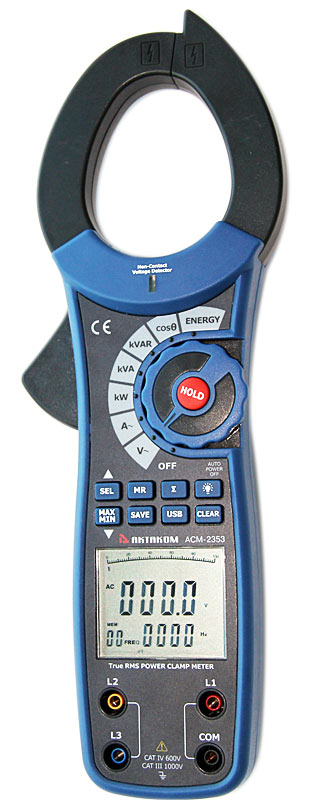

ACM-2353 Clamp Meter


AC Voltage: 100V/400V/750V ±(1.2%+5digits); AC Current: 40A/100A/400A/1000A ±(2%+5digits); Active Power: 0.01kW-750kW ±(3%+5 digits); Apparent Power: 0.01kVA-750kVA ±(3%+5digits); Reactive Power: 0.01kVAr-750kVAr ±(4%+5digits); Power Factor: 0.3~1(Capacitive or Inductive ) ±(0.02+2digits); Phase Angle: 0°~90° ±2°

ACM-2353 Professional True RMS 1000A AC Watt Clamp Meter provides accurate Watt, AC Current and Voltage readings regardless of waveforms.

Features

  • Analysis for Single Phase and Balanced 3 phase system
  • True RMS Value (Voltage and Current)
  • Large LCD Display with Backlight
  • USB interface
  • 4 digits with dual display LCD
  • MIN / MAX measurement
  • True power / apparent power / power factor measurement
  • Data Hold
  • Auto Ranging
  • Overflow Indication
  • Auto Power Off
  • Manual Data Memory and Read (99 sets)
  • NCV Detection
  • 2.16" (55mm) Jaw opening

Specifications

Function Range Max Resolution Accuracy
AC Voltage100V0.01V ±(1.2%+5d)
400V 0.1V
750V 1V
AC Current
40A
0.01A
±(2.0%+5d)
400A 0.1A
1000A 1A
Active Power
750kW 0.01kW±(3.0%+5d)
Apparent Power750kVA0.01kVA±(3.0%+5d)
Reactive Power750kVAR0.01kVAR±(4.0%+5d)
Power Factor (Capacitive or Inductive) 0.3...1 0.1
±(0.02%+2d)
Phase Angle 0°...90°±2°
Frequency50Hz...200Hz1Hz ±(0.5%+5)
Energy1...9999kWh
1kWh ±(3%+2)

General Specifications

  • Power Analysis: Single Phase and Balanced 3 phase system
  • LCD: 4 digits, dual
  • Auto Power Off: 30 minutes
  • Manual Data Memory and Read: 99 sets
  • Jaw opening: 2.16" (55mm)
  • Size: 23.4×4×1.8in/295×100×46mm
  • Weight: 19oz/537g

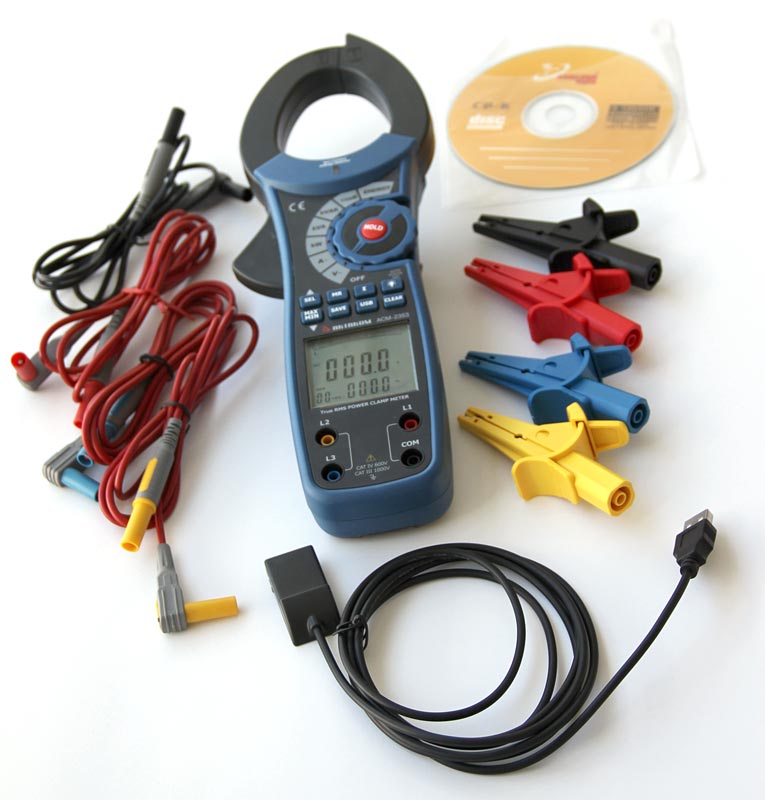

Accessories

Included

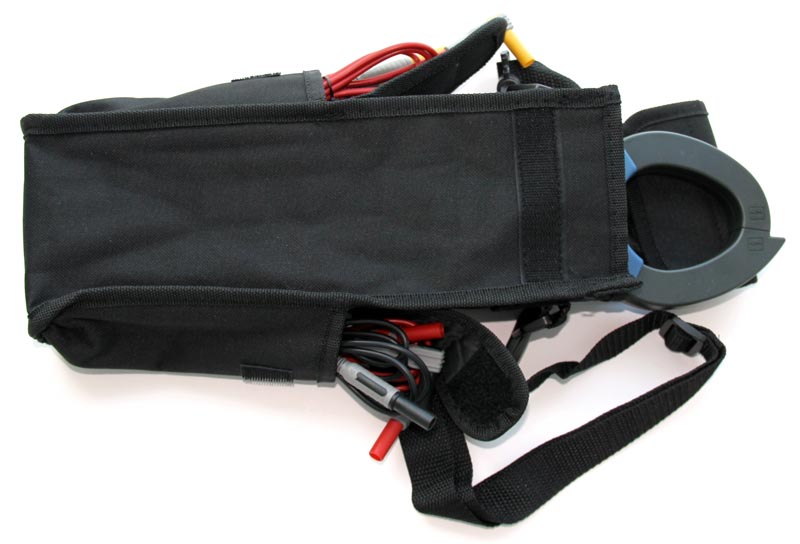

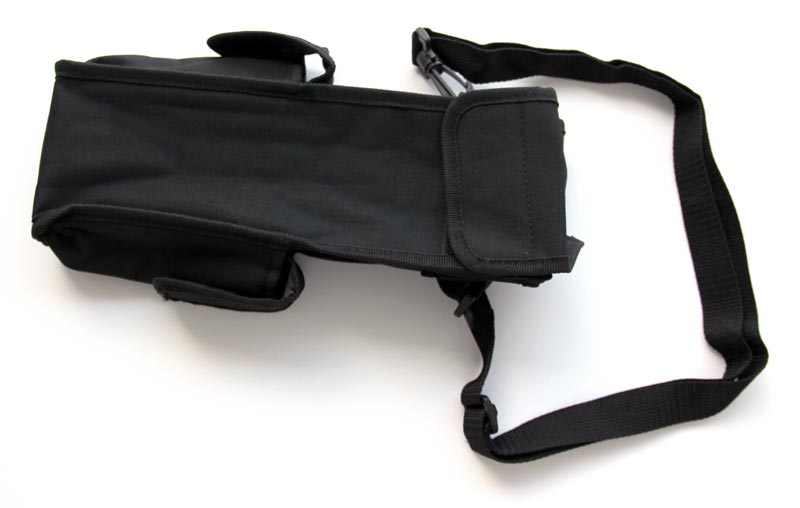

1. Carrying case

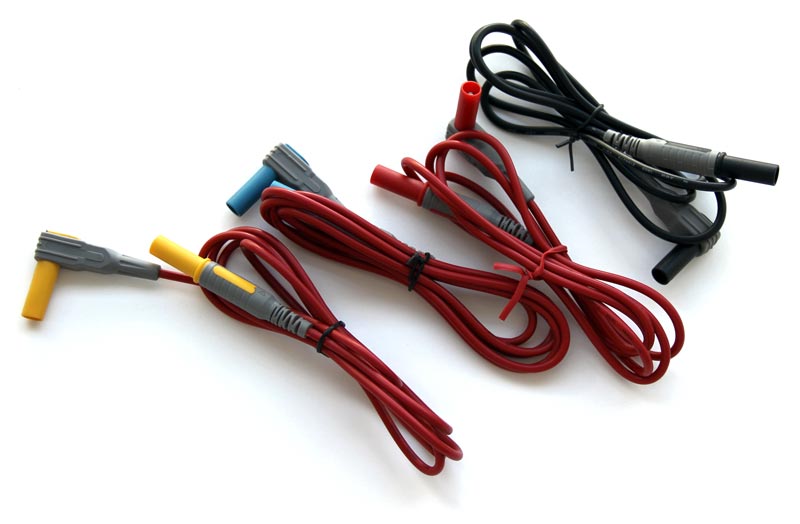

2. Test leads

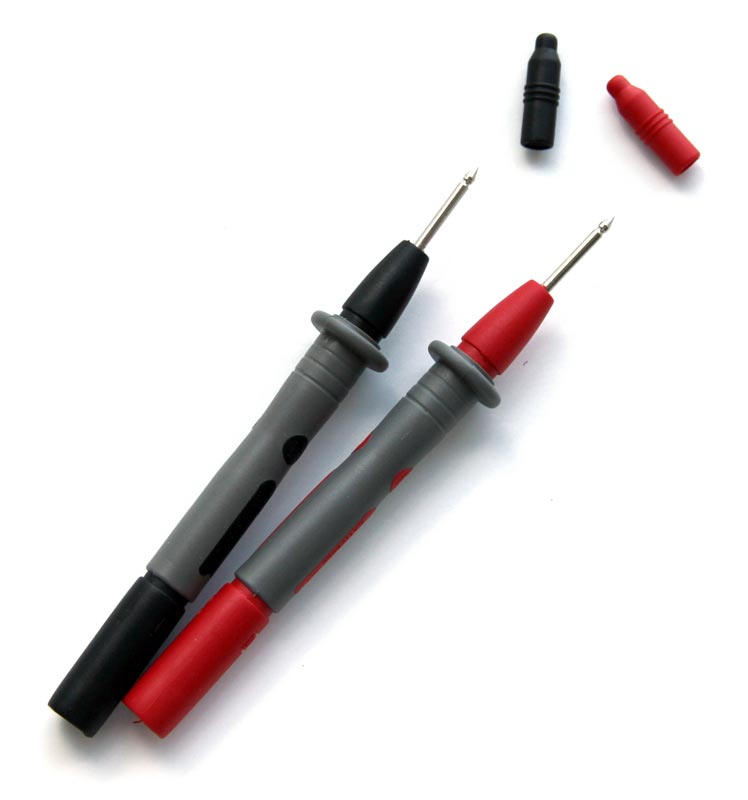

3. Test probes

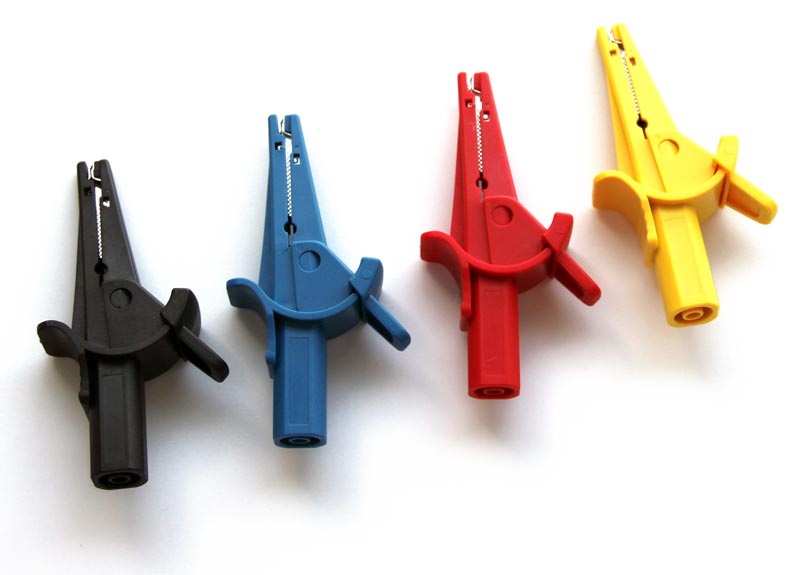

4. Crocodile clips

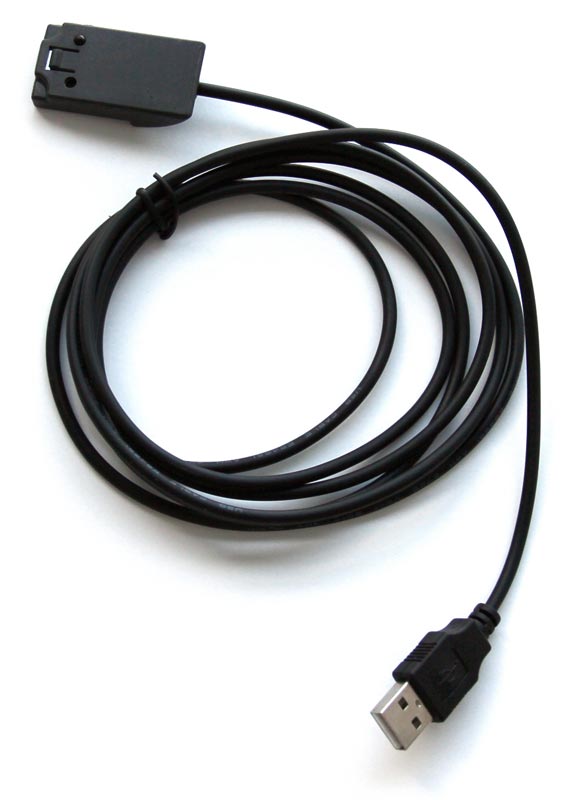

5. USB cable

6. 9V battery

Optional

1. Software (Available for download by registration)

Reactive Power (main display) + Apparent Power (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To measure Reactive Power + Apparent Power, connect the Meter as follows:

  1. Dial the Rotary to kVAR to select Reactive Power + Apparent Power range.
  2. Press the lever to open the transformer jaw, and clamp them.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
For more information go to User Manual.

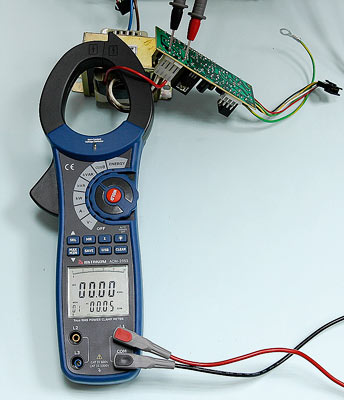

Reactve Power Measurement

True RMS Measurement and Average Value Measurement

The True RMS measurement method can measure accurately the effective value of non-sine wave input signal.

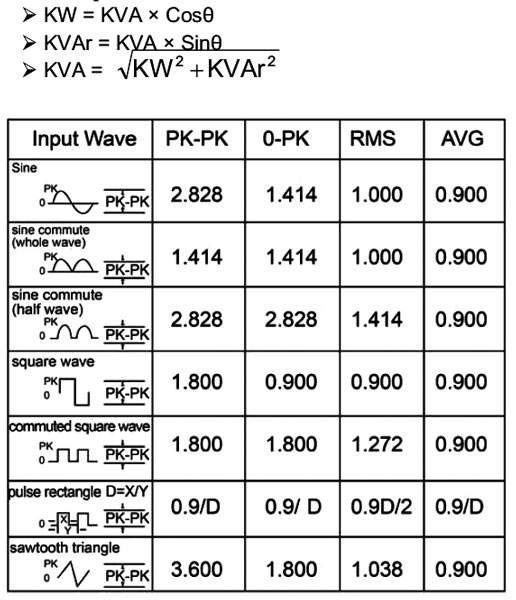

Average value measurement method can measure the mean value of one sine wave input signal, and then displays it as RMS value When the input waveform has distortion, measuring tolerance will be included. The total tolerance depends on the total distortion. Below table shows the waveform coefficient and the relationship and the requested changing factor of sine wave, square wave, pulse rectangle wave, saw tooth triangle wave, RMS value and average value. The clamp Meter software designing base on the following formula:

Active Power (main display) + Phase Angle (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To measure active power + phase angle, connect the Meter as follows:

  1. Dial the Rotary to kW to select Active power + Phase angle range.
  2. Press the lever to open the transformer jaw, and clamp them to the corresponding phase of tested conductor.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
For more information go to User Manual.

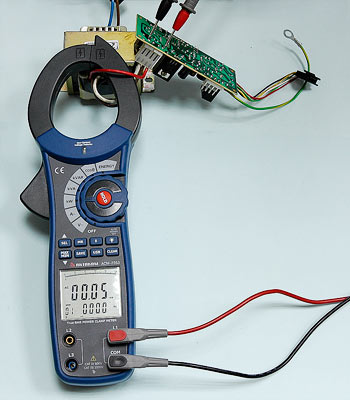

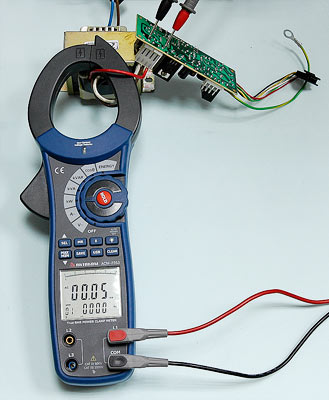

Active Power Measurement

Apparent Power (main display) + Reactive Power (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To measure Apparent Power + Reactive Power, connect the Meter as follows:

  1. Dial the Rotary to kVA to select Apparent Power + Reactive Power range.
  2. Press the lever to open the transformer jaw, and clamp them.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
For more information go to User Manual.

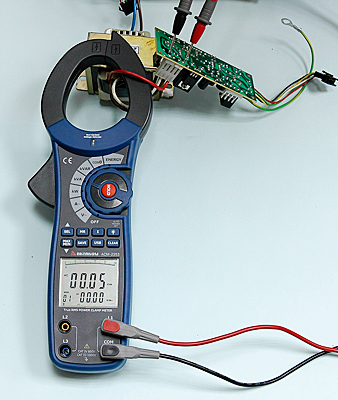

Apparent Power Measurement

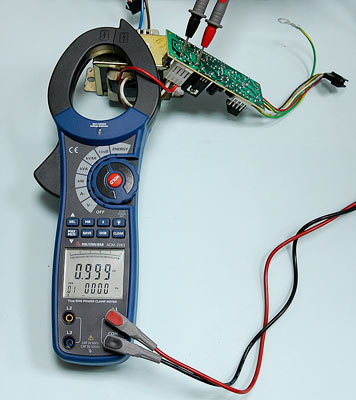

Power Factor (main display) + Phase Angle (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V and AC current 1000A.

To test for Power factor (main display) + Phase angle (secondary display), connect the Meter as follows:

  1. Dial the Rotary to cosθ to select Power factor + Phase angle range.
  2. Press the lever to open the transformer jaw, and clamp them to the corrresponding phase of tested conductor.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
  5. MAXMIN button are not valid when measuring power factor.
For more information go to User Manual.

Reactive Power (main display) + Apparent Power (secondary display) Measurement

Active Energy (main display) + Time (secondary display) Measurement

Warning. To avoid damages to the Meter or harms to you, do you measure higher than AC voltage 750V rms and AC current 1000A rms.

To test for Active Energy (main display) + Time (secondary display), connect the Meter as follows:

  1. Dial Rotary to ENERGY range.
  2. Press the lever to open the transformer jaw, and clamp them to the corresponding phase of tested conductor.
  3. Insert red test leads to L1 input terminal and connecting it.
  4. Insert black test leads to COM input terminal and connect it.
  5. MAXMIN are not valid when measuring active energy.

Note

  • When there is no input signal, it cannot carry out active energy measurement.
  • When testing has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.

For more information go to User Manual.

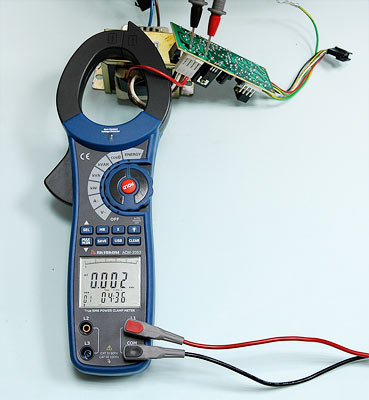

Active Energy Measurement

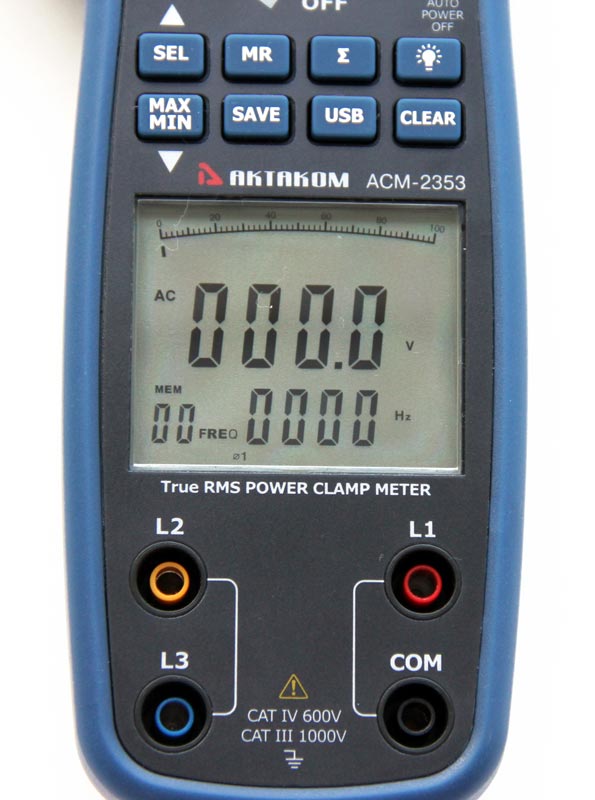

AC Voltage (main display) + Frequency (secondary display) Measurement

The AC Voltage ranges are: 100V, 400V and 750V. The frequency range is: 50Hz~60Hz.

To measure AC voltage + frequency, connect the Meter as follows:

  1. Insert the red test lead into the L1, L2, L3 input terminal, and black test lead to the COM input terminal.
  2. Dial the Rotary to VAC to select Voltage + Frequency range.
  3. Connect the red test leads (L1, L2, L3 input terminal) to the corresponding three phases loaded live wire. Black test lead (COM input terminal) to the corresponding three phases loaded neutral wire.
  4. Press SEL to select phase location, the display shows the corresponding phase symbol. L1 means the first phase Ø1, L2 means the second phase Ø2, L3 means the third phase Ø3.
  5. The display shows the corresponding True RMS voltage value and frequency value of each phase.
  6. Press MAXMIN, the LCD displays MAX, it starts recording the maximum AC voltage True RMS value.
  7. Press MAXMIN the LCD displays MIN, it starts recording the minimum AC voltage True RMS value.
    Press MAXMIN again to show the current AC voltage True RMS value.
  8. The display shows 0L when the input voltage is higher than 750V rms.

Note: When the measurement has been completed, disconnect the connection between the testing leads and the circuit under test and remove testing leads from the input terminals.

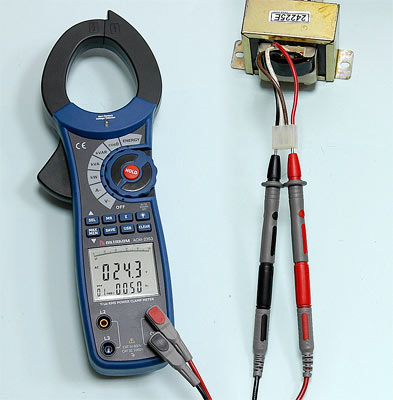

AC Voltage Measurement

AC Current (main display) + AC Voltage (secondary display) Measurement

The AC current ranges are: 40A, 100A, 400A and 1000A. The AC Voltage ranges are: 100V, 400V and 750V

To measure AC current + AC voltage, connect the Meter as follows:

  1. Dial the Rotary to AAC to select AC Current + AC Voltage range.
  2. Press the lever to open the transformer jaw.
  3. Center the conductor within the transformer jaw, then release the Meter slowly until the transformer jaw is completely closed, Make sure the conductor to be tested is placed at the center of the transformer jaw, otherwise it will cause deviation. The Meter can only measure one conductor at a time, to measure more than one conductor at a time will cause deviation.
  4. The double display shows the AC current True RMS value and AC voltage True RMS value.
  5. Press MAXMIN, the LCD displays MAX, it starts recording the maximum AC current True RMS value.
  6. Press MAXMIN, the LCD displays MIN, it starts recording the minimum AC current True RMS value.
    Press MAXMIN, again to show the present AC current True RMS value.
  7. The display shows 0L when the current of the tested conductor is higher than 1000A rms.

Note: When the measurement has been completed, disconnect the connection between the conductor under test and the jaw, and remove the conductor away from the transformer jaw of the Meter.

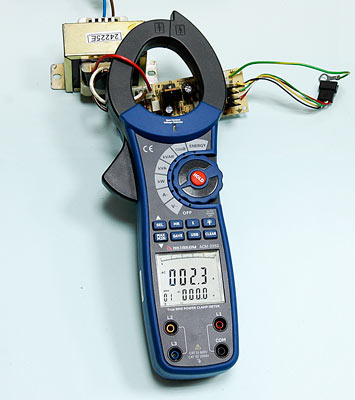

AC Current (main display) + AC Voltage (secondary display) Measurement

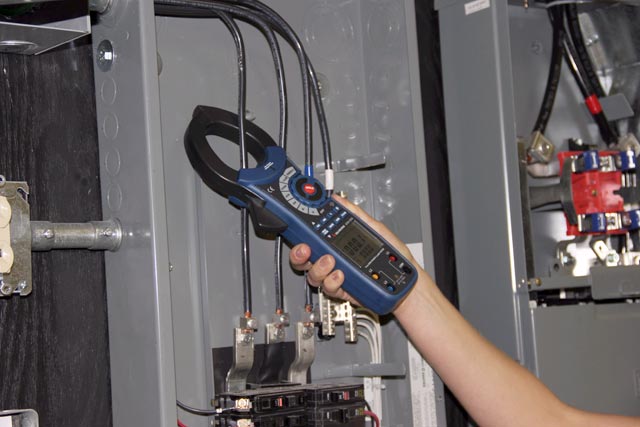

Current measurements with ACM-2353 on branch circuits of an electrical distribution system

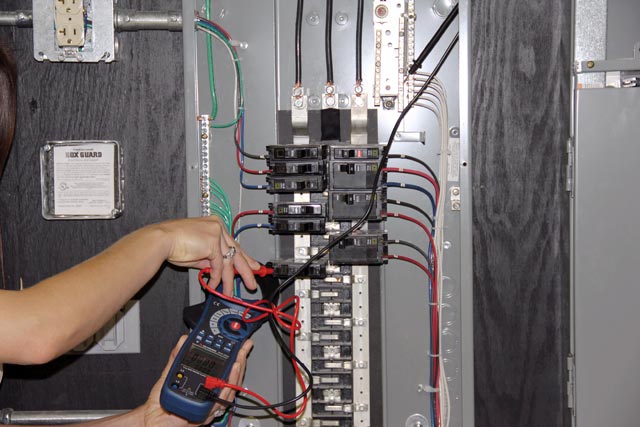

Power measurements with ACM-2353 on branch circuits of an electrical distribution system

Frequently Asked Questions

  • How to turn off the AUTOPOWER OFF?
  • Is my USB driver properly installed?

  • How to turn off the AUTOPOWER OFF?

    To turn off the AUTOPOWER OFF system in a ACM-2056 Clamp Meter, please press REL button for 2 seconds to turn on the Wireless USB function, the USB icon appears on the LCD.

    To turn off the AUTOPOWER OFF system in a ACM-2353 Clamp Meter, please press USB to turn on the USB function, the USB icon appears on the LCD.


    Up

    Is my USB driver properly installed?

    Go to your Control Panel \ System and Security \ System and then go to Device Manager to check if your USB driver is properly installed.

    If you can not see the driver and port it means you must reinstall the driver again or give us a call.
