AKTAKOM APS-7306L DC Programmable Power Supply

25.09.2024

Our range of Aktakom remote controlled power supplies includes APS-7306L model which is capable of powering radio technical equipment with stabilized voltage and current in repair process, laboratory research.

The feature of APS-7306L:

• dual LED display for voltage and current
• coarse and fine adjustments of voltage and current
• protection mode: current limiting
• output connectors: insulated safety plugs
• organic glass front panel / other panels made of steel
• memory:3 programmable memories

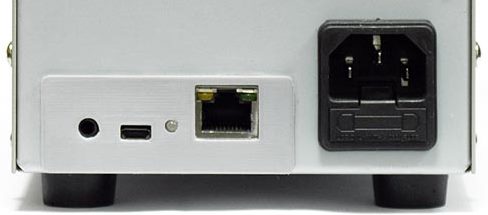

Beside the above functions APS-7306L can be remotely connected to the PC via USB or LAN.

This power supply is capable of operating in several modes:

Manual control mode. Including the use of 4 memory cells to store preset voltage and current.

Control mode with the built-in memory use.

Remote control mode to operate AKTAKOM APS-7306L DC power supply by computer via USB interface through AKTAKOM Power Manager Software. Moreover the USB interface has full galvanic isolation between the power supply and the computer.

Remote control mode to operate AKTAKOM APS-7306L programmable power supply by computer using an USB cable or LAN cable (ethernet).

Among other specifications:

• Channel: 1
• Output voltage: 0…30 V
• Output current: 0…5 A
• Output voltage inaccuracy: ±(0.5% + 20 mV)
• Output current inaccuracy: ±(0.5% + 2 mA)
• Voltage ripple & noise: 2 mV RMS.

Find more on page of Aktakom APS-7306L.
