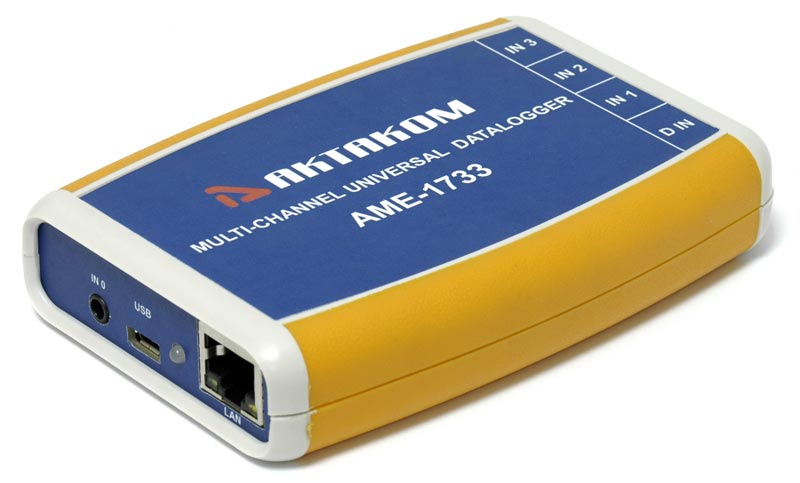

AME-1733 Multi-Channel Universal Datalogger


Measuring datalogger representing a base system block for continuous low-speed analog-to-digital conversion on several analogue input channels. Analog input channels: 3. Input terminal type: audio (stereo), diameter: 0.2 in / 3.5 mm. Input Impedance: 10 kΩ. Analog signal range: 2.048 V. Maximum input voltage: 5V. Converter digit capacity of 10 binary digits. Voltage measurement on all 3 inputs is mad simultaneously. Interval between the measurements: 0.3 ms. One digital channel (4-wire, I²C type interface). Input terminal type (construction): mini USB, there are +5 V signals in the connector, general (ground). Interfaces: USB 1.1, LAN.

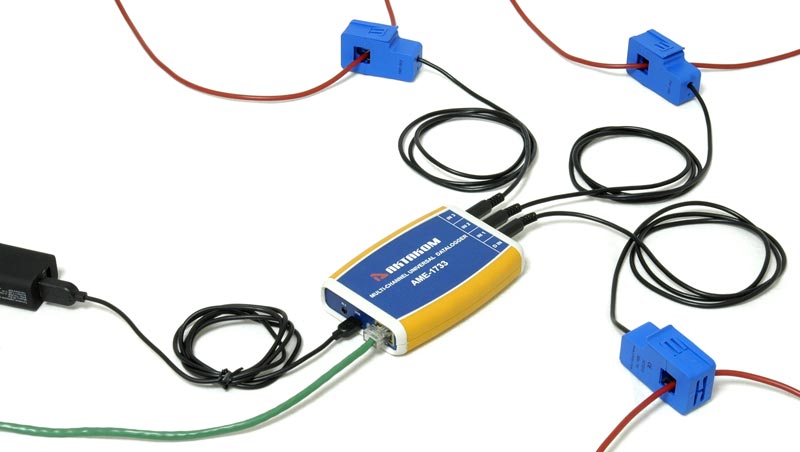

AKTAKOM AME-1733 measuring datalogger represents a base system block for continuous low-speed analog-to-digital conversion on several analogue input channels with the capability of data transferring to PC via USB and LAN. There can be different device sensors connected to analogue input via two-wire circuit with common ground. These sensors should have a voltage output. For every input there can be any sensor type taken, therefore you may construct various combined monitoring systems basing on this module.

One digital channel (4-wire, I2C type) is used to connect different external boards or sensors with digital output.

Triggering input is used to start or stop the data conversion process in the module or to form time mark during the measurement process.

AME-1733 module control and its data transferring are made through USB and LAN.

Module 5V power supply is made by the USB interface connector.

The module does not have galvanic isolation for: analog inputs, digital interface, triggering input, 5V powering and USB interface. Isolation (of the module from the PC) is implemented in LAN interface.

Technical characteristics:

Main specifications:

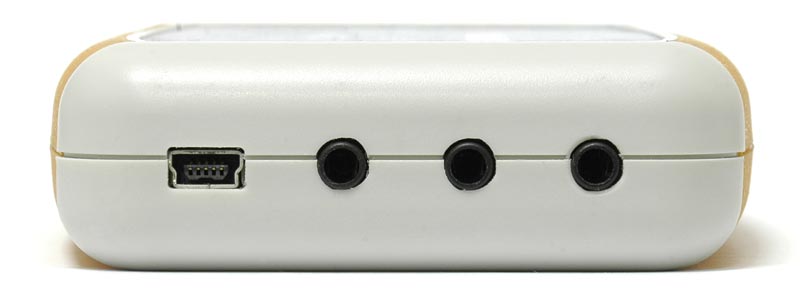

  • Analog input channels: 3
  • Input terminal type: audio (stereo), diameter: 3.5 mm
  • Input Impedance: 10 kΩ
  • Analog signal range: 2.048 V
  • Maximum input voltage: 5V
  • Converter digit capacity of 10 binary digits
  • Voltage measurement on all 3 inputs is mad simultaneously. Interval between the measurements: 0.3 ms.
  • One digital channel (4-wire, I²C type interface)
  • Input terminal type (construction): mini USB, there are +5 V signals in the connector, general (ground).

External triggering input:

  • Input terminal type: audio (stereo), diameter: 0.2 in / 3.5 mm
  • Input Impedance: 10 kΩ
  • Response level of synchronization input: 2V
  • Maximum input voltage of synchronization input: 5V

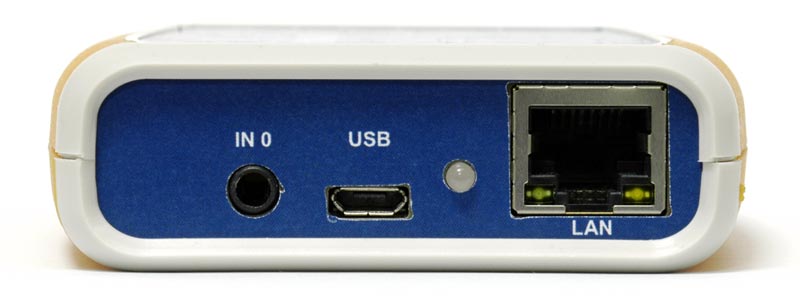

Interfaces to transfer the measured data and to control the module: USB 1.1, LAN:

  • To set up the network parameters for LAN interface operation you should use ANC program when connecting AME-1733 module via USB interface.
  • Power supply: 5V (made through the USB connector connected to the USB charger)
  • AKTAKOM AME-1733 module supports automatic identification of the main working PC connection interface
  • When you connect the module to the PC via USB connector the module identify the connection (active interface) as USB. When the module is powered by the USB connector connected to the USB charger the module identifies the connection (active interface) as LAN.

Software capabilities for AME-1733 module:

  • Digital and analogue indication of the measured value
  • Graphic and table
  • Arbitrary specification of the time scale
  • Statistics
  • Mathematical functions
  • Alarm signaling

Optional accessories

Compatible Software


AKTAKOM File Converter (AULFConverter)
AKTAKOM File Converter (AULFConverter) is an utility to convert AKTAKOM data file format used in AKTAKOM applications including APM to other formats such as CSV and WAV.
AKTAKOM USB Device Driver for Windows (AUNLibUSB)

AUNLibUSB device driver for Windows supports AKTAKOM USB Lab instruments (PC-based oscilloscopes and other). AUNLibUSB driver is a low-level program which does not communicate with user directly neither has user interface. After its installation in the operating system the driver starts working as a part of this operating system and supplies applications with the access to the resource of AKTAKOM supported devices and appropriate programs.

AKTAKOM Web Server (AULWebServer)

AULWebServer is a web interface based application (TCP/IP protocols). It allows remote control of a power supply over the local area network (LAN).

AME-173X_SDK Software Development Kit
AME-173X_SDK_Base Software Development Kit
