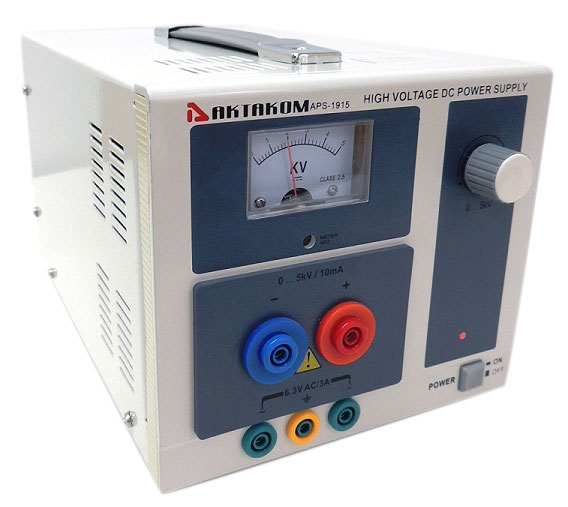

APS-1915 DC Power Supply 5kV / 10mA 1 Channel


High voltage DC regulated power supply. Power supply: 110V/220V. Output voltage: 0 ~5000V/6.3V. Output current: 10mA/3A. Display accuracy: 2.5% Full Scale. Dimensions: 5.2 x 6.3 x 10.6 in / 132 x 160 x 270 mm. Weight: 4.4 lb / 2 kg.

AKTAKOM APS-1915 is a high voltage DC regulated power supply, with continuously adjustable voltage output from 0 to Max.5kV DC. APS-1915 also has a fixed AC output 6.3V AC/ 3A (optional).

Specifications:

  • Power supply: 110V/220V
  • Output voltage: 0 ~5000V/6.3V
  • Output current: 10mA/3A
  • Display accuracy: 2.5% Full Scale
  • Dimensions: 5.2 x 6.3 x 10.6 in / 132 x 160 x 270 mm
  • Weight: 4.4 lb / 2 kg

Accessories:

  • User Manual
  • Power Cord

Order to operate AKTAKOM APS-1915 power supply

  1. 1. Press «POWER» button to switch on the device. Power on indicator should light.

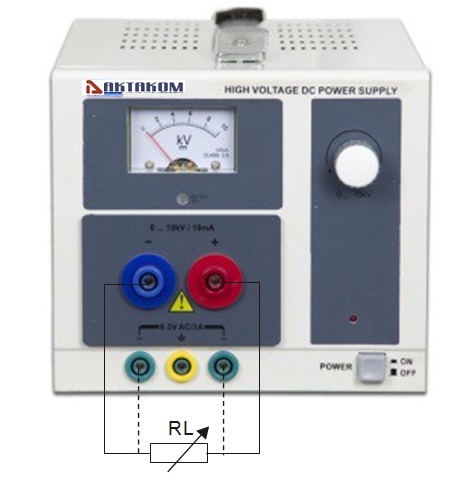

  2. Connect the load to the terminals of APS-1915 considering the polarity as it’s shown in the picture below

  3. Use the rotary switch to set the voltage value on the power supply output.

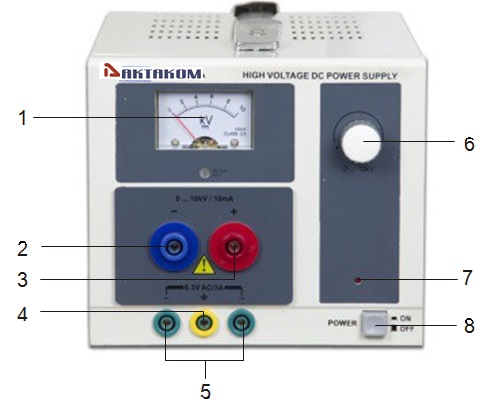

Controls of AKTAKOM APS-1915 power supply

  1. Pointer indicator of output DC voltage
  2. Output DC terminal (-): blue color
  3. Output DC terminal (+): red color
  4. Ground terminal
  5. Output AC terminals
  6. Rotary switch to regulate output voltage
  7. Power on indicator
  8. Power switch

Frequently Asked Questions

  • Can I ground one of + or - terminals when using AKTAKOM APS-1915 power supply?
  • May I use AKTAKOM power supplies to charge accumulators?

  • Can I ground one of + or - terminals when using AKTAKOM APS-1915 power supply?

    It’s not recommended to connect “+” or “-” to “ground” terminal!


    Up

    May I use AKTAKOM power supplies to charge accumulators?

    AKTAKOM power supplies can’t be used for accumulator charging since it may cause the accumulator breakage (recharge, electrolyte boiling, extra pressure of the internal gas which will lead to the accumulator explosion). Accumulators should be charged with the current source which controls the accumulator voltage and regulates the charging current accordingly. When the required accumulator voltage is achieved such type of source simply stops the charging process, its name is a charging device.


    Up
