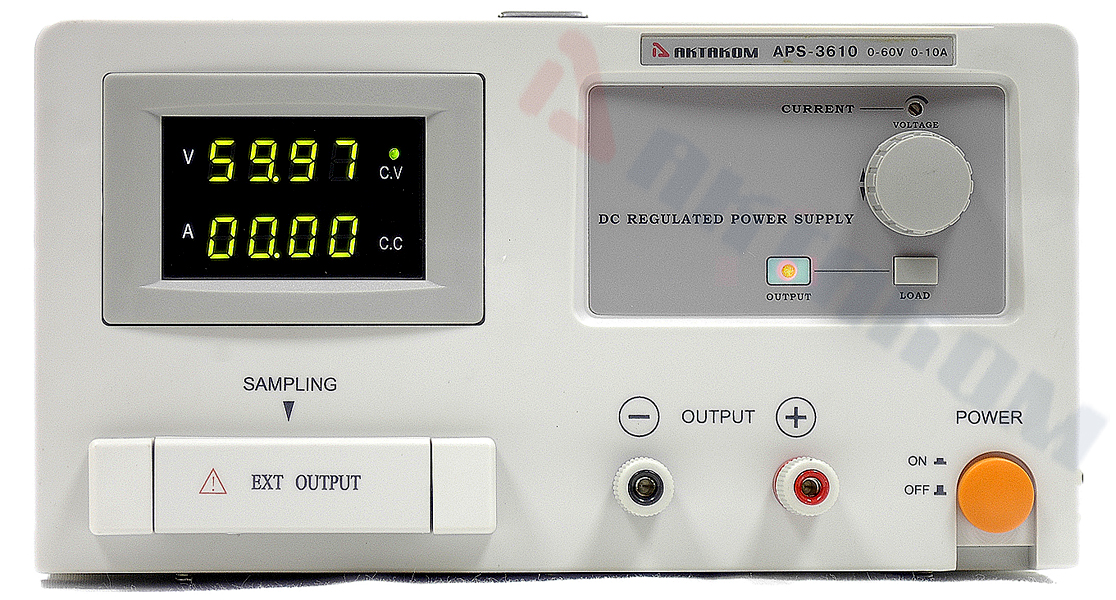

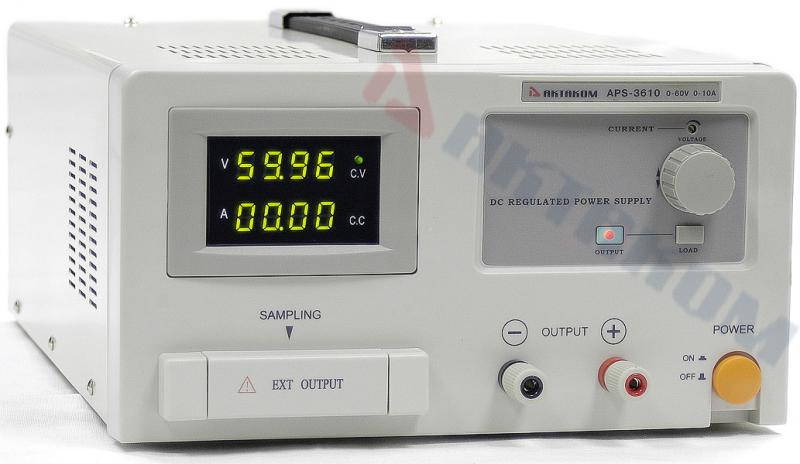

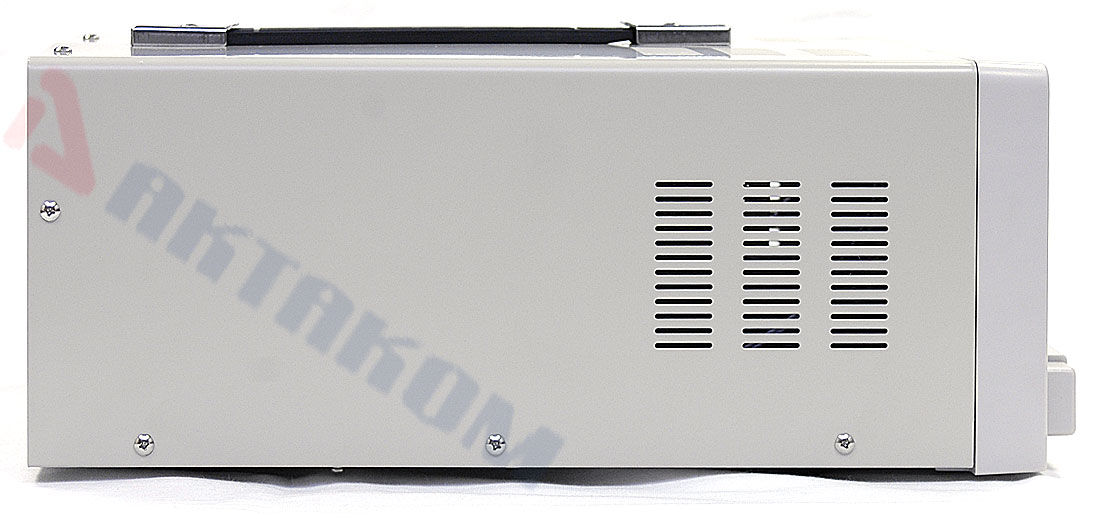

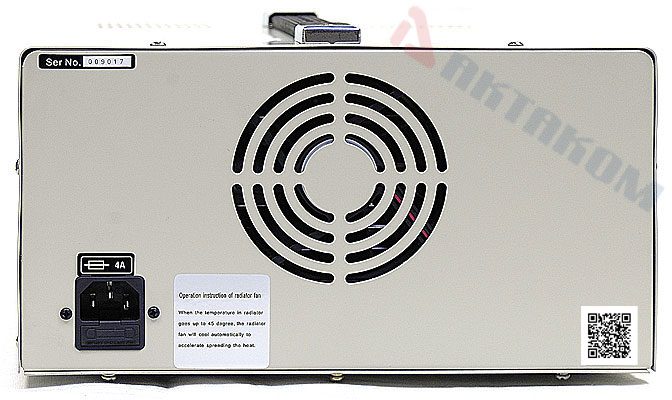

APS-3610 DC Power Supply


DC Power Supply: 60V, 10A. Line. 2 LED indicators. 1 Channel. 4-wire circuit. Ripple/noise ratio — 3mV RMS. Power on/off load. Resolution of 10mV / 10mA. Dimensions: 10.4x5.5x14.2in/265x140x360mm. Weight: 37.5lb/17kg.

DC Regulated Power Supply AKTAKOM APS-3310 provides accurate and stable DC power. It is ideal for test benches, laboratories, schools and repair facilities. The multi-turn volt­age control knob helps the user accurately dial In precise voltage. It Is easy to read digital outputs (voltage & current) through a large display accurately.

Features

  • SMD technology
  • Attractive digital display shows voltage & current
  • A cooling fan
  • High precision voltage regulation
  • Dual terminal system: Safety test style or expandable screw terminals
  • Overload protection circuit
  • Output polarity: positive or negative
  • Rugged reinforced metal frame construction
  • Ripple and Noise: 3mV rms

Specifications

  • Input Voltage: 100V/220V 50Hz/60Hz
  • Output: 60V, 10A
  • 1 Channel
  • 4-wire circuit
  • Power on/off load
  • Resolution of 10mV / 10mA
  • Output Polarity: Positive and Negative
  • Digital Display shows Voltage and Current value
  • Ripple and Noise: 3mV rms
  • Dimensions: 10.4x5.5x14.2in/265x140x360mm
  • Weight: 37.5lb/17kg

Accessories

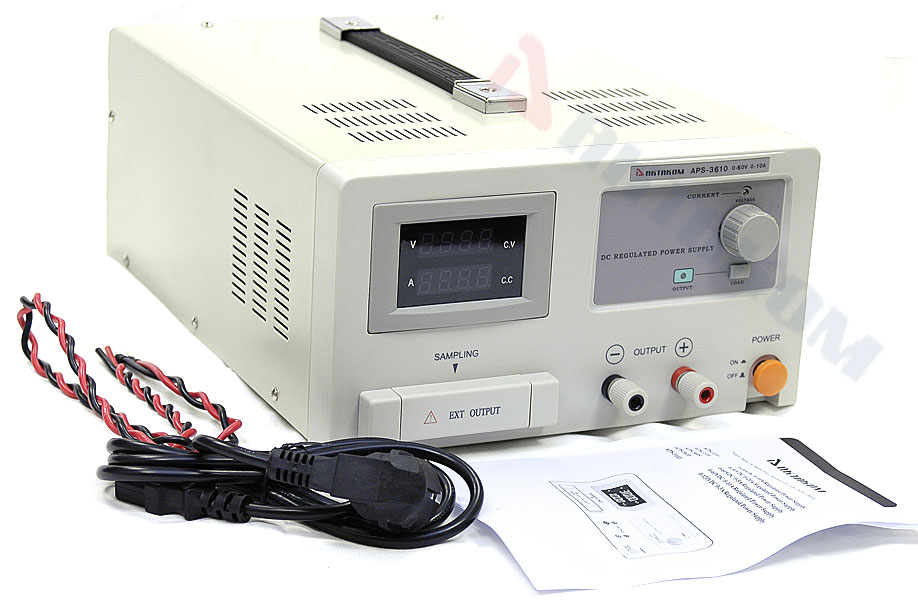

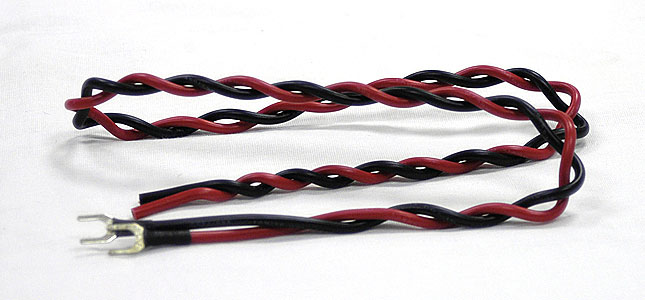

  • Pair of high power Cables with connectors

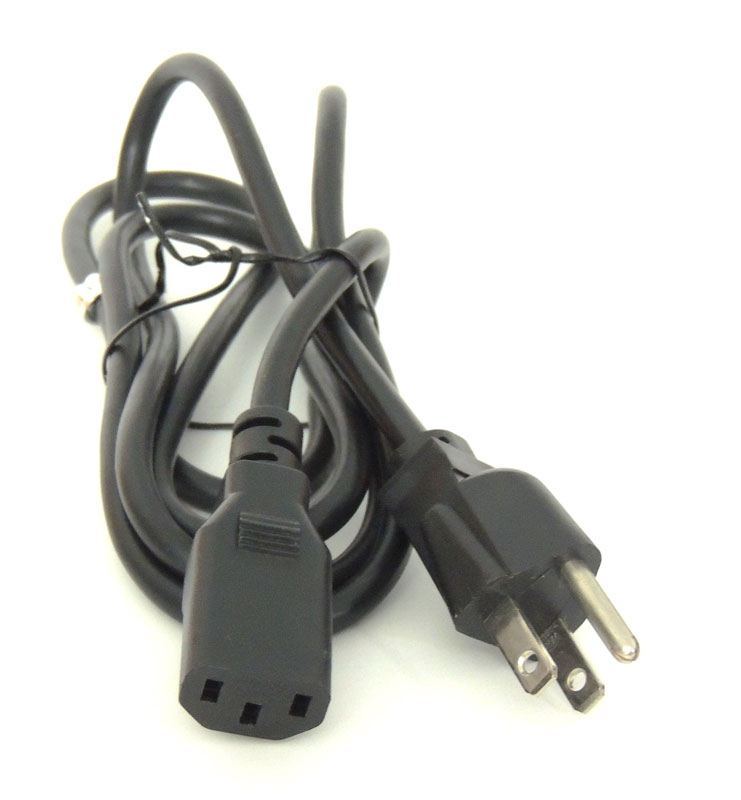

  • Power Cord

User Manual

Power supply to load four-wire connection method

The sampling terminals are used under the following conditions: if the load has a distance from the power supply, the sampling terminals may be used to compensate for the inherent when using voltage drop a longer power line.

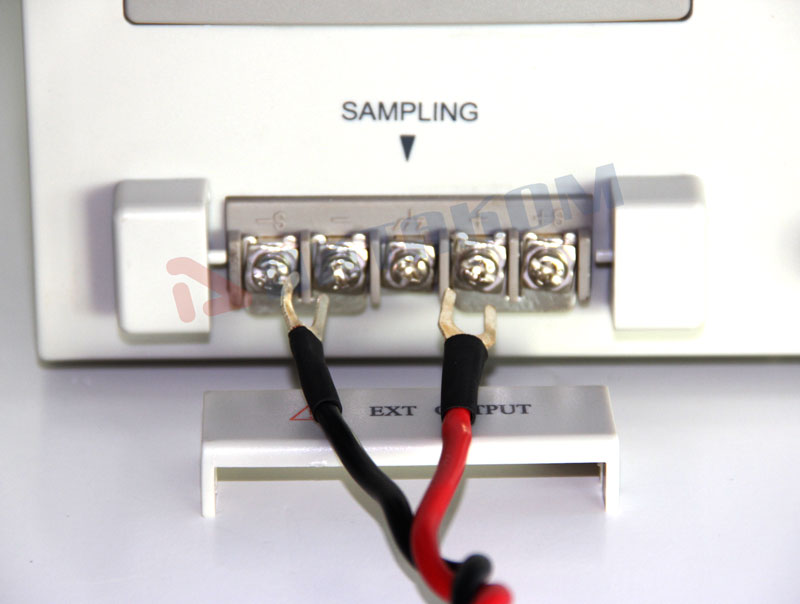

Sampling terminals connection to compensate the voltage drop:

Voltage drop compensation

Sampling connection diagram:

Attention: Disconnect the installed S- and S+ shorting wires when using the sampling connections.

Frequently Asked Questions

  • What is the maximum current consumption of APS-3610 at full load?
  • How can I work in the current stabilization mode?
  • What instruction should I follow to work in the voltage stabilization mode?

  • What is the maximum current consumption of APS-3610 at full load?

    At full load 60 V and 10 A (600 W DC) APS-3610 DC power supply consumes 110 V and 10.4 A, ie 1144 VA.
