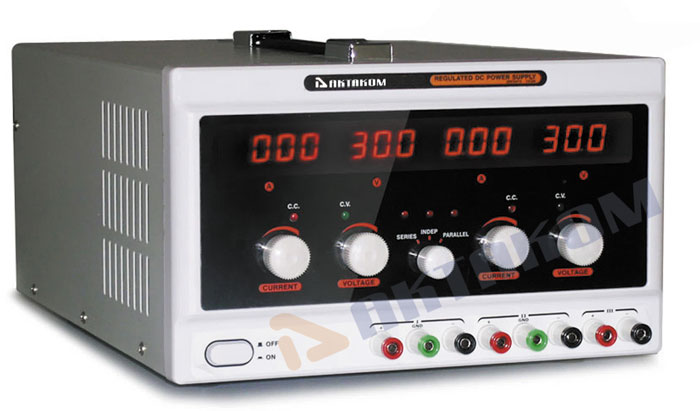

APS-3203 DC Power Supply


Double Adjustable Independed Channels + Auxiliary Channel DC power supply. Rated Output Voltage: 0~30V (Dual Channel, Adjustable). Rated Output Current: 0~3A (Dual Channel, Adjustable). Rated Output Power: 195W. 110-220V. Voltage/Current Accuracy : ±0.5%rdg+2 digits. Four LED displays. Display resolution: 0.1V (Voltage) / 0.01A (Current). Ripple And Noise: ≤1mVrms. Load Regulation (<3A): ≤0.01%+3mV. Auxiliary Power Voltage: 5V. Auxiliary Power Current: 3A. Series Parallel Working Method: series adjustable rate <300mV; Ripple and Noise <2mVrms 5Hz-1MHz. Dimensions: 405x260x160mm/15.9x10.2x6.3in

The AKTAKOM APS-3203 series is a highly reliable regulated DC power supply providing high precision and high stability. This series can be widely used in laboratories, electronics production lines, communications equipment repair. It’s a must have device for scientific research, production, teaching and other application.

Features

  • High performance and efficient Power Supply
  • All new international design
  • 0.01% High Regulation
  • Four LED displays
  • Constant Voltage and Constant Current Operation
  • Low Ripple and Noise
  • Overload and Reverse Polarity protection
  • Current Limited Lower Voltage and Short Circuit Protection
  • Powerful Strong Fan and Over Temperature Protection
  • Ideal for Educational Institutions and Research Labs
  • Nominal Voltage 110V/220V

Specifications

  • Channels: Double Adjustable Independed Channels + Auxiliary Channel
  • Rated Output Voltage: 0~30V (Dual Channel, Adjustable)
  • Rated Output Current: 0~3A (Dual Channel, Adjustable)
  • Rated Output Power: 195W
  • Voltage/Current Accuracy : ±0.5%rdg+2digits
  • Display resolution : 0.1V (Voltage) / 0.01A (Current)
  • Ripple And Noise: ≤1mVrms
  • Load Regulation (<3A): ≤0.01%+3mV
  • Auxiliary Power Voltage: 5V
  • Auxiliary Power Current: 3A
  • Series Parallel Working Method: series adjustable rate <300mV; Ripple and Noise <2mVrms 5Hz-1MHz
  • Dimensions: 405x260x160mm/15.9x10.2x6.3in

Accessories

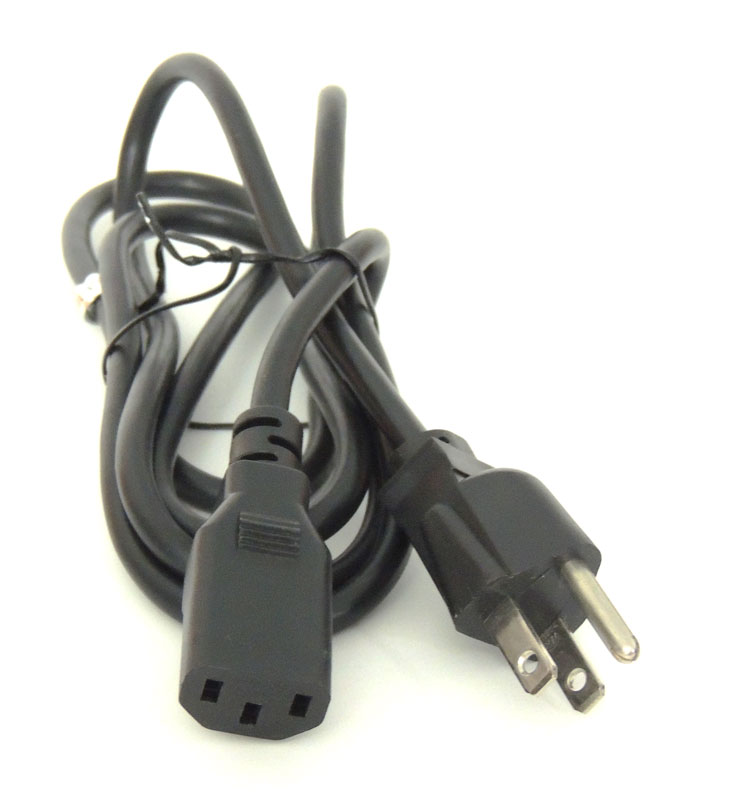

  • Power Cord

  • User Manual

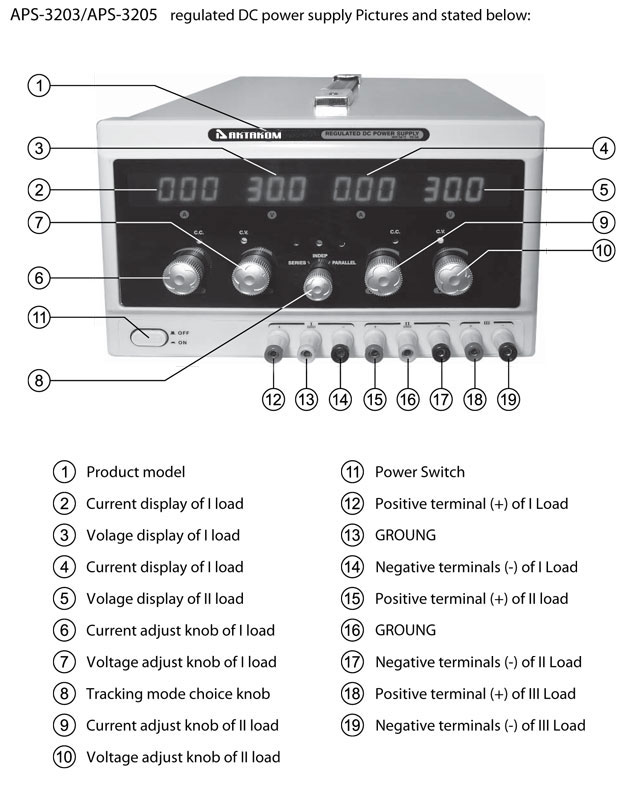

Power supply controls

Frequently Asked Questions

  • Can APS-3205 (APS-3203) power supply be used to supply the amplifiers on operational amplifiers?

  • Can APS-3205 (APS-3203) power supply be used to supply the amplifiers on operational amplifiers?

    These amplifiers require bipolar power supply +15 V.

    In APS-3205 (APS-3203) such bipolar power supply is provided by the connection of output sockets of two different channels in order to get a general output. Such a connection is very similar to the connection of two batteries to get a general power output.

    It’s recommended to choose tracking – control mode in the power unit. In that case supply voltage change will be made simultaneously in two channels of the power supply and voltage in two amplifier arms will be the same respectively.
