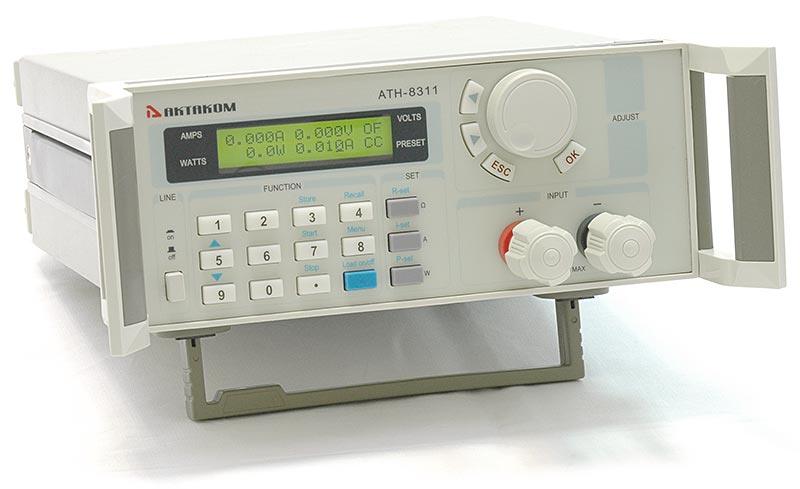

ATH-8311 Programmable Electronic Load


Programmable electronic load. Load operation modes: load current stabilization, resistance stabilization, power stabilization (limitation). Output parameters – Load voltage: 0…360 V; Load current: 0…30 A; power consumption: 300 W). Current stabilization – Setting range: 0.000…2.999 A / 3.00…30.00 A; Setting inaccuracy: (0.2%+3 mA) / (0.2%+30 mA); Setting discrecity: 1 mA / 10 mA. Resistance stabilization – Setting range: 0.01…99.99 Ω/ 100…500 Ω; Setting discrecity: 0.1 Ω / 0.01 Ω. Dimensions: 11.2 x 3.7 x 8.5 in / 285 x 95 x 215 mm. Weight: 10 lb / 4,5 kg.

AKTAKOM ATH-8311 programmable electronic load is designed to emulate various load operation modes when researching and adjusting power supplies of wireless devices with the parameters as follows:

  • supply voltage: up to 360 V,
  • load current: up to 30A,.
  • power consumption: up to 300W.

ATH -8311 electronic load is capable of emulating operation in various modes (current, voltage, power and resistance stabilization). High functionality together with PC remote control provide AKTAKOM ATH-8311 electronic load with high efficiency when testing power supplies.

Features:

  • LCD with backlight;
  • Load operation modes: load current stabilization, resistance stabilization, power stabilization (limitation);
  • Discrete setting of input parameters (with the keyboard typing directly or in step-by-step mode);
  • Protection types: overvoltage, overcurrent, overload, overheat, wrong polarity;
  • Ability to set the keyboard password;
  • Auto calibration;
  • RS-232 (TTL) interface. Galvanic isolation of the interface inside of the device is not supported.

Specifications:

Output parameters

  • Load voltage: 0…360 V;
  • Load current: 0…30 A;
  • power consumption: 300 W.

Current stabilization

  • Setting range: 0.000…2.999 A / 3.00…30.00 A;
  • Setting inaccuracy: (0.2%+3 mA) / (0.2%+30 mA);
  • Setting discrecity: 1 mA / 10 mA.

Resistance stabilization

  • Setting range: 0.01…99.99 Ω/ 100…500 Ω;
  • Setting discrecity: 0.1 Ω / 0.01 Ω.

Power limitation

  • Setting range: 0…300 W;
  • Setting discrecity: 0.1 W.
  • Supply: 110 V/220 V;
  • Dimensions: 11.2 x 3.7 x 8.5 in / 285 x 95 x 215 mm;
  • Weight: 10 lb / 4,5 kg.

Accessories:

  • Electronic load
  • Power cable
  • User manual
