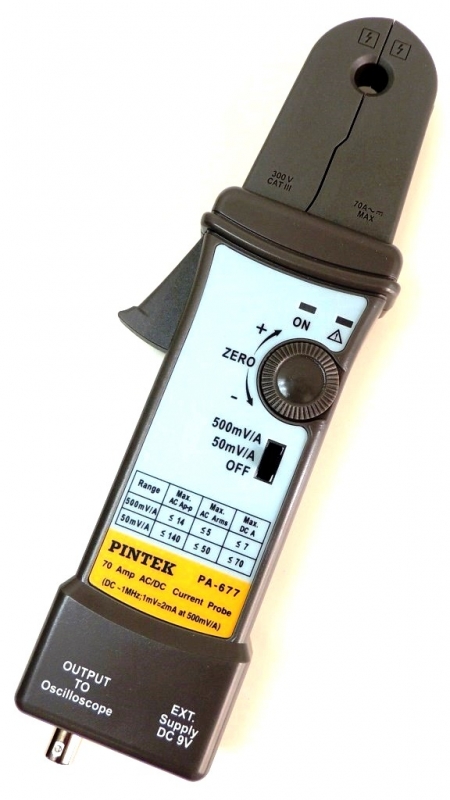

PA-677 Current Probe


Max. DC A Current: ± 70A DC. Max. AC A Peak: 140A p-p. Max. AC A RMS: 50Arms. Frequency Range: DC to 1MHz (-3dB). Max. Sensitivity: 2mA. Battery Type: 9V.

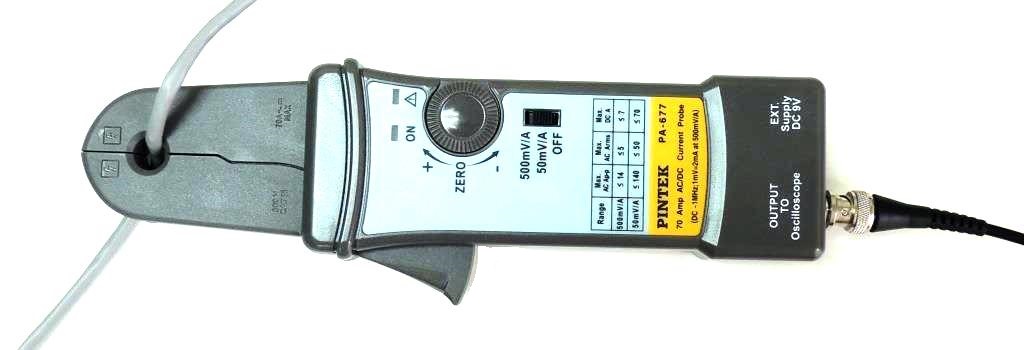

The PA-677 current probe enables a general purpose oscilloscope to display AC and DC current signals up to 70 A Peak (50A RMS). The PA-677 current probe can also make AC and DC measurements with a multimeter by using the recommended accessory (BNC-to-banana) plug adapter.

Features

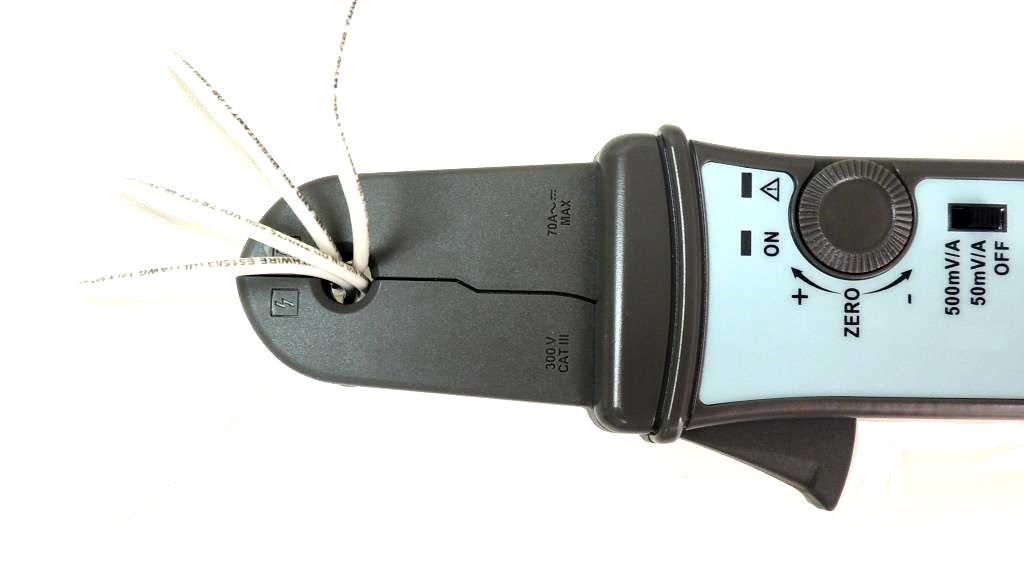

  • High sensitivity of 2mA
  • Wide AC bandwidth up to 1MHz
  • Low noise (about 1/3 lower than competitors)
  • Dual power: AC adaptor for indoor, batteries for outdoor applications
  • Detachable output wire — convenient for packing, storing and self examination for any damages

Specifications

Max. DC A Current± 70A DC
Max. AC A Peak140A p-p
Max. AC A RMS50A rms

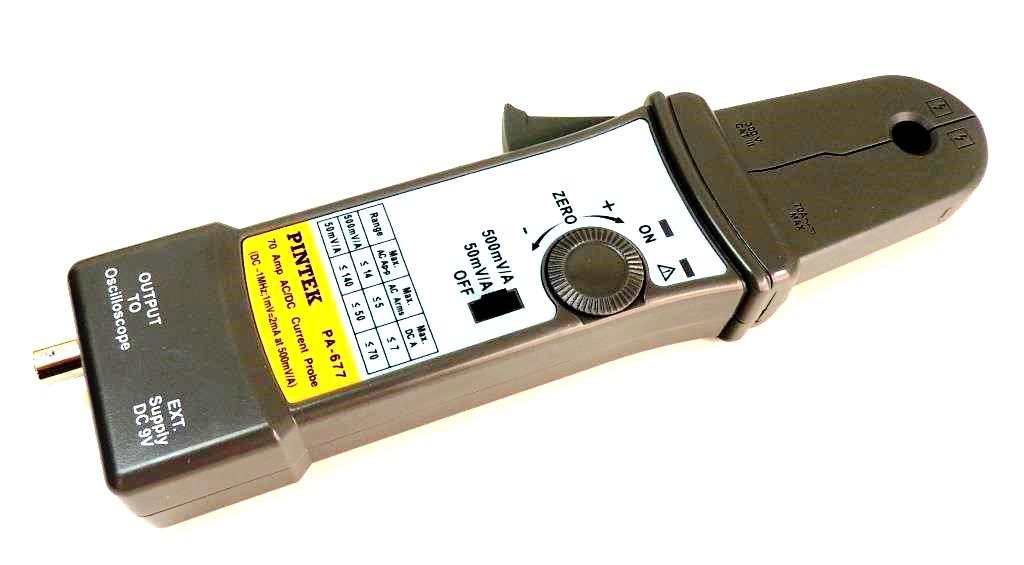

Range Selection
Division
2 Range
20mV/A;500mV/A
Max. Sensitivity500mA
DC Accuracy Typical±3% ±20mA at 500mV/A
(20 mA to 14A peak range)
±4% ±200mA at 50mV/A
(200mA to 100A peak range)
±15% max at 50mV/A
(100A peak to 140A peak range)
Frequency RangeDC to 1MHz (-3dB)
Rise Time0.35μs (Typ.)

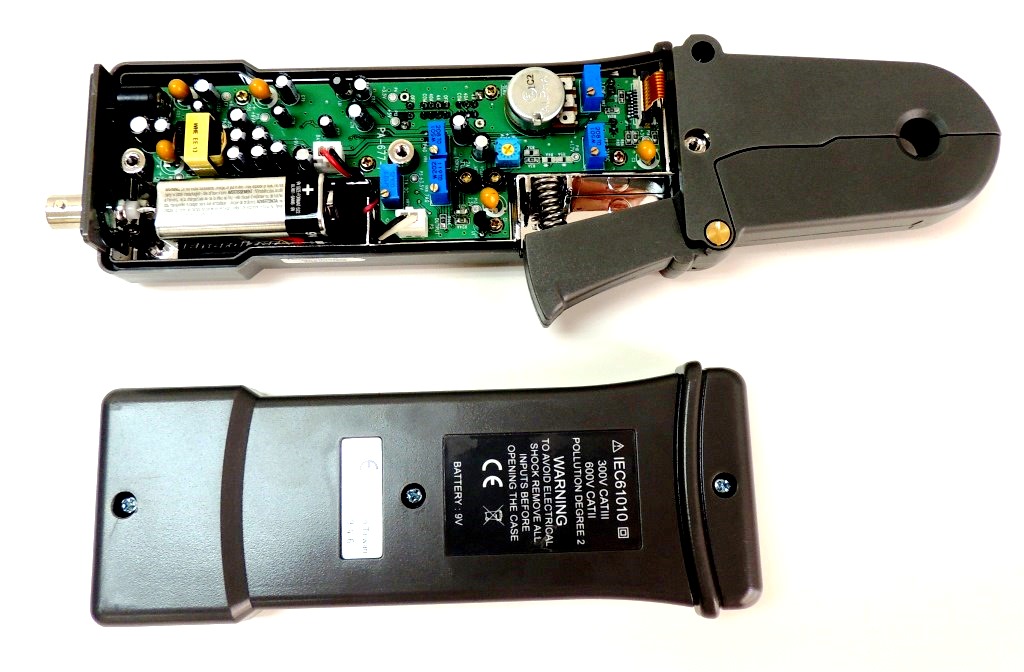

Battery Type and Life, typical9V NEDA 1604A, IEC 6LR61
8 hours minimum (1 each)
Max. Working Voltage
Max Floating Voltage
600V CAT III
600V CAT II
Cable Length 100 cm (3.3 feet)
Maximum Conductor Size 11 mm (0.43 inch)
Weight260 g (9.5 oz) (without battery)

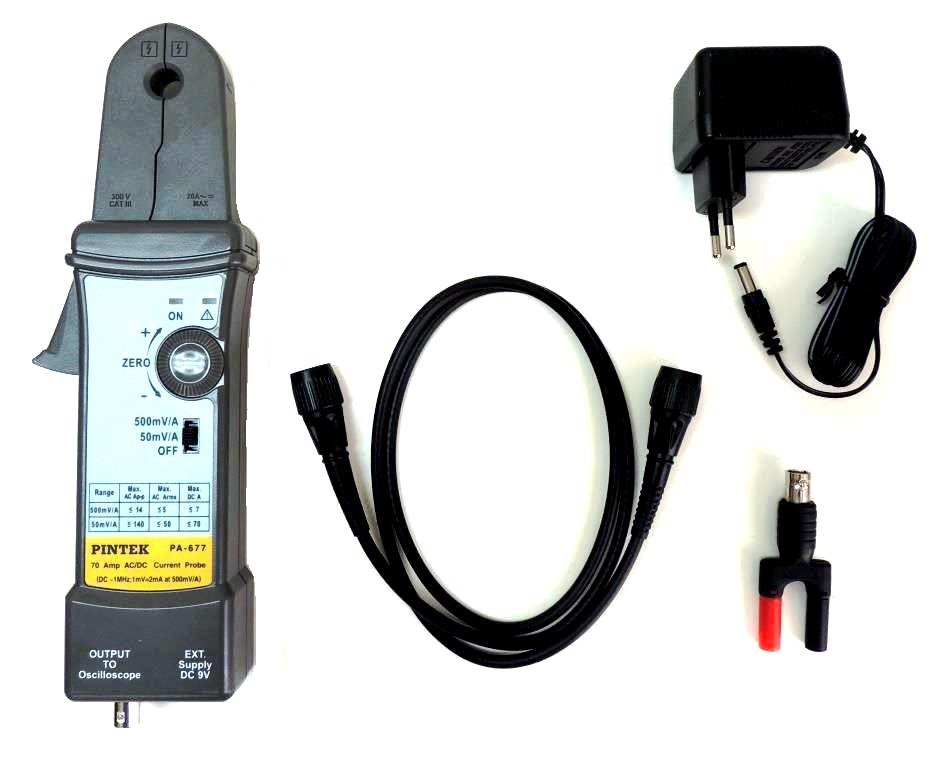

Accessories

  • An Insulated BNC/BNC lead, length 100cm
  • AC Adapter
  • Connector BNC to Banana
  • Instruction Manual
