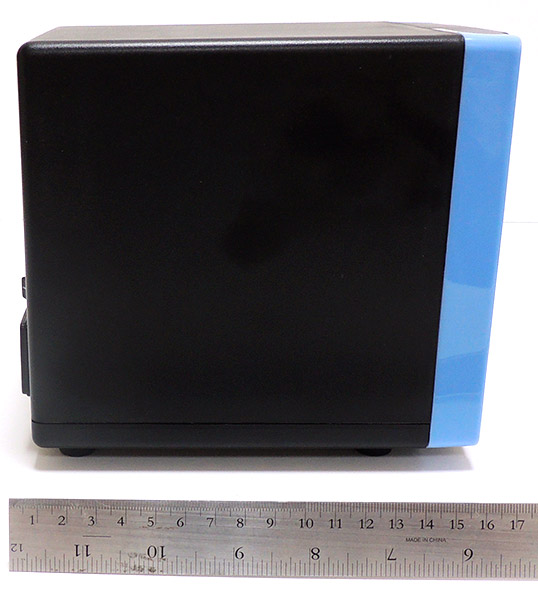

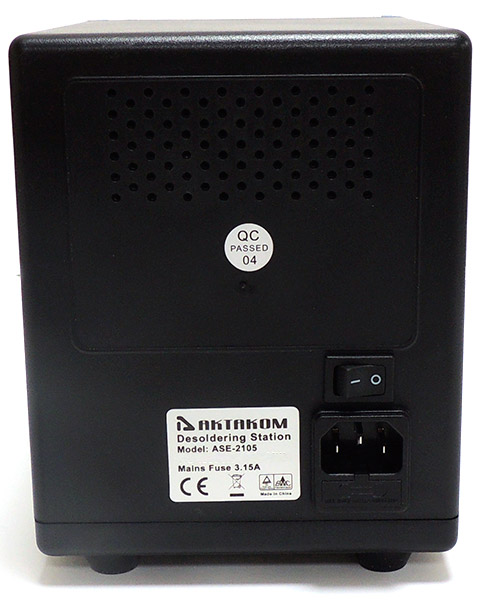

ASE-2105 Temperature Controlled Desoldering Station


Temperature controlled desoldering station is designed for lead free desoldering. Touch sensor control; max. station power: 150W; temperature range: 160°C - 480°C; max power of the soldering iron: 90W.

ASE-2105 Temperature controlled desoldering station is designed for lead free desoldering especially. The quick heating and strong power are for convenient and clear soldering / desoldering all types of DIP components.

This model is used in the field of electronic research, teaching and production, especially in the repairing and desoldering on the electronic appliances and communication equipment.

The desoldering iron gun is controlled automatically by the micro-processor. The digital control electronics and high-quality sensor and heat exchange system guarantee precise temperature control at the soldering tip. The highest degree of temperature precision and optimal dynamic thermal behavior under load conditions is obtained by the quick and accurate recording of the measured values in a closed control circuit, and this design is especially for the lead-free production technics.

Specifications

  • Channel: 1 channel
  • Touch sensor control
  • Max. station power: 150W
  • LCD:
    - shows the actual temperature of the soldering tip
    - shows the setting temperature
  • Temperature range: 160°C - 480°C
  • Max. power of the soldering iron: 90W
  • Soldering iron voltage supply: 24V

Accessories

  • Desoldering iron with nozzle
  • Iron holder
  • Tray for iron holder
  • Cleaning sponge
  • Filter for desoldering iron
  • Cleaning pin
  • Power cord
  • User's manual

The display and temperature setting

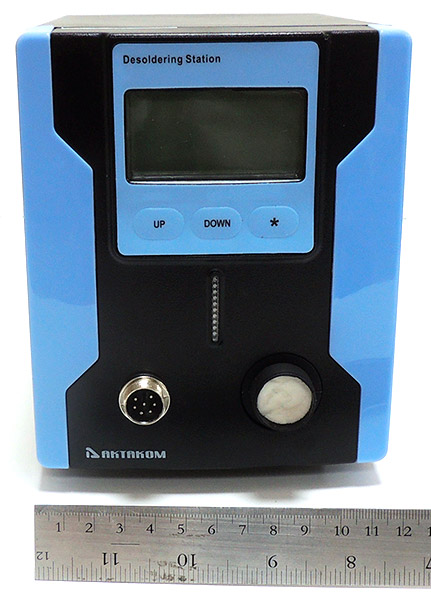

AKTAKOM ASE-2105 Desoldering station digital display

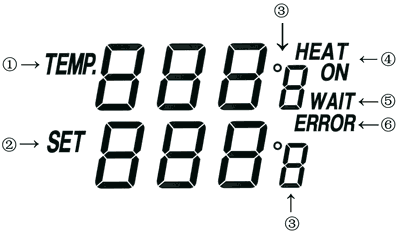

The digital display:

(1) shows the actual temperature of the desoldering tip.

(2) shows the setting temperature: Pressing the “UP” or “DOWN” button can switch the digital display to the set point display. The set-point can be changed for ±1°C by tapping the “UP” or “DOWN” button. Pressing the button will change the set-point quickly. The digital display will return automatically to the actual value and the iron will reach to the setting temperature quickly.

(3) display: switching the temperature display from °C to °F by pressing the “*” button and then the electronic system will display the actual temperature (1) and setting temperature (2) in °F, and vice versa.

(4) When the actual temperature on the soldering tip is less than the set-point, “HEAT ON” will display and make the desoldering tip heating up.

(5) When the absolute offset is more than ±10°C between the actual temperature and the set-point on the soldering tip or the nozzle, “WAIT” will display. It means that the temperature electronic control system is not in the stable situation, we should wait a moment to let the “WAIT” disappear.

(6) When “ERROR” display, there may be a trouble on the system, or the soldering iron is not connected to the control system correctly.

Using desoldering gun

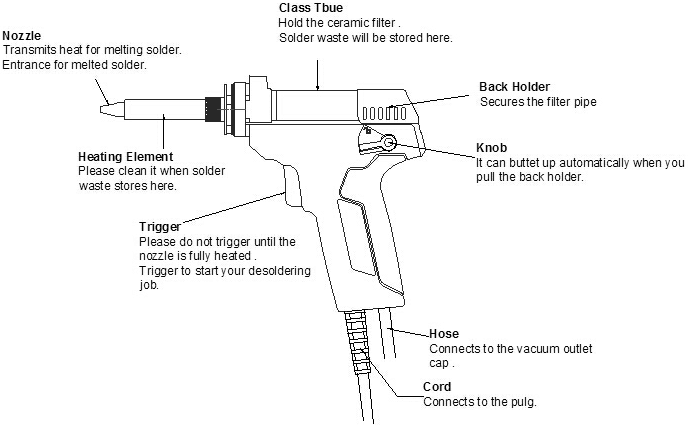

ASE-2105 desoldering gun

WARNING!

1. Maintain the heated desoldering gun carefully, the high temperature gun will cause fires or painful burns to the body if you are not careful.

2. Always disconnect the mains plug to a socket before any maintenance performance except you do the solder waste removing on the heater and nozzle.

Solder waste will be stored in the nozzle and heating element. These solder waste will lower the heating process and reduce the suction efficiency. Should there be a noticeable drop in suction efficiency during operation, please replace the filter and clean the nozzle and heater with the cleaning pin.

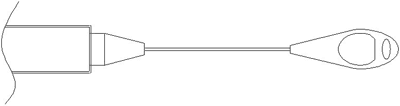

ASE-2105 cleaning pin

Please follow below steps to remove the solder waste:

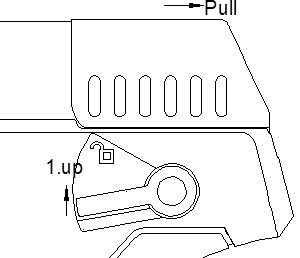

1. Pull the back holder, then the knob will bullet up and become unlocked automatically.

ASE-2105 desoldering gun

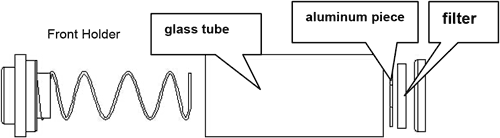

2.Take the spring out from the glass tube, then remove the solder waste.

Removing solder waste

3. Put the spring back to glass tube, then put glass tube back to position.

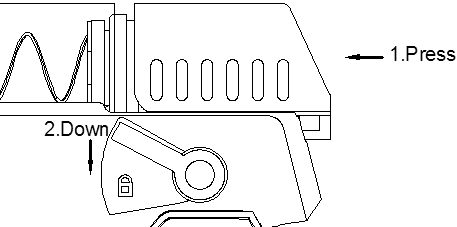

Press the back holder, then the knob will bullet down and become locked automatically.

ASE-2105 desoldering gun

CAUTION!

The Nozzle hole will get enlarged with corrosion, but such phenomenon can not be noticed easily. Therefore, if desoldering efficiency goes down and all other parts appear to be OK, the nozzle is probably eroded and should be replaced.

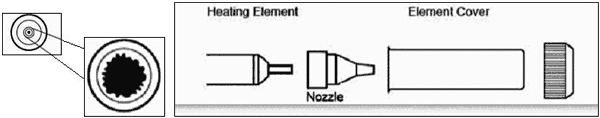

Nozzle
