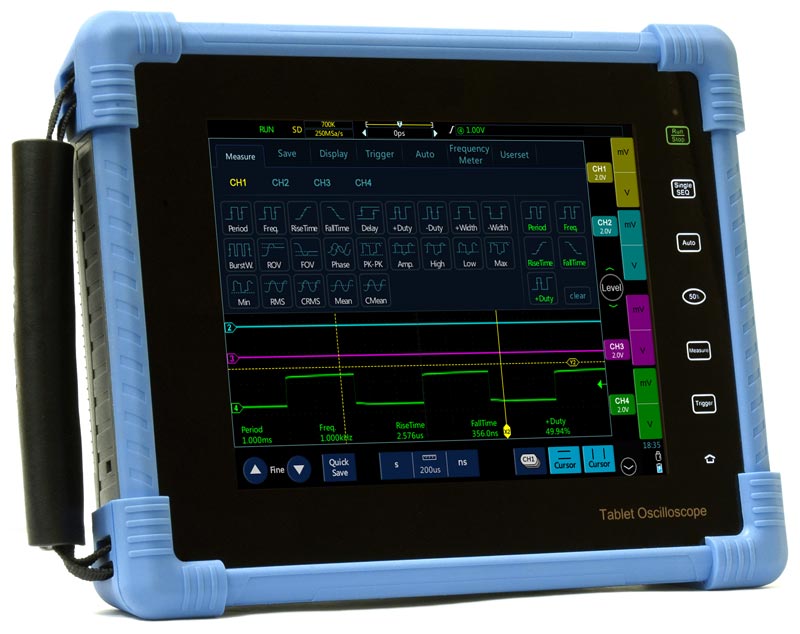

ADS-4604T Tablet Oscilloscope

Ergonomic design and excellent performance features. Multi-touch 8” TFT display, high resolution (800*600), 256 intensity levels. 4 channels. 100 MHz bandwidth. 28 Mpts memory depth. 1 GSa/s. 80000 wfm/s. Dimensions: 9.8 x 8.3 x 2.2 in / 250 x 210 x 55 mm. Weight: 2.5 lb / 1.13 kg

Aktakom ADS-4000T series tablet oscilloscopes comparing to traditional oscilloscope models will make your work much simpler due to its compact design and excellent performance features.

Using multi-touch display you will easily select a channel, control the cursors, zoom the waveform and save it into the internal memory with your finger touch.

Features:

  • Multi-touch 8” TFT display
  • Embedded 6 digit frequency meter
  • Auto measurements
  • Cursor measurements
  • Wide range of interfaces for the oscilloscope control and data storage
  • Built-in 8G storage capacity (data can be saved to a USB driver)
  • Ability to connect a computer mouse
  • Ergonomic design
  • Rechargeable Li-Ion battery (7.4 V 7500 mA*h)

Specifications:

  • Channel: 4
  • Multi-touch 8” TFT display, high resolution (800*600), 256 intensity levels
  • Bandwidth: 100 MHz
  • Sample rate: 1 GSa/s
  • Memory depth: 28 Mpts
  • Max. capture rate: 80000 wfm/s
  • ADC: 8 digits
  • Vertical deviation coefficient: 1 mV/div – 10 V/div
  • Triggering types: Edge, Pulse, Logic, Time Out, Dwart PW, Slope, N Edge, and Video
  • Auto measurements: Period, Frequency, Rise time, Fall time, +Duty, -Duty, Delay (CH1 → Math, CH2 → Math, CH1 → CH2, CH2 → CH1), +Pulse width, -Pulse width, Burst width, +Overshoot, -Overshoot, Phase (CH1 → Math, CH2 → Math, CH1 → CH2, CH2 → CH1), Peak-Peak, Amplitude, High, Low, Max, Min, Mean, Cycle Mean, RMS, cycle RMS
  • Cursor measurements: manual (ΔV, ΔT, 1/ΔT)

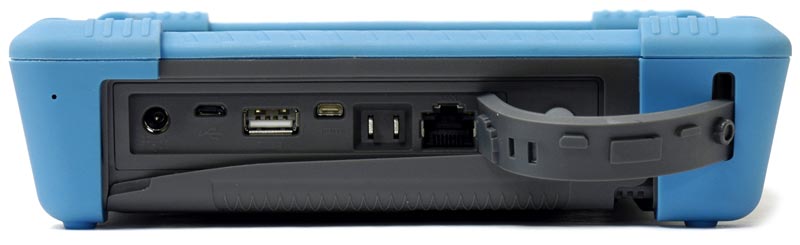

  • Interfaces: USB 2.0, microUSB 2.0, LAN, microHDMI, Pass/Fail
  • Dimensions: 9.8 x 8.3 x 2.2 in / 250 x 210 x 55 mm
  • Weight: 2.5 lb / 1.13 kg
