ATK-2209 Clamp Meter


Multifunctional clamp meter for measurement of active, reactive and full power values in three-phase circuit of three- or four wires, balanced termination three-phase circuit, one-phase circuit of two- or three wires. AC/DC voltage measurement: 2 mV...600 V, resolution from 0.1 mV. Input impedance: 3 MΩ . Alternating current measurement: 10 mA...1000 A (40...400 Hz). Direct current measurement: 0.20 µA...1000 µA. Current and voltage True RMS measurement. Resistance measurement: 0.1 Ω...100 MΩ, resolution from 0.1 Ω. Diode test (continuity <40 mV) up to 2 V. Dimensions: 9.7 x 3.4 x 1.6 in / 247 x 87 x 40 mm. Weight: 1.03 lb / 465 g.

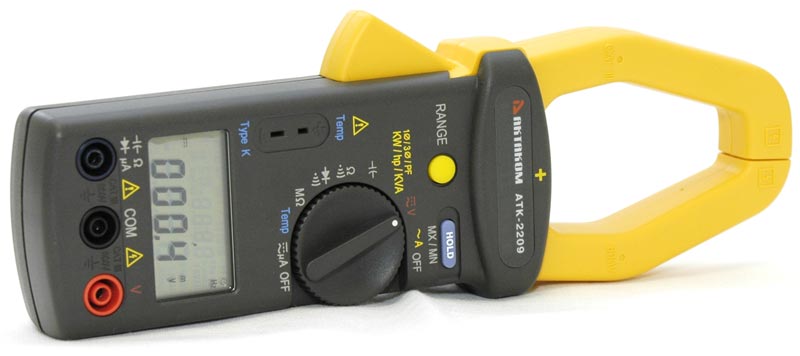

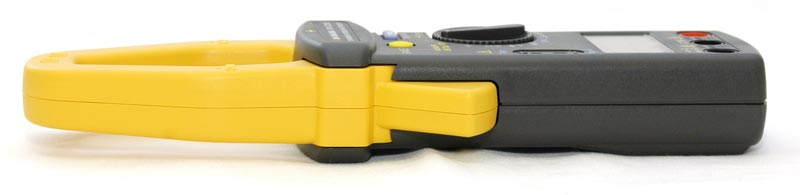

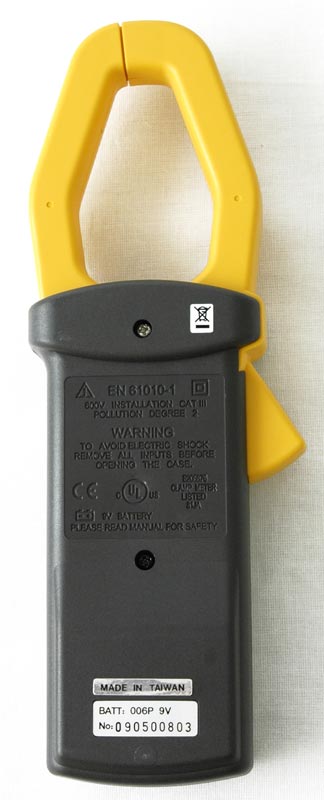

AKTAKOM ATK-2209 is a multifunctional clamp meter which allows you to measure the value of active, reactive and full power in three-phase circuit of three- or four wires, balanced termination three-phase circuit, one-phase circuit of two- or three wires.

Specifications:

  • AC/DC voltage measurement: 2 mV...600 V, resolution from 0.1 mV
  • Input impedance: 3 MΩ
  • Alternating current measurement: 10 mA...1000 A (40...400 Hz)
  • Direct current measurement: 0.20 µA...1000 µA
  • Current and voltage True RMS measurement
  • Active, reactive and full power measurement in one- and three-circuits at the range of up to 600 kW, resolution from 10 W.
  • Power factor calculation: cos φ
  • Resistance measurement: 0.1 Ω...100 MΩ, resolution from 0.1 Ω
  • Diode test (continuity <40 mV) up to 2 V
  • Phase angle: –60°...+ 60° (50/60 Hz), resolution: 0.1°
  • Frequency measurement: 40 Hz...1 kHz, resolution: 0.1 Hz
  • Capacity measurement: up to 7000 µF, resolution from 1 nF
  • Temperature measurement (K-type thermocouple) –50...900 °C
  • Simultaneous displaying of 2 parameters
  • Data hold, hold of min./max. values
  • Auto selection of measurement limits
  • 4 digit display
  • Display auto power off
  • Battery low charge indication
  • Overload indication
  • Current consumption: 25 mA
  • Battery: 9V
  • Operation temperature: 41…104 °F / 5...40 °С
  • Grip diameter: 1.7 in / 42 mm
  • Dimensions: 9.7 x 3.4 x 1.6 in / 247 x 87 x 40 mm
  • Weight: 1.03 lb / 465 g

Accessories:

  • Connecting leads (red and black)
  • Alligator clips
  • Battery
  • Carrying case
  • User manual
