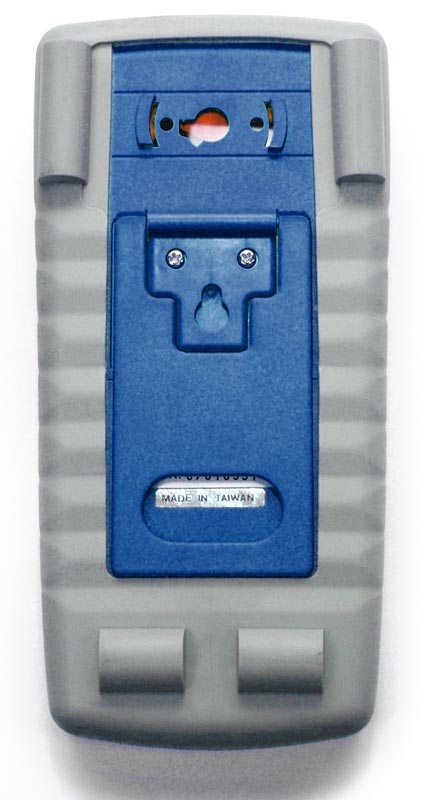

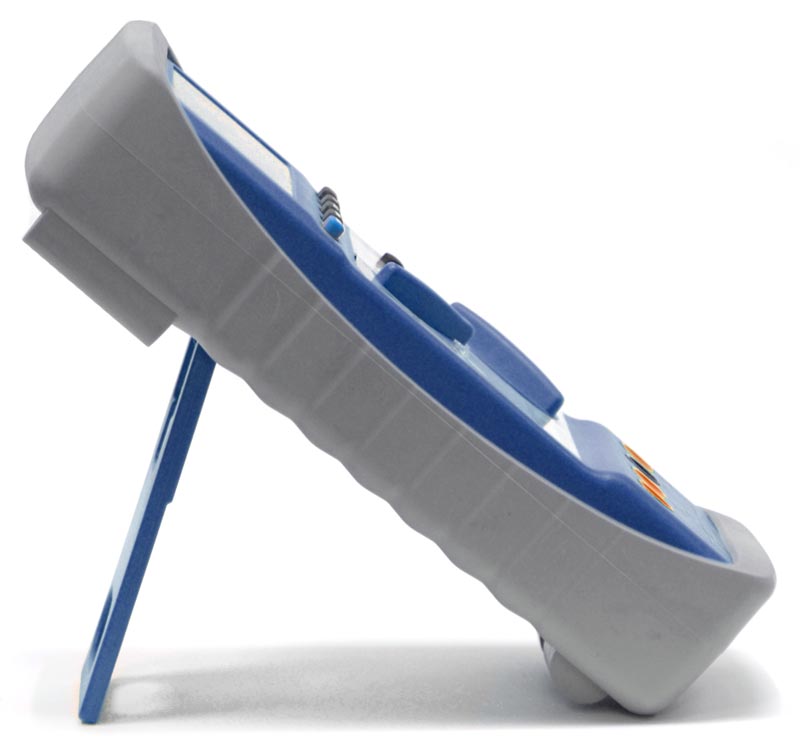

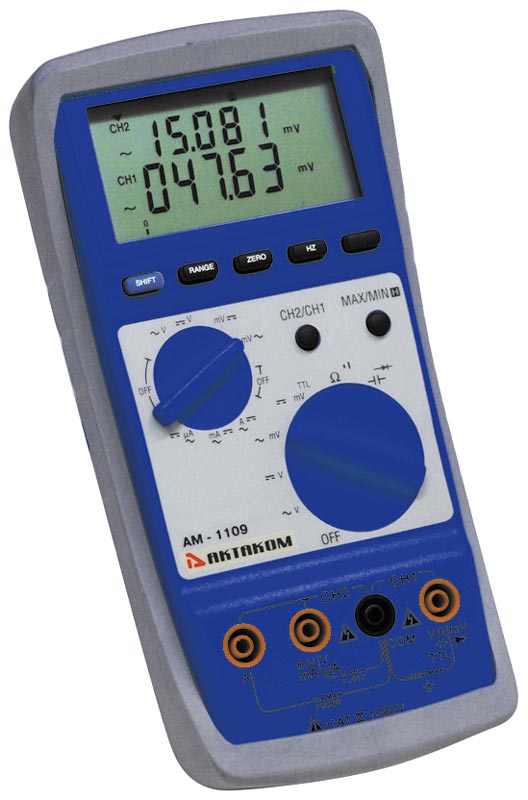

AM-1109 Digital Multimeter


Digital multimeter. 2 Channels. DC voltage: 1 µV...1000 V, 1 µV with 0,06% inaccuracy; AC voltage (20 Hz...200 kHz): 1 µV...1000 V, 1 µV with 0,1% inaccuracy; Direct current: 10 nA...10 A, 10 nA with 0,1% inaccuracy; Alternating current (45 Hz...20 kHz): 10 nA...10 A, 10 nA with 0,3% inaccuracy.60000 digit display (45/6 digits). High performance graphic scale: 30 segments. Voltage/current True RMS measurement. Max. and min. values record. Values hold (HOLD). RS-232 port with galvanic isolation. Sound continuity test. p–n junction test. Dimensions: 8.2 x 4 x 1.9 in / 207 x 101 x 47 mm; Weight: 15.2 oz / 430 g.

Comparing to other multimeters AKTAKOM AM-1109 multimeter has 2 channels that allow taking measurements of 2 values simultaneously. Earlier it was required to measure every single value in turn or there were 2 devices required, now this multimeter makes your work significantly easier. This capability is very useful especially for cell phones repair (e.g. you may control the charge-discharge difference of its accumulator). True RMS measurement capability allows AM-1109 multimeter to correctly measure distorted and nonsine signals. High performance graphic scale availability in AM-1109 digital multimeter allows controlling the changing dynamics of the values under measurement.

Specifications:

  • 60000 digit display (45/6 digits)
  • High performance graphic scale: 30 segments
  • Voltage/current True RMS measurement
  • 2 measurement channels
  • Max. and min. values record
  • Values hold (HOLD)
  • RS-232 port with galvanic isolation
  • Sound continuity test
  • p–n junction test
  • Manual/automatic selection of measurement limits
  • Power supply: 9 V battery 6LR61, MN1604
  • Consumption: 6 mA
  • Dimensions: 8.2 x 4 x 1.9 in / 207 x 101 x 47 mm
  • Weight: 15.2 oz / 430 g
Value under measurement Range Resolution Inaccuracy

DC voltage

1 µV...1000 V 1 µV 0,06%

AC voltage (20 Hz...200 kHz)

1 µV...1000 V 1 µV 0,1%

Direct current

10 nA...10 A 10 nA 0,1%

Alternating current (45 Hz...20 kHz)

10 nA...10 A 10 nA 0,3%

Resistance

0,01 Ω...40 MΩ 0,01 Ω 0,09%

Capacity

10 pF...1000 µF 10 pF 0,8%

p–n junction test

0...3 V 0,1 mV 2%

Frequency (TTL level)

1 Hz...2 MHz 0,0001 Hz 0,005%

Frequency (sine signal)

1 Hz...200 kHz 0,0001 Hz 0,02%

Duty factor

0,001%...100% 0,001%

Frequently Asked Questions

  • Does AKTAKOM AM-1109 multimeter have auto power off function?

  • Does AKTAKOM AM-1109 multimeter have auto power off function?

    No, there is no such a function in AM-1109.
